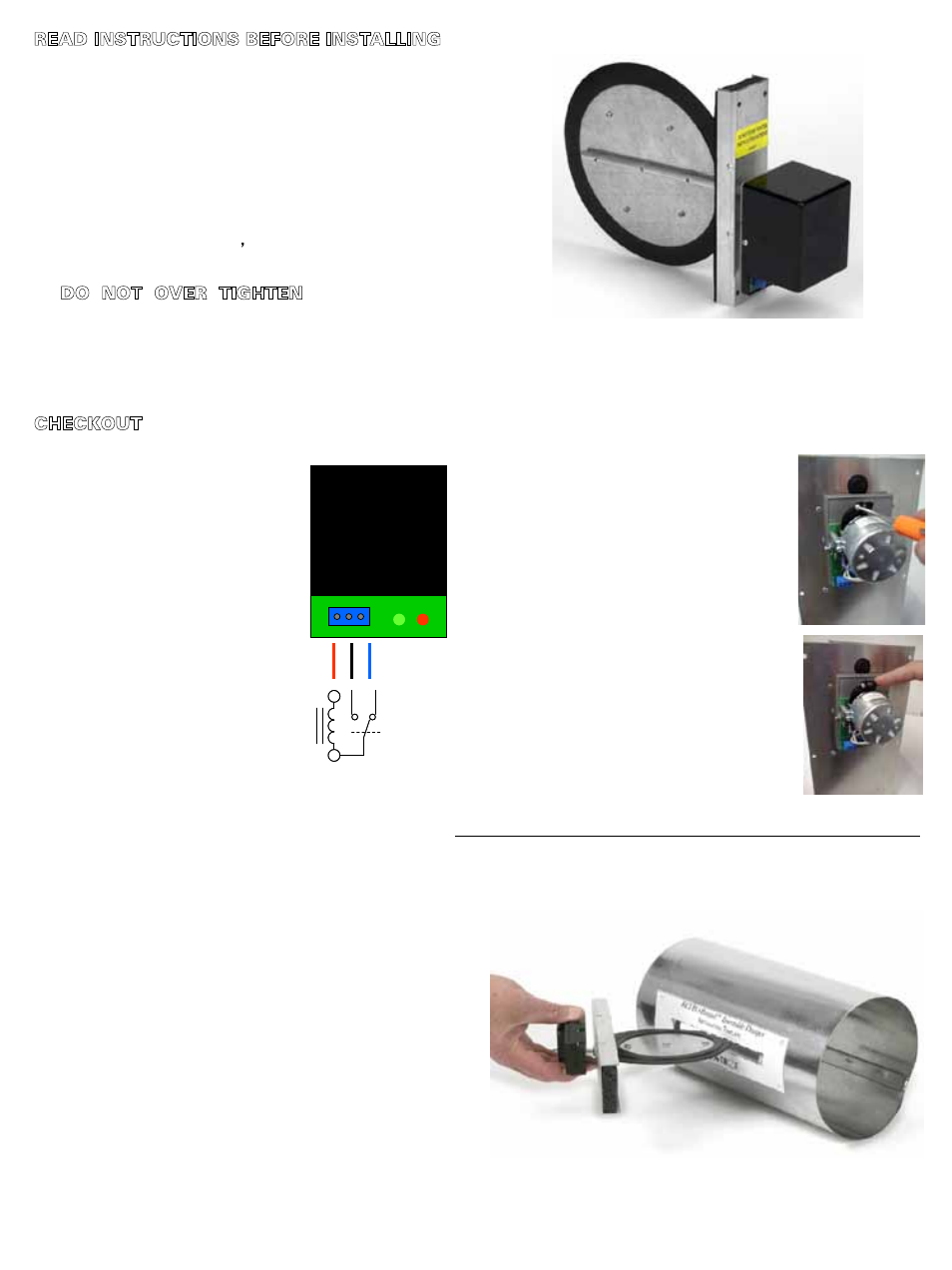

Braeburn Round Retrofit Damper - Manual

RetroFIT Round
Installation Instructions
The Retrofit Round Damper is complete with Installation
Mounting Template and four mounting screws.
READ INSTRUCTIONS BEFORE INSTALLING
HELPFUL HINTS
• When installing multiple dampers, before
installing all dampers, wire each damper
individually and cycle to confirm damper
operation.
• Ensure all ducts are round and the damper
can move feely from open to closed once inside
the duct.
• Ensure the damper s u-frame is in-line with
the center of the duct.
• DO NOT OVER TIGHTEN the screws when
securing the damper to the duct. Make sure
the U-Channel seal and ends just meet the
outside of the duct.
CHECKOUT
To checkout the operation of the
dampers place 24V across terminals
M1 and M4, the damper will open
and the Green LED will light at the
end of the cycle. Place 24V to
terminals M1 and M6 and the
damper will close and the Red LED
will light at the end of the cycle. All
dampers are 100% factory tested.
TROUBLESHOOTING
After performing the checkout of
the damper, check the motor
terminals for 24V across terminals M1
and M4 if the damper is supposed
to be open, and M1 and M6 if the
damper is to be closed. If power is
not at the proper terminals, check
the wiring and control panel for
power.
M1 M4 M6 OPEN CLOSE
C
R
C
O
M
M
ON
OP
E
N
C
LOSE
24
V
ol
ts
A
C
SPDT Switch
M1 M4 M6 OPEN CLOSE
C
R
C
O
M
M
ON
OP
E
N
C
LOSE
24
V
ol
ts
A
C
SPDT Switch
Minimum Position Adjustment
The damper travel can be set to a
Minimum and Maximum position. To
adjust these positions, remove the two side
screws holding the black cover and
remove. See the photos at right and
above the motor there are two cams and
a set screw. Loosen the set screw and
move the cams to adjust to a Min/Max
position and re-tighten set screw.
