Braeburn Bypass Damper - Manual (Page 2)

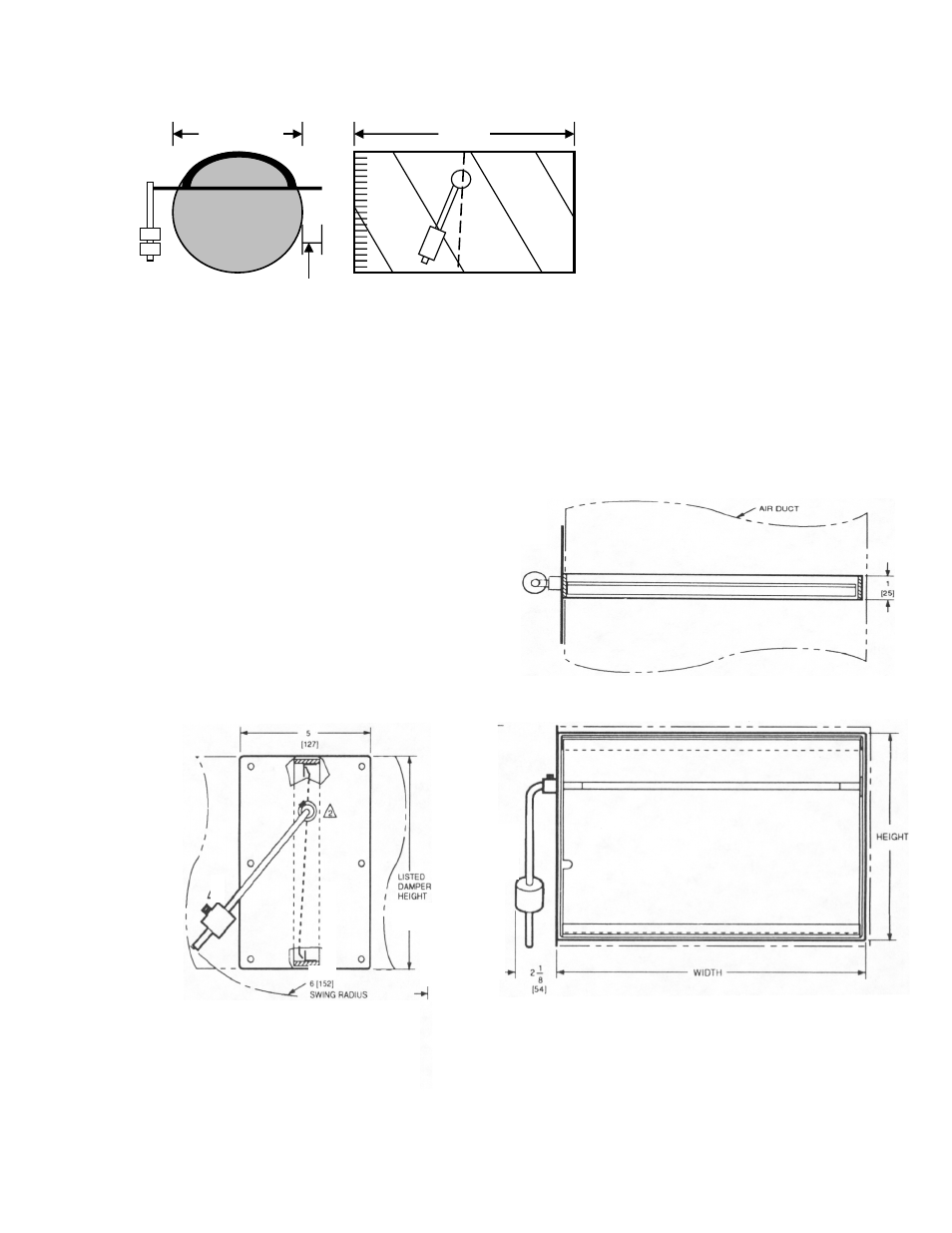

Dimensional
Drawing
–
Round
Damper
Specifications
Construction
–
22
Gauge
Galvanized
Steel
Dimensions
–
7”,
8”,
9”,
10”,12”,14”,16”,18”,
20”
Diameters.
Temperature
Rating
-­‐
0°F
to
180°F
Operating,
-­‐20°F
to
140°F
Storage
Humidity
–
5%
to
95%
Non-­‐Condensing
Static
Pressure
–
Maximum
0.5”
W.C.
Dimensional
Drawing
–Square
and
Rectangular
Damper
Specifications
Construction
–
22
Gauge
Zinc
Plated
Steel
Steel
Dimensions
–
12”x8”,
12”x10”,
12”x12”,
20”x8”,
20”x10”,
20”x12”
Temperature
Rating
-­‐
0°F
to
180°F
Operating,
-­‐20°F
to
140°F
Storage
Humidity
–
5%
to
95%
Non-­‐Condensing
Static
Pressure
–
Maximum
0.5”
W.C.
SPRD-100-02
10”
Diameter
2.5”
