F-19266 2-1-99

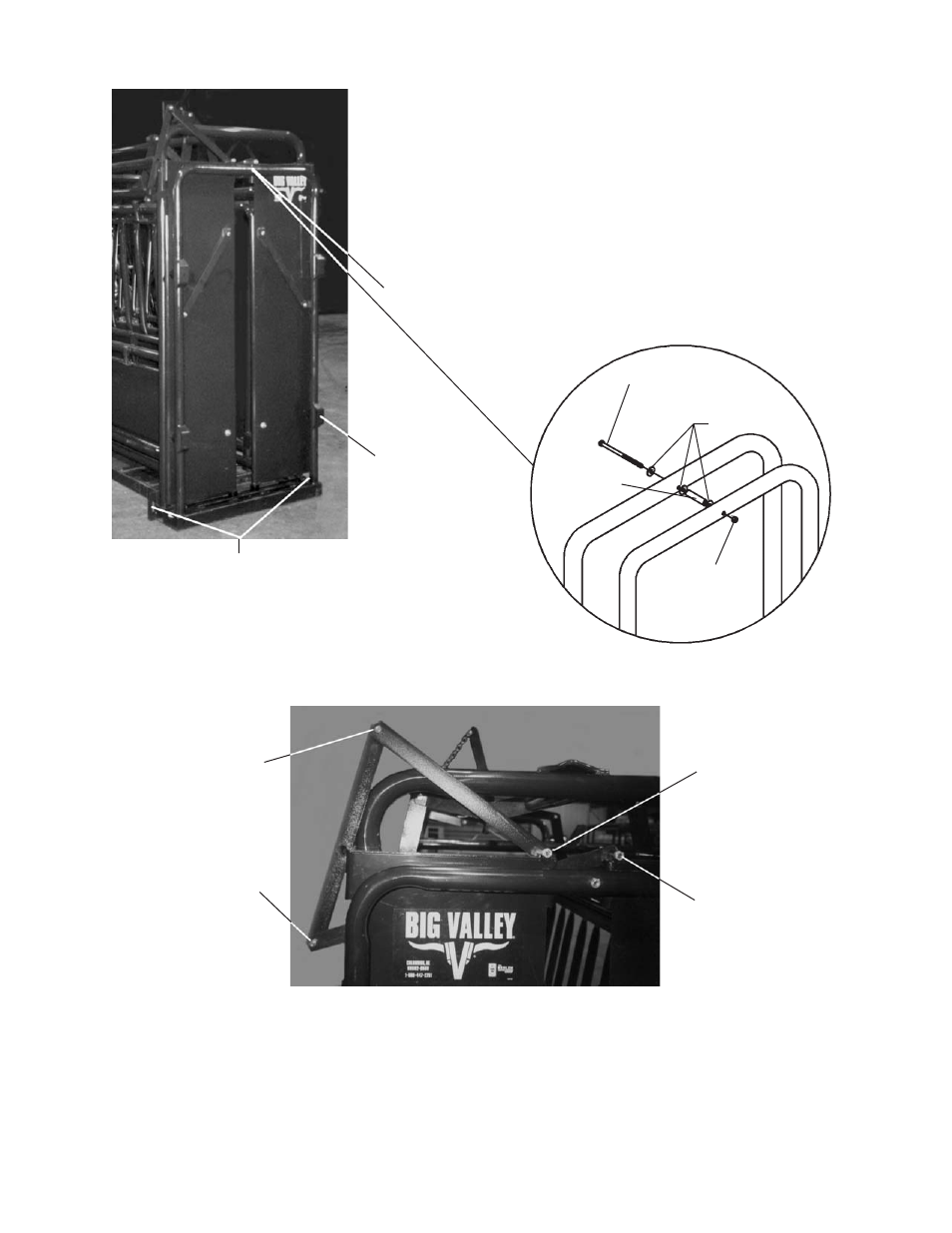

Use the ½” x 8” long bolt at the
top. Make sure that the 3½” long
pipe spacer is used between the
chute and the tailgate.
The 4 Palpation
Cage brackets
face outward.
The tailgate bolts to the rear of the
chute as shown using ½” x 1½” long
bolts and lock nuts.
½” Lock Nut
½” x 8” Bolt
½” Washer
3½” Pipe
Spacer
Stand the Tailgate Assembly up and attach the tailgate to the
rear of the M1 chute.
NOTE: The Palpation Cage brackets should be facingoutward.
Attach the two tailgate linkage straps to the tailgate doors and rocker arm.
The linkages fasten to the door using ½” x 2¼” carriage bolts.
NOTE: The tailgate linkages have to pivot, so leave the bolts a little loose.
Short linkage fastens
here using a 3/8” x 1”
carriage bolt and
locknut.
This linkage is
preassembled.
Short linkage fastens
here using a ½” x
2¼” carriage bolt
and locknut.
Long linkage fastens
here using a ½” x
2¼” carriage bolt
and locknut.
