Behlen 46079532 - Manual (Page 3)

LISTED BELOW ARE ITEMS SUPPLIED IN HARDWARE
Part No. Description Qty.
62602419 Pin, Drop 2
1328129 Bolt-U 3/8” x 2 x 2-5/8” 4
3948003 Washer 3/8” 8
— Tech Info Sheet 1
44600069 U-Hook Plated 2
3188032 Screw Hex ½ ” x 2” 4
3948002 Washer ½” 4
2688128 Nut, Hex ½”- 13w/ Nylint 2
2688008 Nut, Hex 3/8” NC Plated 8

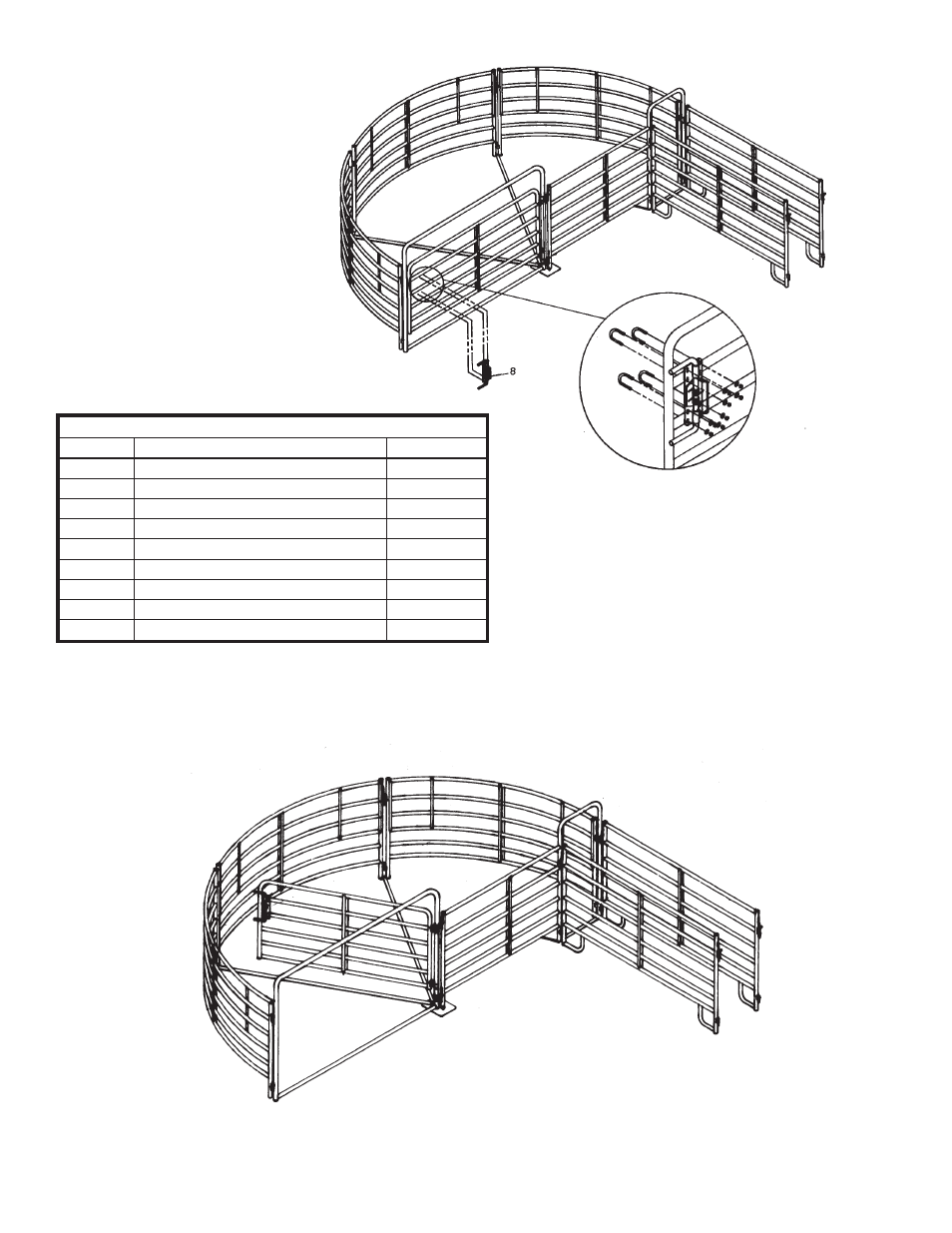

Next, install the sweep gate no back latch using four u-bolts, 8 nuts, 8 washers supplied. The sweep gate latch if installed properly will
have 1-1/2” of rod extending past the flat straps located on the curved panels.
The open system series-2 tub sweep pen is now assembled, at this time the crowd alley arches can now be installed.
F-17839-2C 9-26-00
