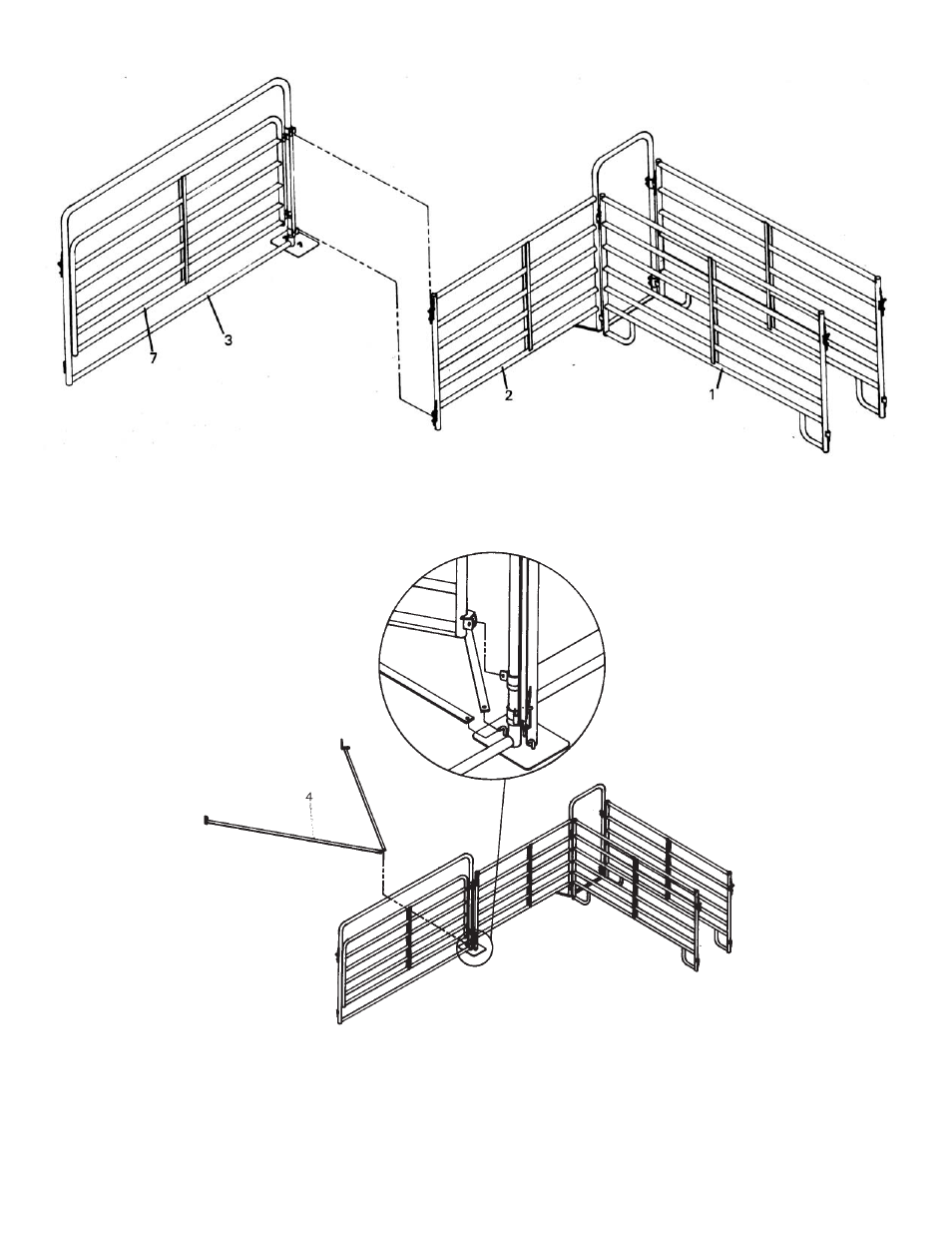

Next, stand up the 10’ main arch. NOTE: Wrap a rope or wire around the end of the gate and the main 10’ arch. This will prevent
the gate from swinging out of control while lifting the 10’ main arch. Attach the 10’ main arch on to the two c-clamp hook-ups
located on the 10’ panel with alley arch. NOTE: The 10’ alley arch panel will sit off the plate of the 10’ main arch about a 1/4”.
Once the arch and entrance panels are connected it’s time to install the flat 10’ ground supports. Two are required for a 3-panel
sweep and only one for a 2-panel sweep. Insert the end with the hole over the bent rod located on the base plate of the 10 ’ main
arch. NOTE: Holes are offset to one side of the flat strap. The strap side with the shortest distance to the hole will always face
down when sliding the strap over the rod hookup. After the strap has been inserted on the rod, rotate the strap flat and then allow
the strap to fall and rest on the base plate.
F-17840-1C 9-26-00
