AXEON CRO-Series - Manual (Page 6)

MKTF - 215
5
Push Handle Airgap Faucet

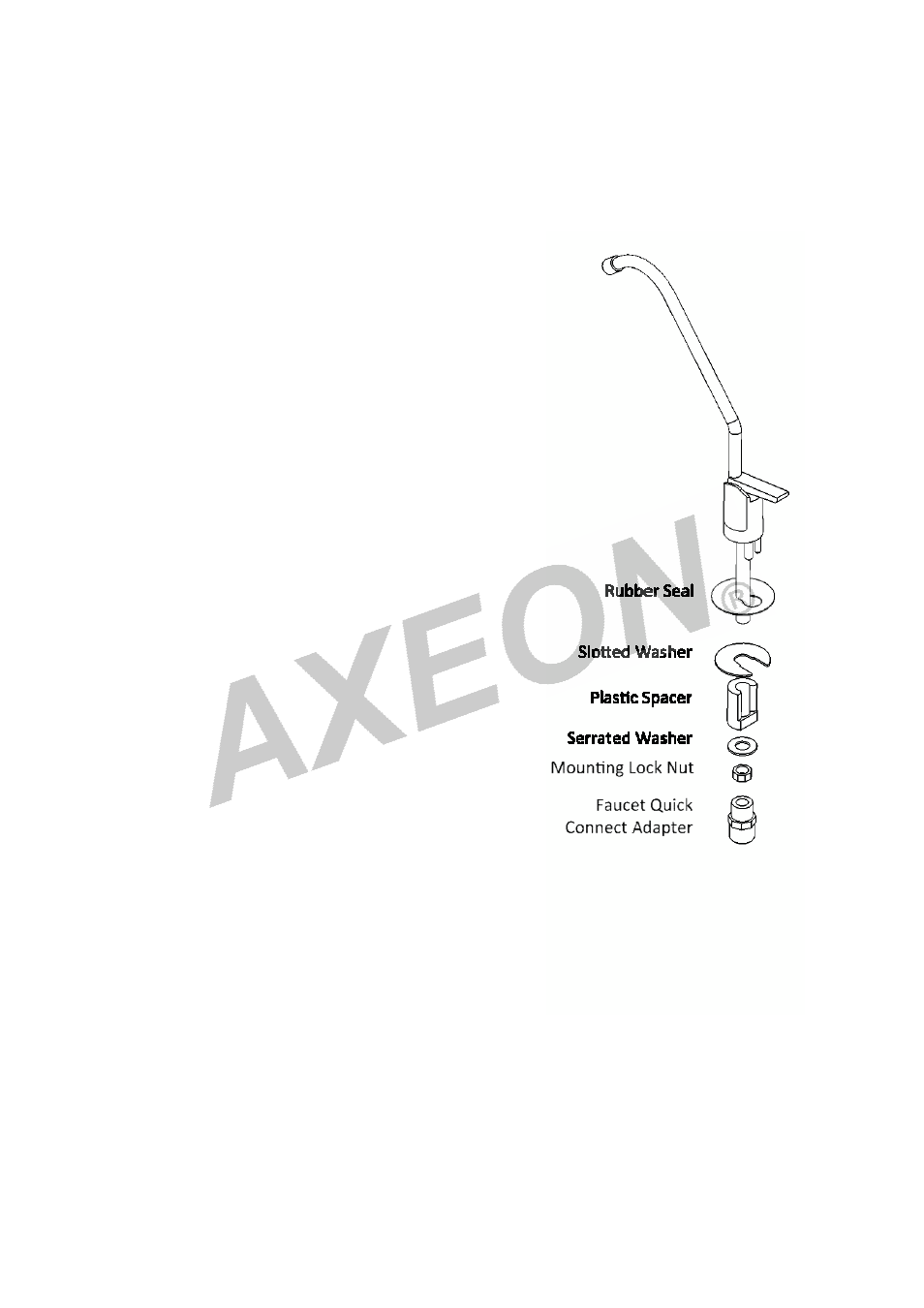

1. Locate the faucet parts bag and arrange the parts on the
countertop in the sequence shown.
2. Locate the piece of white tubing. Pull the white, black and blue
tubing up through the faucet hole in the sink.
3. Insert the rubber seal onto the base of the faucet.
4. Push the 1/4” black drain tubing attached to the system onto
the smaller 1/4” barb located on the faucet base.
5. Push the 3/8” white tubing onto the larger 3/8” fitting located
on the faucet base.
6. Slide white plastic spacer onto the threaded faucet stem.
NOTE: This spacer may be omitted if the faucet is installed in
a granite countertop (or countertop with similar thickness).
7. Loosely thread the serrated washer and mounting lock nut
onto the threaded stem. Leave enough space for the slotted
washer which will be used in step 11.
8. Thread the faucet quick-connect adapter (6) on to the threads
of the faucet stem.
NOTE: This connection should be hand tightened only.
9. Push the end of the 3/8" blue tubing into the 3/8" connection
at the end of the adapter.
10. Push the tubing down into the faucet hole and position the
faucet base to the approximate final orientation.
11. From underneath the sink, slip the slotted washer between the
white plastic spacer and the sink. Check the orientation of the
faucet on the sink. Securely tighten the mounting nut with a
wrench.
12. Firmly insert spout assembly into the top hole of faucet body
(approximately 1/4"). You may swivel the faucet left or right.
