8
connection, the connector is located on the rear of the machine.
Address Setup
– Press [Menu] until the LCD screen displays “DMX512 Add:” and then press
the ▲ or ▼ button to set the DMX address from 1-512.The machine occupies 1 control
channel. The starting address is defined as the first channel from which the machine will
respond to the controller. Always double check to make sure there are no overlapping
channles in order to control the machine correctly.
DMX Channel Function
Channel DMX Value Range Function
1
0
– 5
Fog Off
6 – 255
Fog Output 50 – 100%
Fog Output 100% for 2 seconds
(under 2-Second Jet Mode)

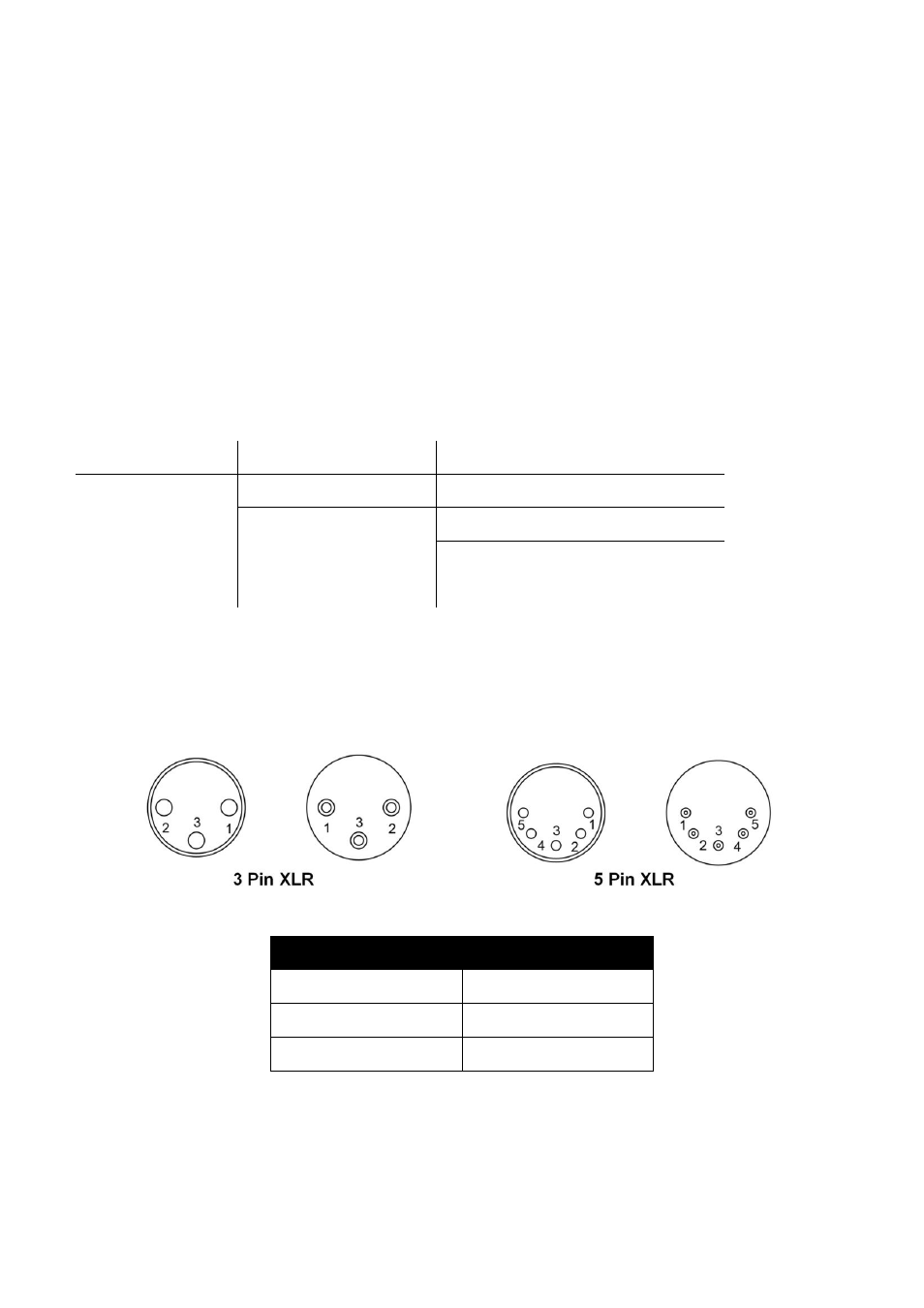

DMX Connector Pin Assignment
The machine provides 3- and 5-pin XLR connector for DMX connection. The diagram below
indicates pin assignment information.
Pin Function
1 Ground
2 Data-
3 Data+
Wireless Remote Control Operation (Not applicable for W-715X)
The wireless remote control system consists of a transmitter equipped with two buttons for
