Antari HZ-500 User Manual

Page 10

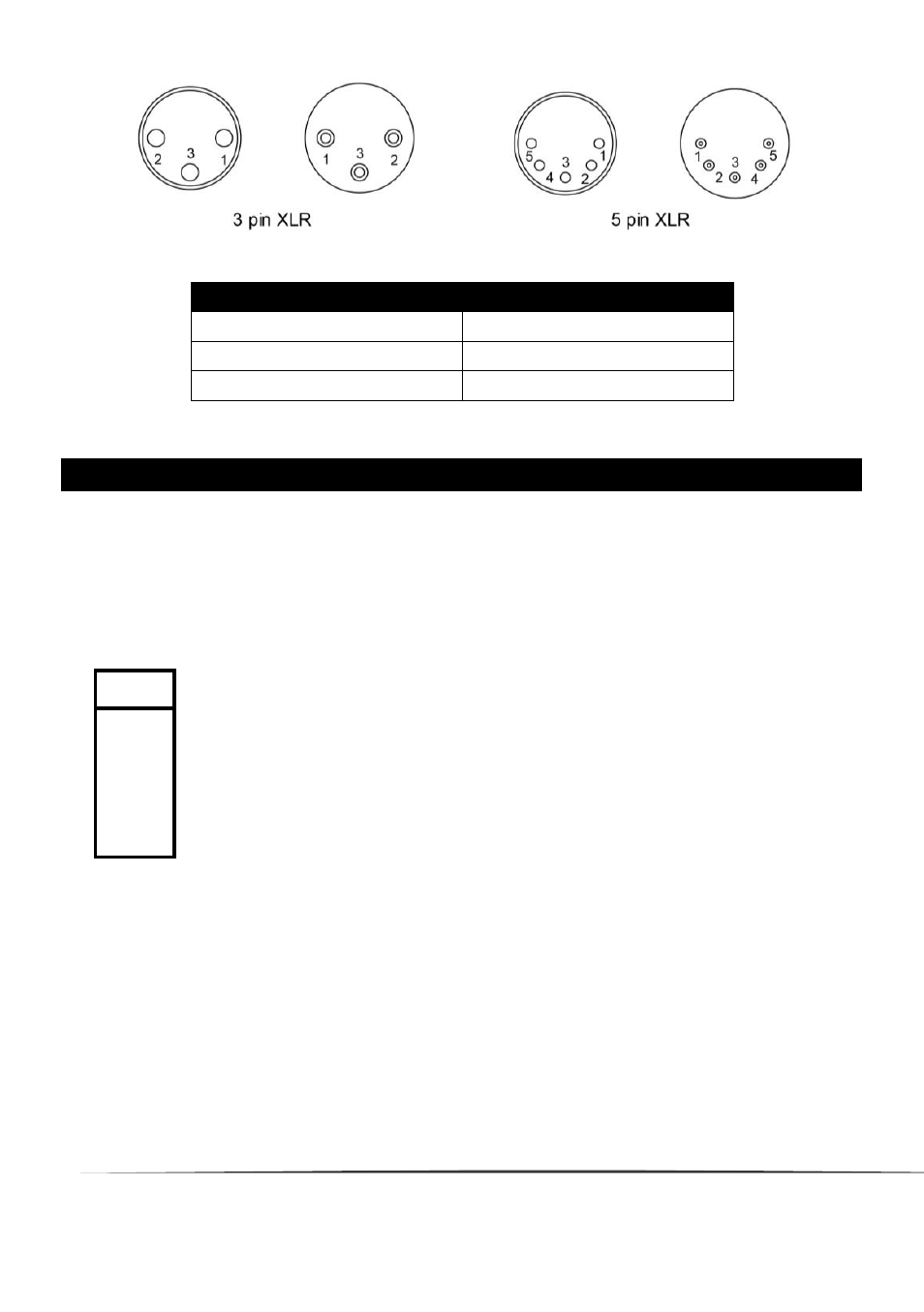

Pin

Function

Ground

Data-

Data+

DMX CONTROL OPERATION

HZ-500 has on-board DMX control and the addressing is via the LCD control panel. The

HZ-500 uses 1 channel to control on/off operation. The channel has a value range from 0 to 255. The

on/off function can also be programmed with a DMX controller or DMX control software used by lighting

and effects operator.

Channel A

251-255 = ON

0-250 = OFF

If the value of channel A is set between 0 and 250, the unit is off.

While the value is set between 251 and 255, the unit is on.

Note: Once DMX cable is connected to the unit, then the LCD control panel cannot be used.

Hazer Liquid

Antari HZL-1 haze liquid was designed for use with the Antari HZ-500. Antari HZL-1 is a non-toxic

solution that produces a pure, translucent haze with extremely long hang time and low moisture, perfect

for the HZ-500.

Important: Never mix oil-based and water-based hazer liquids. Before switching the kind of haze liquid
