6

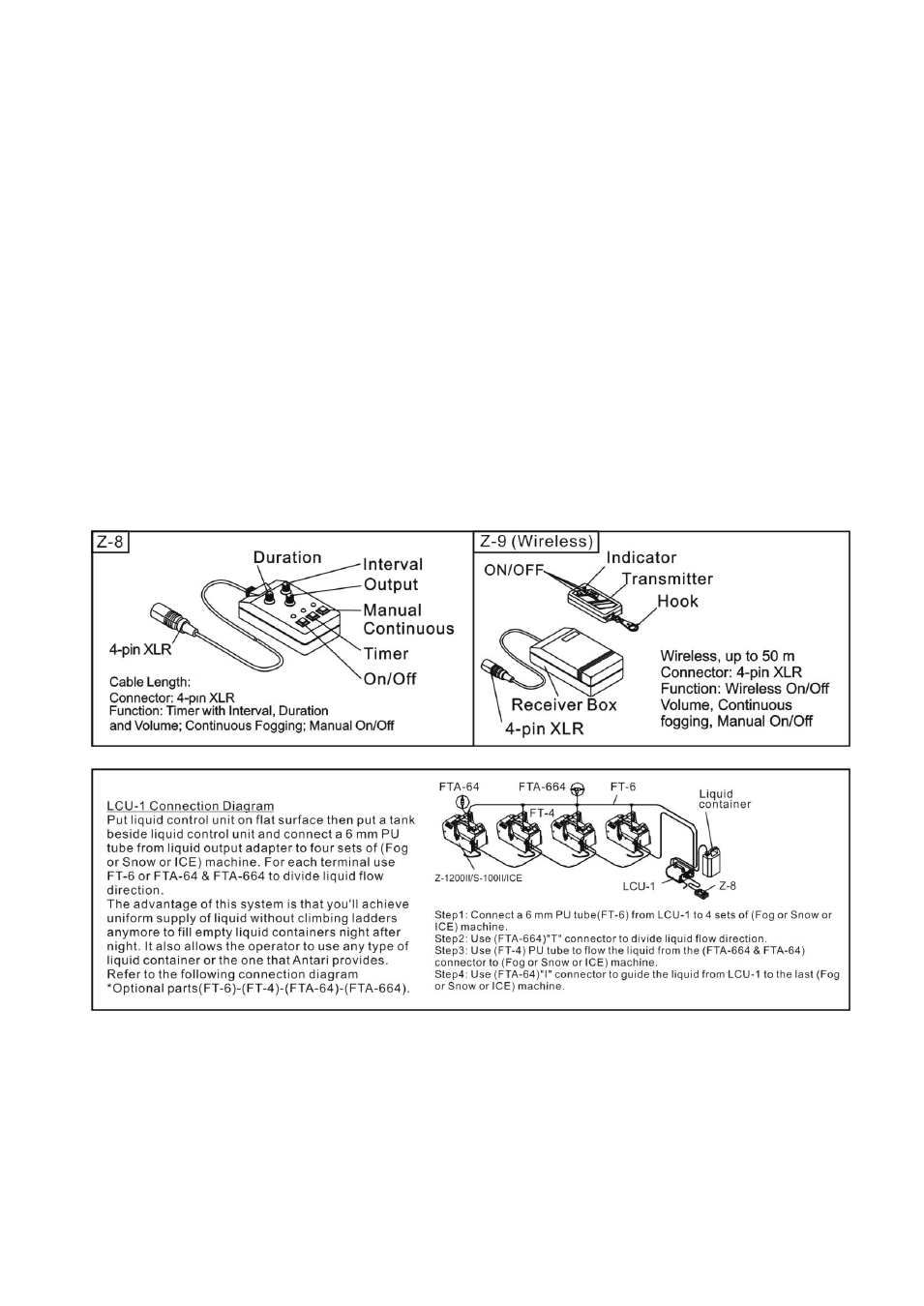

The Interval knob adjusts the time between discharges when the timer function is engaged. The range is
from 10 seconds to 250 seconds.
The Volume knob controls the volume of the fog produced. The range is from 0% - 100% of maximum
output.
Adjust the Duration control knob of each fog emission (within the range of 1 to15 seconds).
The yellow TIMER button controls the timer function. Depress the button to activate. When activated, the
yellow light will turn ON. Adjusting the interval knob will determine the time between fog output (10
– 250
seconds). The duration of output is set at 15 seconds. The volume can be adjusted using the volume knob
to control the amount of fog produced.
The red CONTINUOUS button sets the machine to constant fog production. To activate this function,
depress the red button. The volume knob can be used to regulate the volume of the steady stream of fog
produced.
The green MANUAL button will produce a continuous blast at maximum volume while the button is held
down. When released, the manual function stops and the machine will return to the previous setting; timer,
continuous, or stationary.
Note: The continuous function will override the Timer function. Therefore, if both buttons have been
depressed the Z-1200II will fog continuously. The manual function overrides all functions. When depressed
and held down the Z-1200II will fog at maximum volume for as long as the button is held down, regardless
of the machine
’s setting at the time.
Z-1500II & Z-3000II Operation
•Add fluid carefully to the liquid tank. Do not overfill the tank.
•The Plug should be in a position that is accessible when using the machine.
•
Plug power cord into a grounded electrical outlet. Turn the power switch to “ON” on the back of the machine.
Warm-
up is completed when the display on the control module shows “Ready to Fog”
•To emit fog press the appropriate button on the control module for the desired length of time.
•
The control unit display will display “Warming up” as the machine re-heats to the proper operating temerature.
•For further information on operating your Z-1500II, Z- 3000II Fog Machine, see the section titled “Control
Module Operation”.
25 feet
