11
Please read and save these instructions.

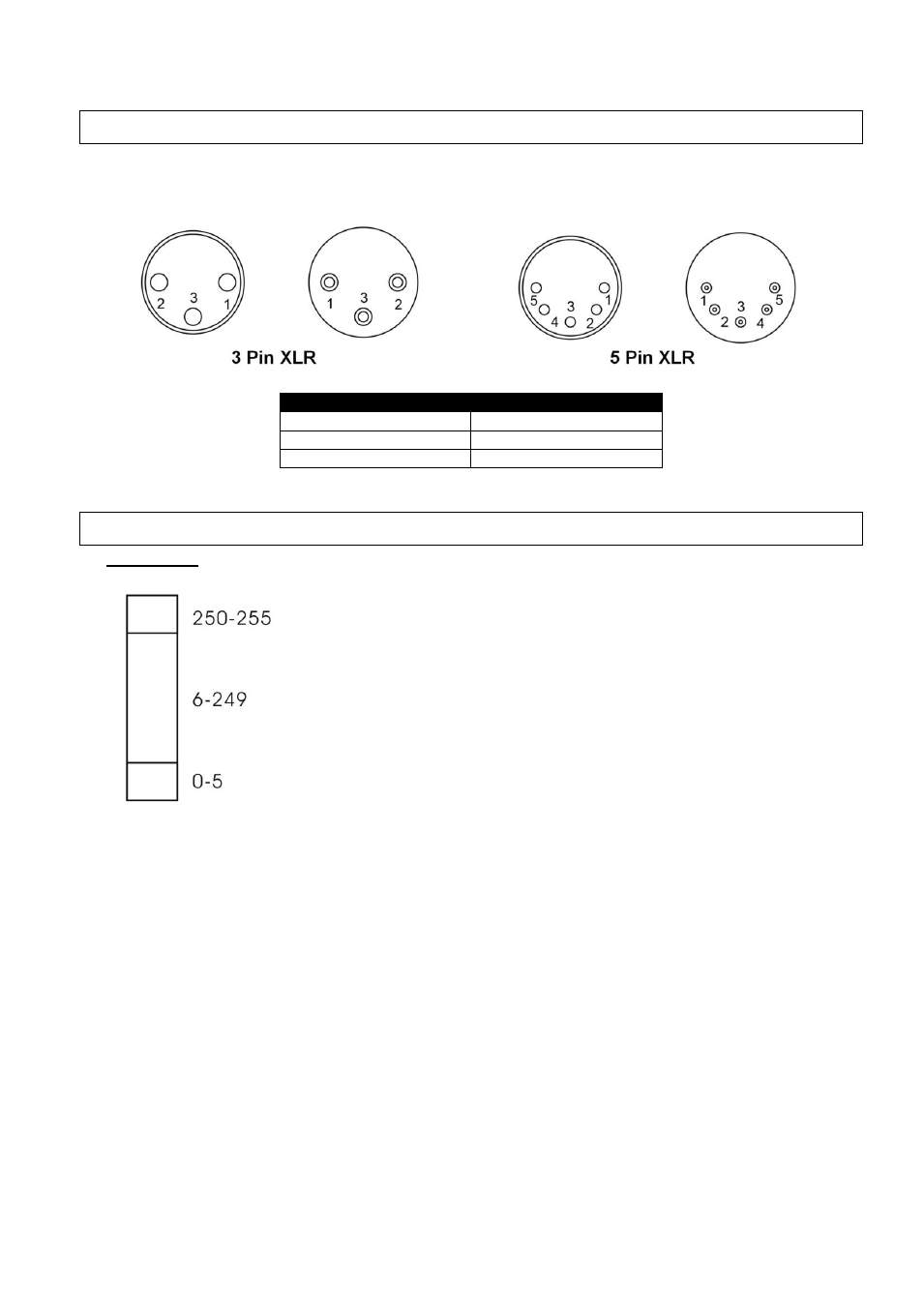

DMX Connector Pin Assignment
The machine provide 3 or 5 pin XLR connector for DMX connection. Diagram below indicate pin assignment
information
Pin Function
1 Ground
2 Data-
3 Data+
Antari Z-1200II, Z-1500II, Z-3000II on-board DMX settings
U
Channel A
0 - 5 = OFF
6
– 249 = Volume Control ( 5% - 95%)
250
– 255 = Maximum Volume Output (100%)
The Z-1200 II, Z-1500II & Z-3000II Fog Machines have on-board DMX control. These models use 1
channel to control volume output operation. Each channel has a value range of 0 to 255. Timer functions
such as duration and interval can be programmed using the DMX controller or the DMX control software
being used by lighting and effects operator.
If Channel A has a value from 0 to 5, the unit is OFF.
Between the values 6 to 249 the volume of fog output is regulated. With 6 being the minimum volume
of fog produced and 249 approaching the maximum. The volume output rises as the DMX value is
increased.
If Channel A has a value from 250 TO 255, the machine will operate at maximum output.
Note: In the example above, if the machine were assigned the DMX address of 124, Channel A would
correspond to DMX address 124.
