4 • 466231203
Key Qty Description Part #
A 1 Lid Plate P00118036A
B 1 Lid Side Panel, Left P00105037K
C 1 Lid Side Panel, Right P00106037K
D 1 Heat Indicator P00601181A
E 1 Plastic Lid Handle P00202012A
F 1 Logo Plate P00403003H
G 1 Warming Rack P01505007E
H 2 Cooking Grid P01615003E
I 3 Flame Tamer P01705005E
J 1 Griddle P05702002E
K 3 Burner P02001031E
L 1 Burner Support Bracket P02203052B
M 3 Gas Collector Box with Electrode P02609002B
N 1 Electric Wire set P02615062A
O 1 Electric Ignitor (4 port) P02502024C
P 1 Bowl Side Panel, Left P00720011A
Q 1 Bowl Side Panel, Right P00721011A
R 1 Bowl Front Panel P00724014A
S 1 Bowl Rear Panel P00725014A
T 1 Rear Wind Shield P00728051A
U 1 Grease Draining Tray P02705084B
V 1 Grease Receptacle P02701015B
W 1 Gas Manifold P05003062A
X 3 Gas Valve for Main Burner P03222024B
Y 1 Heat Shield for Control Panel P03007032B
Z 1 Control Panel P02P07501A
AA 3 Control Knob P03411111G
BB 3 Control Knob Seat P03415041J
C C 4 Spring P05504017E
DD 1 Sideburner Frame (Left) P01102013D
EE 1 Side Shelf, Right P01103012D
FF 1 Bracket for Side Shelf - Left Front P01204004C
GG 2 Bracket for Side Shelf - Left Rear, Right Front P01206003C
HH 1 Bracket for Side Shelf - Right Rear P01207002C
I I 2 Front Panel, Side Shelf, Left P07503001B
JJ 1 Cart Bottom Shelf P01003006D
KK 2 Cart Side Panel P07604002B
LL 1 Cart Rear Panel P07702002B
M M 1 Door Bracket P03301001D
N N 2 Door Front Plate P04301002A
OO 2 Door Handle P00214006A
PP 2 Bowl Support Bracket P01306002D
QQ 1 Left Side Cart Leg, Front P00910005C
R R 1 Left Side Cart Leg, Rear P00911005C
SS 1 Right Side Cart Leg, Front P00912005C
TT 1 Right Side Cart Leg, Rear P00913005C
U U 4 Caster Seat P04507003A
VV 4 3" Caster P05106003D
WW 1 Pull-Out Tank Tray P04009005C
XX 2 Bracket for Pull-Out Tank Tray P04010006C
YY 1 Handle for Pull-Out Tank Tray P00210004D
ZZ 2 Slide Set P05516003C
AAA 1 Sideburner Lid P0011508AA
BBB 1 Lid Knob for Sideburner P00201008A
CCC 1 Pot Support P00814002D
DDD 1 Electrode P02614007C
EEE 1 Sideburner P02002003D
FFF 1 Gas Valve for Sideburner P03218102G
GGG 1 Control Knob P03401031F
HHH 1 Connection Tube P03702002A
I I I 1 Regulator with Hose (27") P03601004A
JJJ 1 AA Battery P05301001A
KKK 1 Front Panel, Side Shelf, Right P07502001B
LLL 1 Sideburner Control Knob Seat P03408051J
MMM 1 Match Lighting Stick with Chain P05507031E
1 Caster Wrench P05515002C
1 Grate Lifter P05515014F
1 Hardware Pack P06004004A
1 Owner's Manual P80112002A
Parts List - 466231203

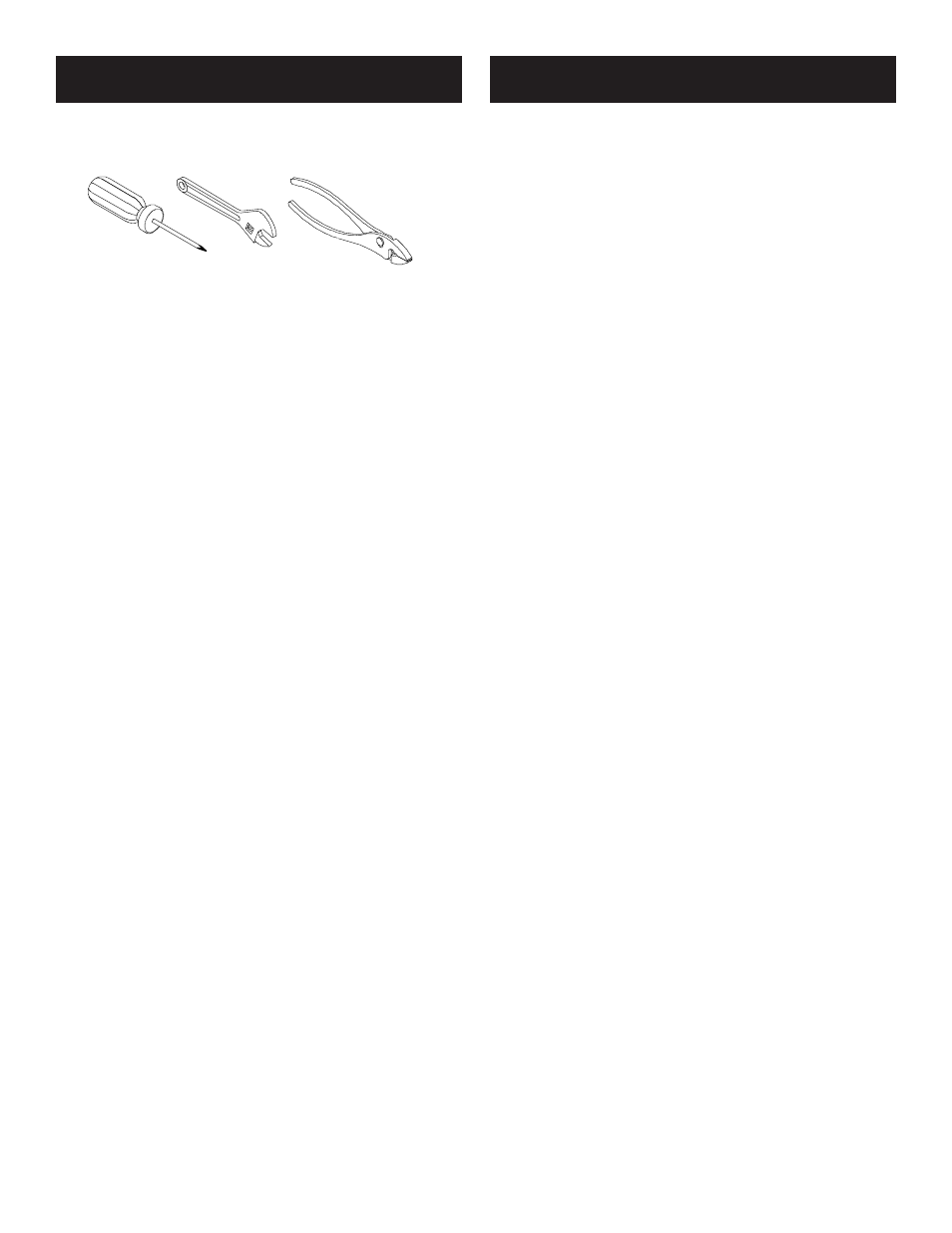

• Necessary tools for assembly of your grill include:
Phillips ® screwdriver, pliers and adjustable wrench.
Before Beginning Assembly
Certified Grill Parts And Accessories®, Char-Broil and Design®, Char-Broil (Gas Grill Briquettes)®,
Char-Diamonds®, Cooking Zone and Design®, Diamond Flame®, Executive Chef®, Faststart®,
Flare Fighter®, FlavorMaster®, Gas Grill Silouette and Design®, H2O Smoker®, Lava Flame®,
MasterFlame®, MasterFlame Precision Cooking System®, PowerSpark®, Quantum®, VIP®,
PrecisionFlame and Design®, Sierra®, and TruFlame® are registered Trademarks of the W.C. Bradley
Company. Thermos® is a registered trademark of the Thermos Company and its affiliates.
Artisan Collection by Char-Broil ™, C3 and Design™, Char-Broil and Design™, Flame Design™,
FlavorTents™, Grill 2 Go™, Grillin’ Stick™, Keeper of the Flame™, Keepers of the Flame™,
Natural Grip™, Outdoor Cooking Collection and Design™, Patio Bistro™, PrecisionFlame™, Pro-Check™,
QuickSet Grills and Design™, SmokerTents™, The Big Easy™, The Minute Grill™, The Edge™,
The Tuscan Collection™, and The Urban Grill™ are Trademarks of the W.C. Bradley Company. Universal
Grill Parts and Design™ is a trademark of the Thermos Company and its affiliates.
Protected under one or more of the following U.S. Patents: 4,598,692; 4,624,240; 4,747,391; 4,747,391;
4,817,583; 4,924,846; 4,989,579; 5,003,960; 5,076,256; 5,076,257; 5,090,398; 5,109,834; 5,224,676;
5,277,106; 5,421,319; 5,441,226; 5,452,707; 5,458,309; 5,566,606; 5,566,606; 5,579,755; 5,582,094;
5,613,486; 5,649,475; 5,706,797; 5,711,663; 5,765,543; 5,931,149; 5,996,573; 6,095,132; 6,135,104;
6,279,566; D282,619; D339,714; D341,292; D343,337; D358,059; D361,466; D364,535; D372,637;
D373,701; D377,735; D383,035; D397,910; D405,643; D405,643; D406,005; D406,009; D413,043; D413,229;
D413,229; D414,982; D415,388; D416,164; D416,441; D416,441; D417,587; D422,516; D423,274; D423,876;
D428,303; D435,396; D436,004; D438,059; D438,060; D438,427; D439,110; D442,505; D443,179; D443,354;
D447,384; D447,385; D447,909; D448,610; D448,614; D448,615; D448,616; D448,975; and D449,492.
Other Patents Pending.
