InStALLAtIon

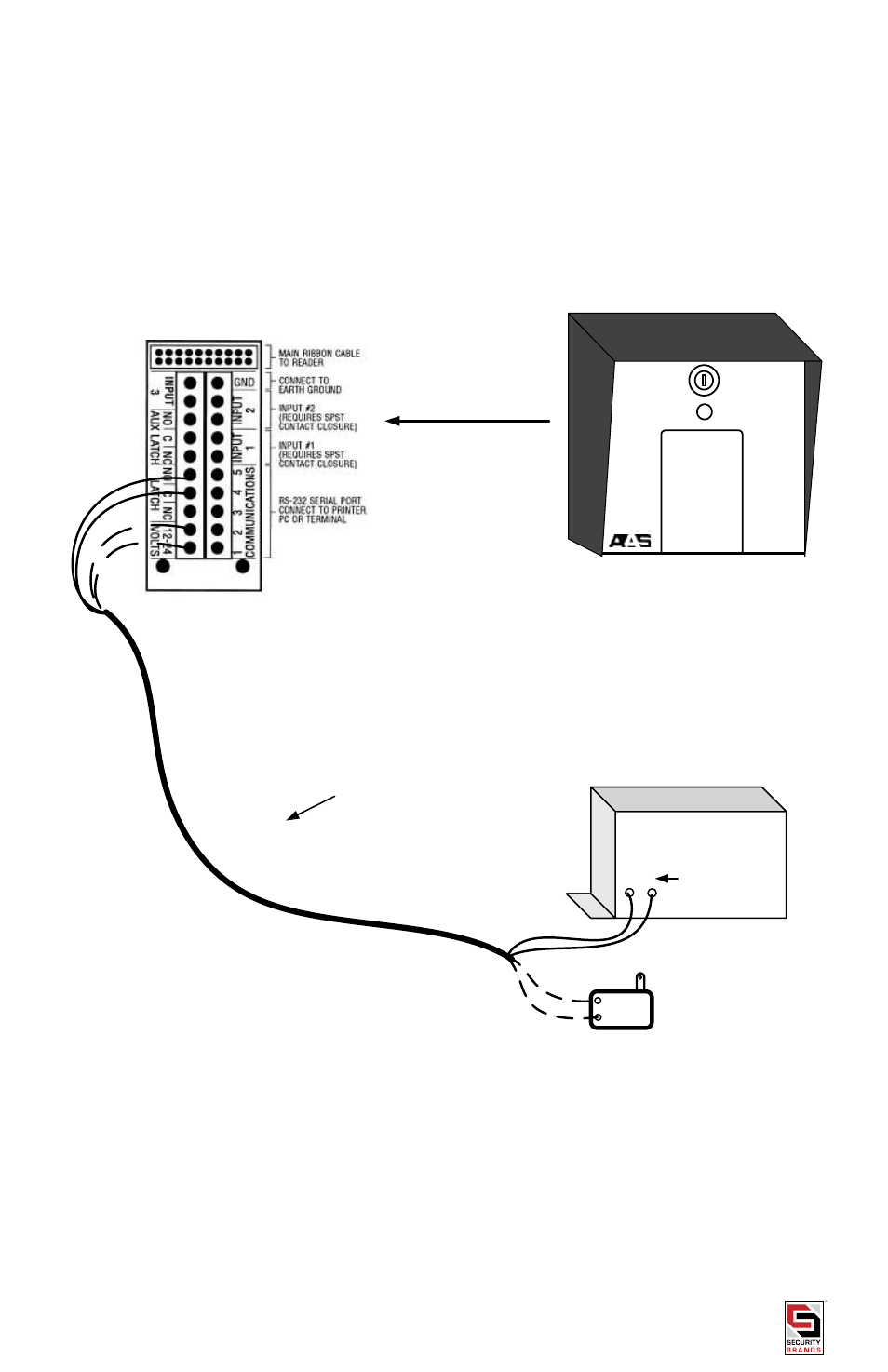

Typical Installation for 11-6500 to Gate
Operator
Gate Operator
4 Conductor Shielded
Cable
12 VAC
xformer
Open
Circuit
Power
Can Be Plugged into
a outlet installed
inside Gate Operator
Terminals located on
operator control
board.
White night light leads will hook directly to power leads when using 12 VAC transformer. If using 24VAC
operator control voltage you MUST connect a 100 ohm 10 watt resistor in series with on of the white
night light leads to reduce voltage to 12 volts
11-65000 Terminal
Block
