uu Fuses u Fuse Locations
Continued
Han
d
lin
g the U
n
expected

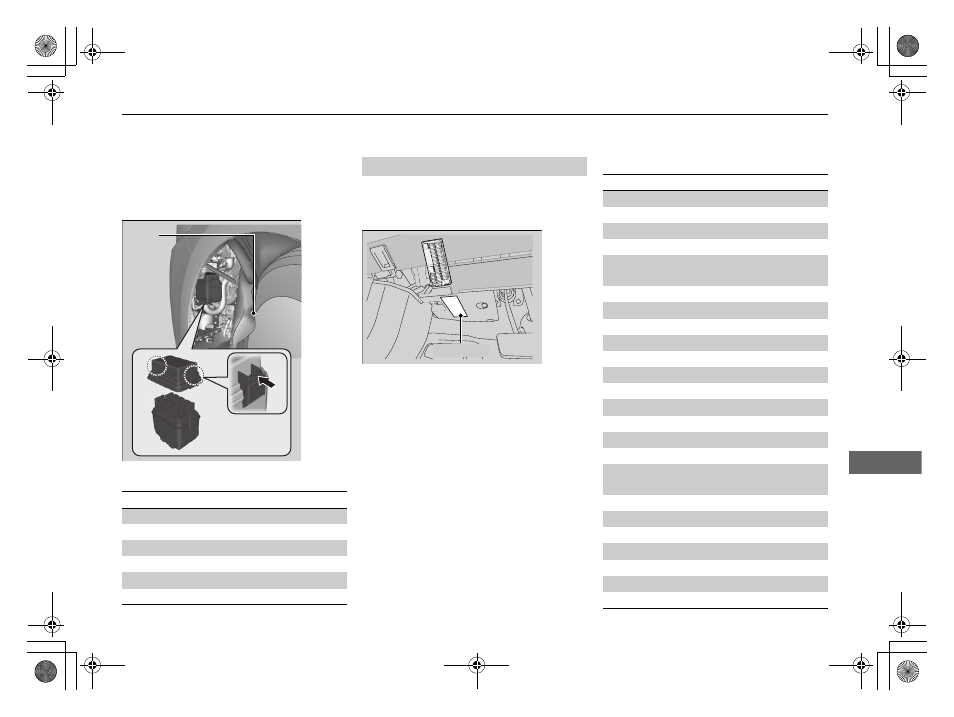

Located inside the left side of the front
bumper. Pull the inner fender back, then
push the tabs to open the box.
2 Front Side Marker Light Bulbs P. 475
■ Circuit protected and fuse rating
Inner
Fender
Circuit Protected Amps
1 HCA 1 20 A
2 TCU 30 A
3 HCA 2 20 A
4 STRG MOVE 1 20 A
5 − −
6 − −
There are two fuse boxes in the driver's side.
Located under the dashboard.
Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.
■ Driver’s Side Interior Fuse Box
Fuse Label
■ Circuit protected and fuse rating
Circuit Protected Amps
1 Driver’s Side Door Lock 10 A
2 Passenger’s Side Door Lock 10 A
3 Driver’s Door Lock 10 A
4 Driver’s Side Door Unlock 10 A
5
Passenger’s Side Door
Unlock
10 A
6 Driver’s Door Unlock 10 A
7 Door Lock 20 A
8 − −
9 Power System 1 10 A
10 IG1 DR1 7.5 A
11 Meter 10 A
12 Passenger’s Side Fuse Box 20 A
13 ACCESSORY 7.5 A
14 − −
15 Driver’s Power Seat Sliding 20 A
16 Moonroof 20 A
17
Rear Driver’s Side Power
Window
20 A
18 STRG MOVE 2 20 A
19 Driver’s Power Window 20 A
20 Power System 2 15 A
21 Fuel Pump 20 A
22 Power System 2 7.5 A
23 Starter Cut 7.5 A
24 IG1 DR2 7.5 A
