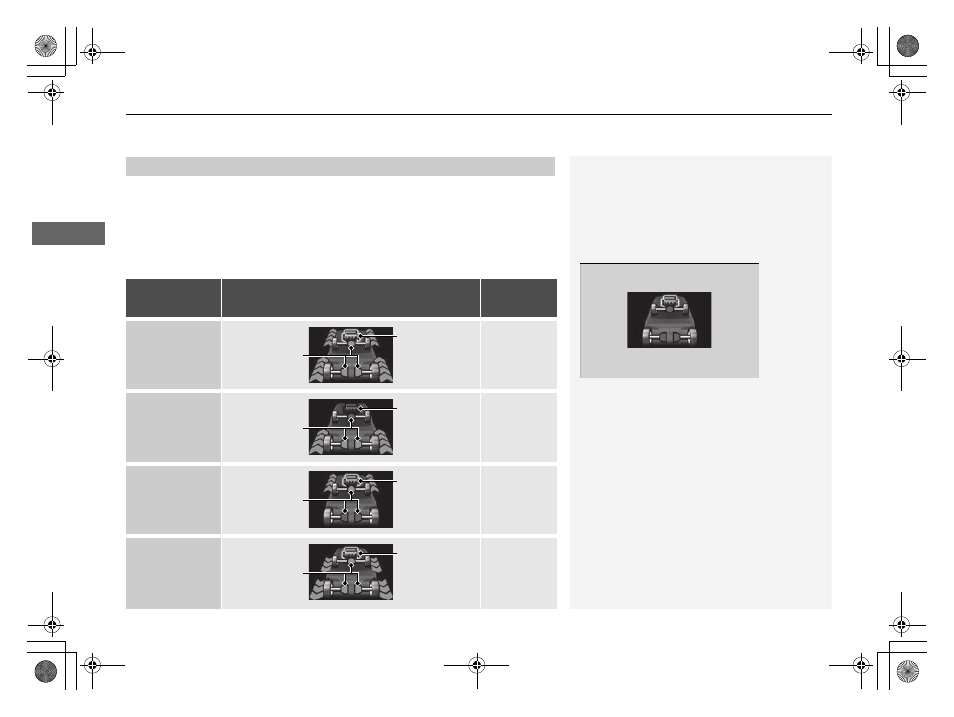

Consists of two monitoring displays, one that indicates the vehicle’s power flow,
and the other, the torque distribution.
■
Power flow monitor
Shows motor and engine power flow, indicating what supplies power to the vehicle,
or if the battery is being charged.
■
Power Distribution Monitor
Head-up display
Color of
indicators
Power is
supplied by the
motors and the
engine.
Blue
Power is only
supplied by the
motors.
Blue
Power is only
supplied by the
engine.
Blue
The motors
charge the High
Voltage battery.
Green
1
The power distribution monitor can be also displayed
on the audio/information display.
2 Audio/Information Screen P. 228
While the vehicle is stationary with the engine
running, the following may appear on the display.
Engine Icon
(Engine on)
Power Flow
Indicator
Engine Icon
(Engine off)
Power Flow
Indicator
Engine Icon
(Engine on)
Power Flow
Indicator
Engine Icon
(Engine on)
Power Flow
Indicator
