HALF BRIDGE SENSOR TO FULL BRIDGE INDICATOR CONVERTER

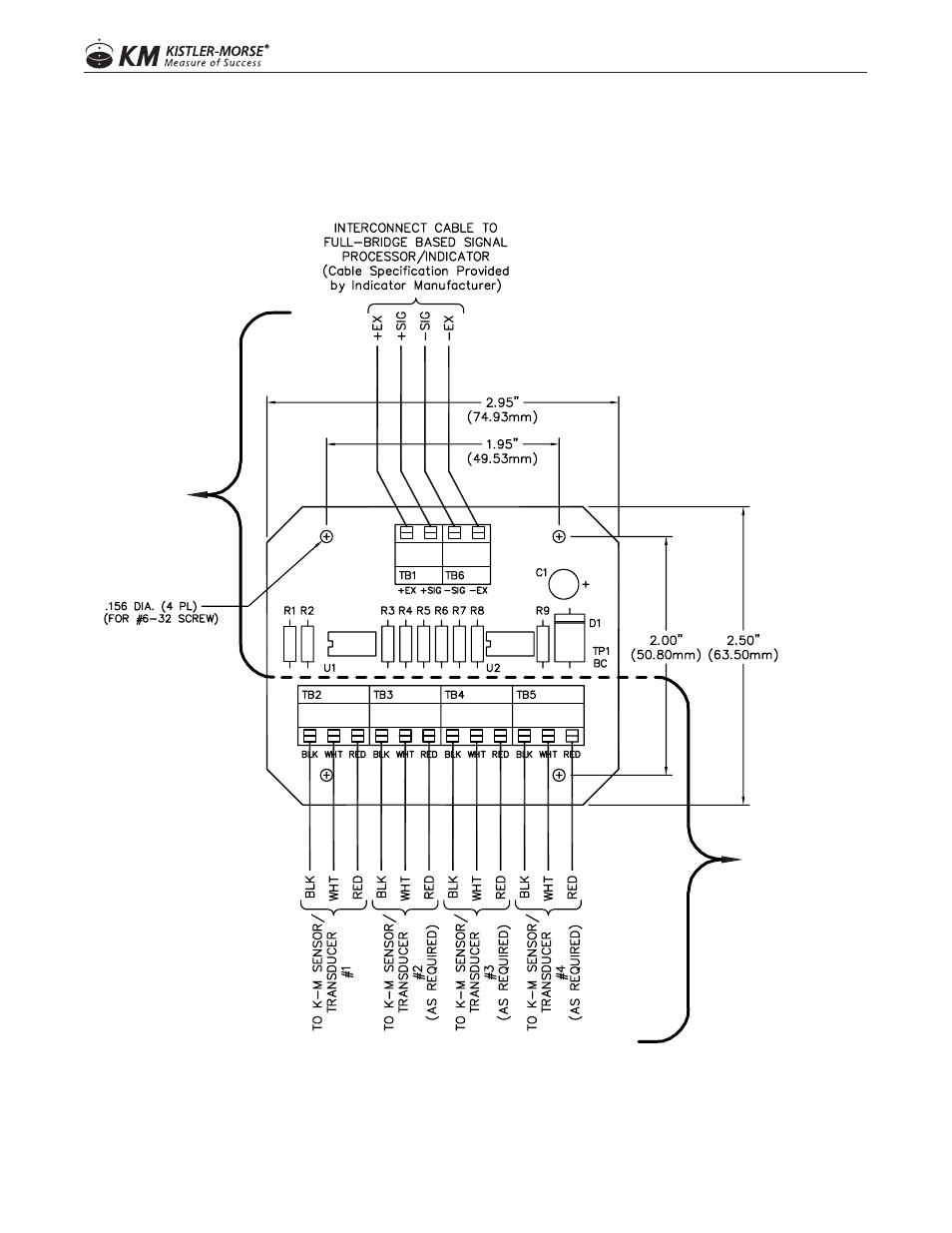

See previous sections in this manual for instructions to wire each half of the converter; also reference wiring
diagram below.
HALF BRIDGE
TO JUNCTION BOX
FULL BRIDGE
TO JUNCTION BOX
