3 › The mixers are tested and calibrated in our headquarters, but
particular working conditions may require a further calibration
operation to obtain the desired temperatures.
Follow these instructions:
› Measure water temperature with a thermometer
› Turn knob (M) (Figure 5 ) until desired temperature is
reached
› Remove small plate (O), loosen handle screw (N) and
extract the graduated knob (M) without rotating it. Insert it
again, positiong the red button on the top in correspon-
dence with the catch (P) on the cam (R) (Figure 5)
4 › Follow the same instructions in the opposite order to fix the
knob

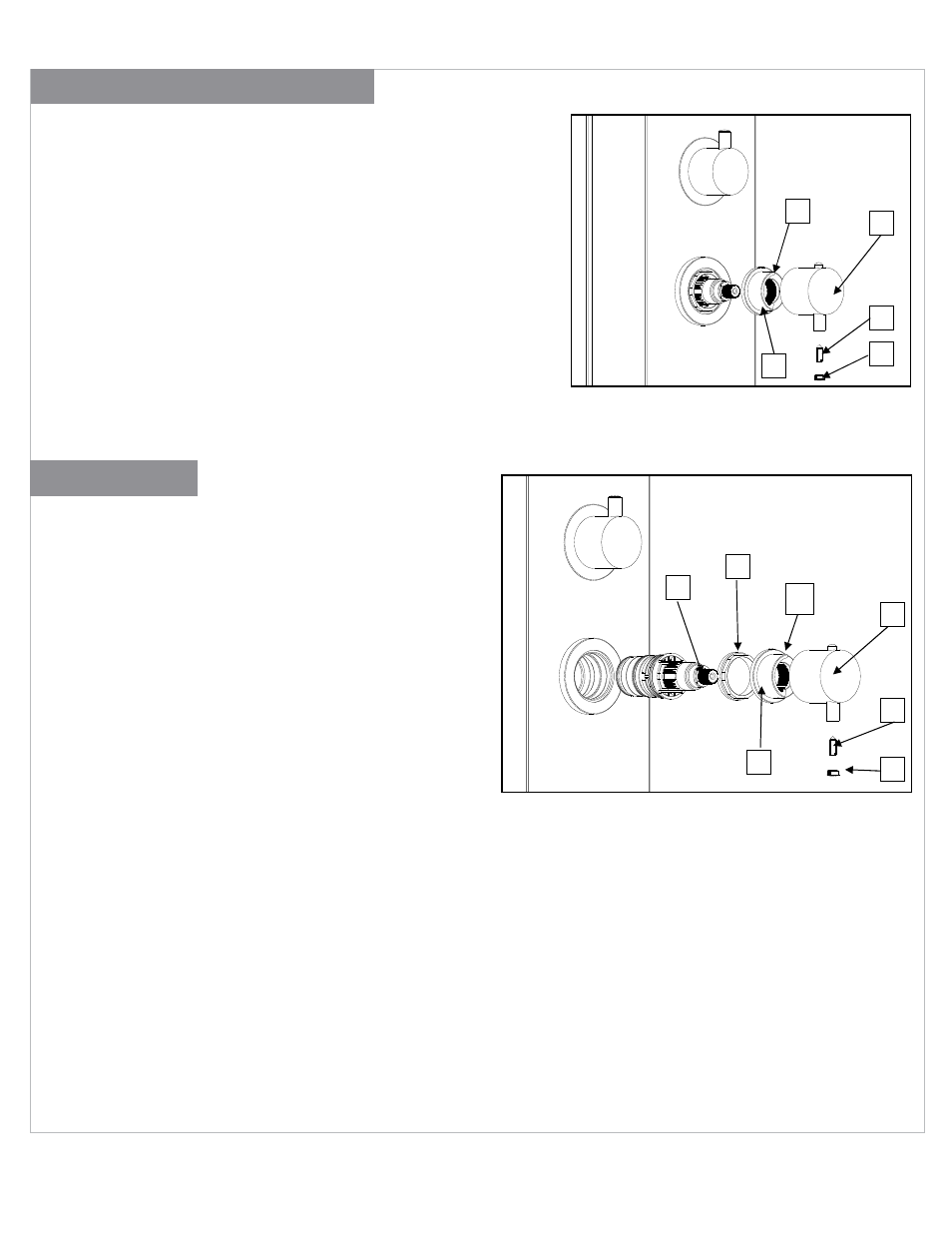

To perform maintenance operations or to inspect the thermo-
static cartridge, remember to close the water supply and elimi-
nate the internal pressure by opening the tap:
› Remove the small plate (O), loosen the handle screw (N)
and extract the graduated knob (M) (Figure 6)
› Remove the plastic cam (R)
› Use the wrench 32 to disassemble the locking brace (Q)
› Disassemble the cartridge (O), inspect it or replace it
› Follow the same instructions in the opposite order according
to the assembly instructions for the temperature references
FINISHING ASSEMbLy INSTRUCTIONS
MAINTENANCE
