Rer view of the column – Jaclo Gosh Concerto - 1730 User Manual
Page 3
jaclo
industries | 129 Dermody Street Cranford, NJ 07016
p 908.653.4433 | 800.852.3906 f 908.653.1717 | 800.852.4133
JACLO.COM
GOSH CONCERTO | PG 3
CREATED 5.27.10
ISTXX2492TK ING. 07.02.08. REV=00
ISTXX2492TK ING. 07.02.08. REV=00
E
Rer view of the
column
ISTXX2492TK ING. 07.02.08. REV=00
ISTXX2492TK ING. 07.02.08. REV=00
E
Rer view of the
column
Height of person
64.9in
68.9in
72.8in
76.8in
80.7in
H
A
E
C
C1
Height of column
78.7in
82.7in
86.6in
90.6in
94.5in
Height of water supplies
37.4in
41.3in
45.3in
49.2in
53.1in
Height of lower bracket
25.2in
29.1in
33.1in
37in
40.9in
Height of upper bracket
55.9in
59.8in
63.8in
67.7in
71.7in
Rear view of the
column

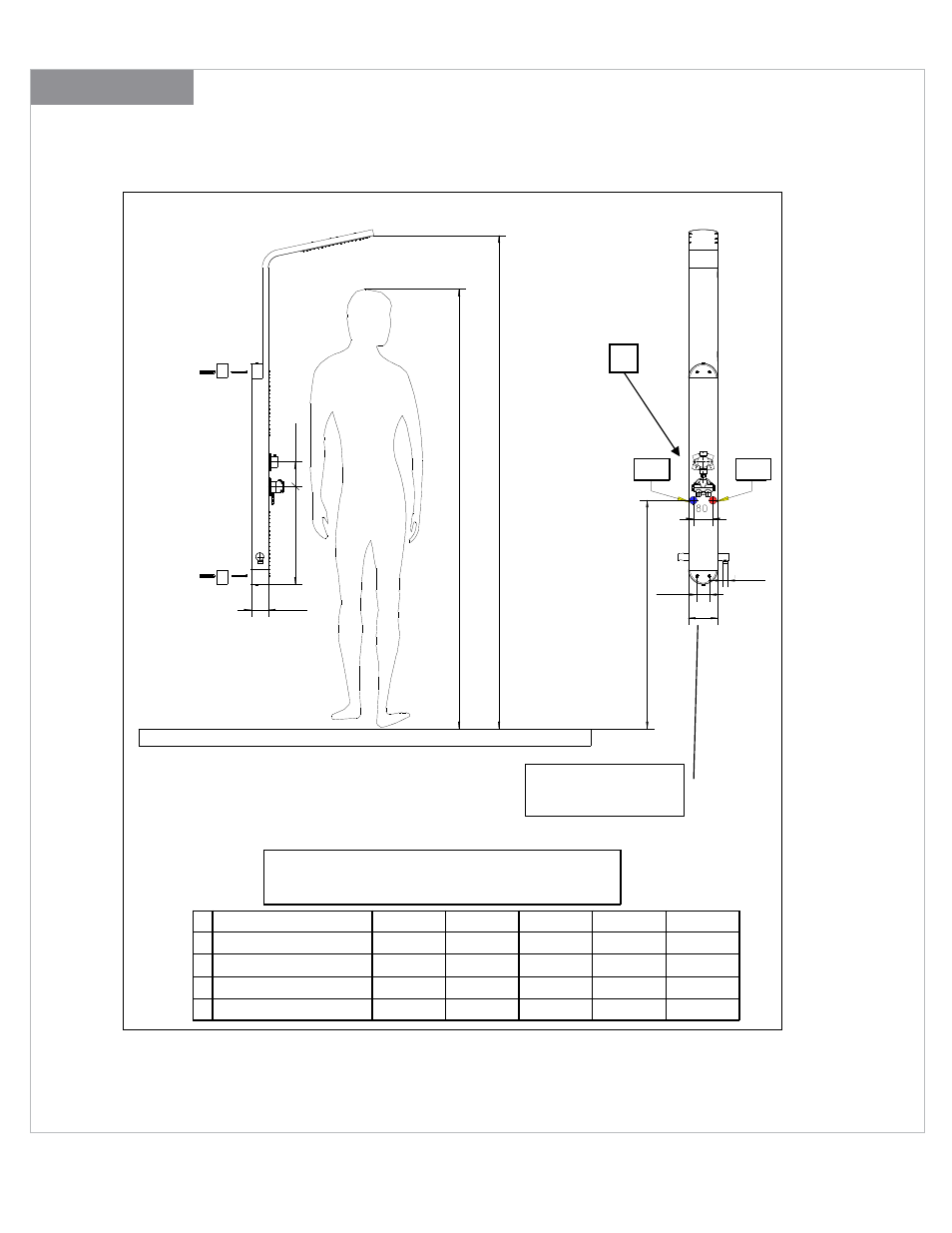

Installation Dimensions
H
(Heigt of person)
3.9in
15.4in
2.8in
2in
4.7in
0.5in
A
(Heigt of column)
E
(Heigt for hot & cold water supply)
COLD
HOT
INSTALLATION
