4| Compressor assembly

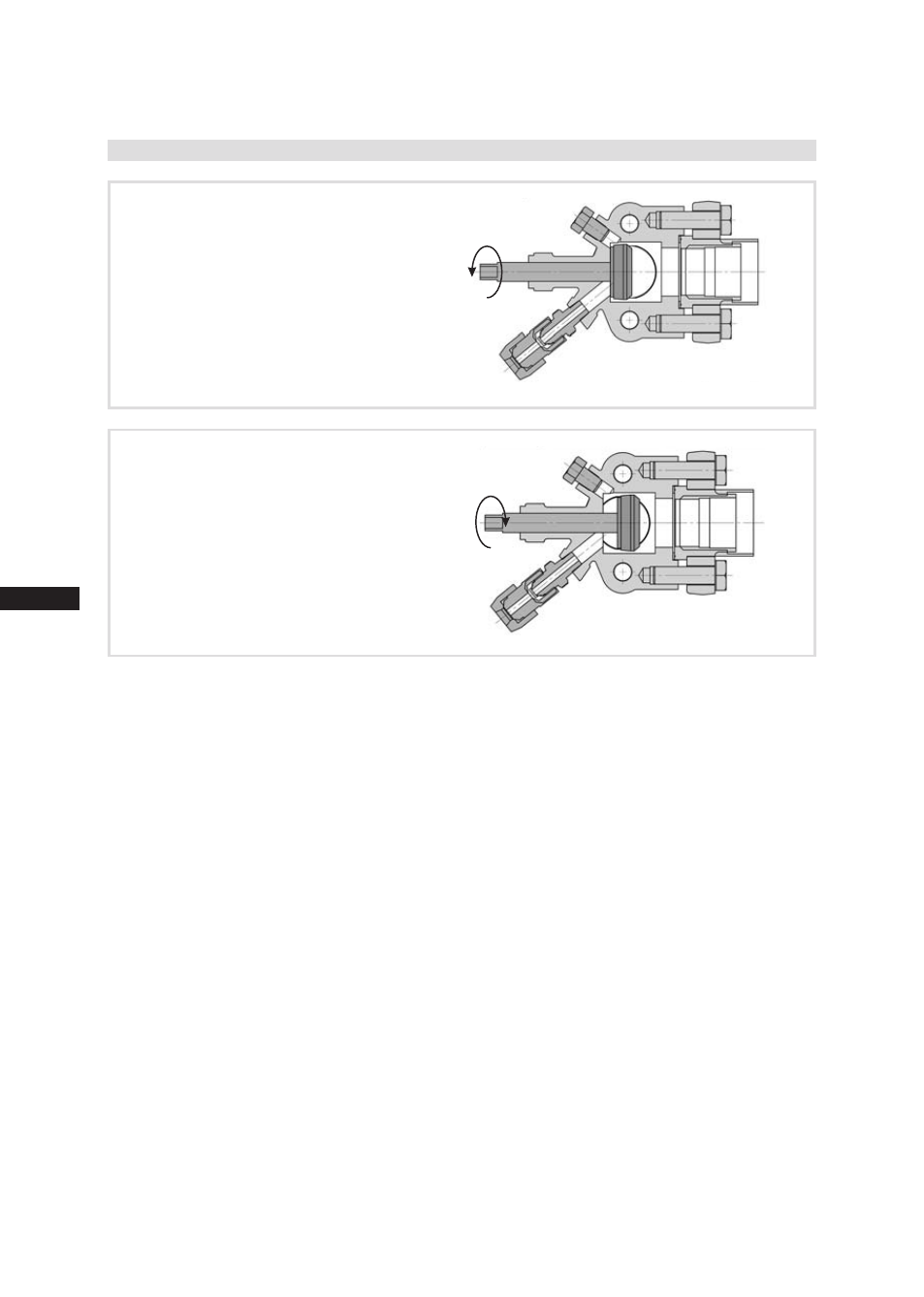

4.9 Operating mode of the lockable service connections

Fig. 16

Fig. 17

Opening the shut-off valve
Spindle 1: turn to the left (counter-
clockwise) as far as it will go.
—> Shut-off valve fully opened /
service connection 2 closed.

Opening the service connection (2):
Spindle 1:

1/2

- 1 rotation to the right

—> Service connection 2 opened /
shut-off valve opened.
Connection 3 is provided for safety devices
and is not lockable.

1

1

3

3

2

2
