4| Compressor assembly
4.1 Setting up
4.2 Maximum permissible inclination
A max. 30°,
max. 2 minutes
a max. 15°,
continuous
operation
ATTENTION! Poor lubrication can damage the compressor. Respect the stated
values.
INFO! New compressors are factory-filled with inert gas (3 bar nitrogen).
Leave this service charge in the compressor for as long as possible
and prevent the ingress of air.
Check the compressor for transport damage before
starting any work.

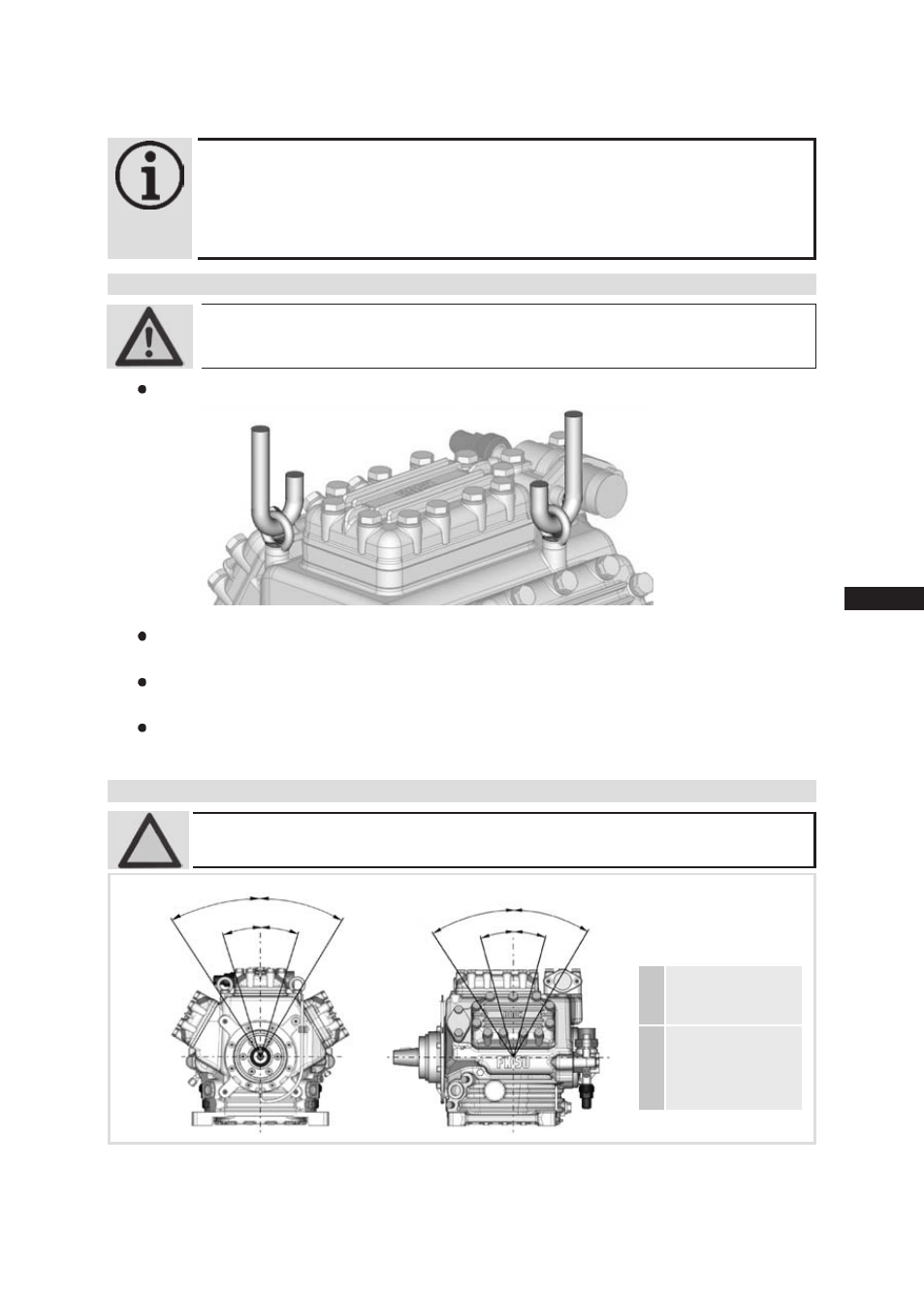

Fig. 8
Transport and suspension unit on both eyebolts (Fig. 8).
Fittings (e.g. pipe holders, additional units etc.) on the compressor are permissible only
following consultation with Bock.
Setup on an even surface or frame with sufficient load-bearing capacity. Use all 4 fastening
points.
Correct setup of the compressor and mounting of the belt drive are decisive for running comfort,
operating safety and the service life of the compressor.
WARNING! Move compressors only with hoists that have adequate load-bearing
capacity.
A
A
a
a
A
A
a
a
Fig. 9
