FRITSCH PULVERISETTE 9 - Manual (Page 6)

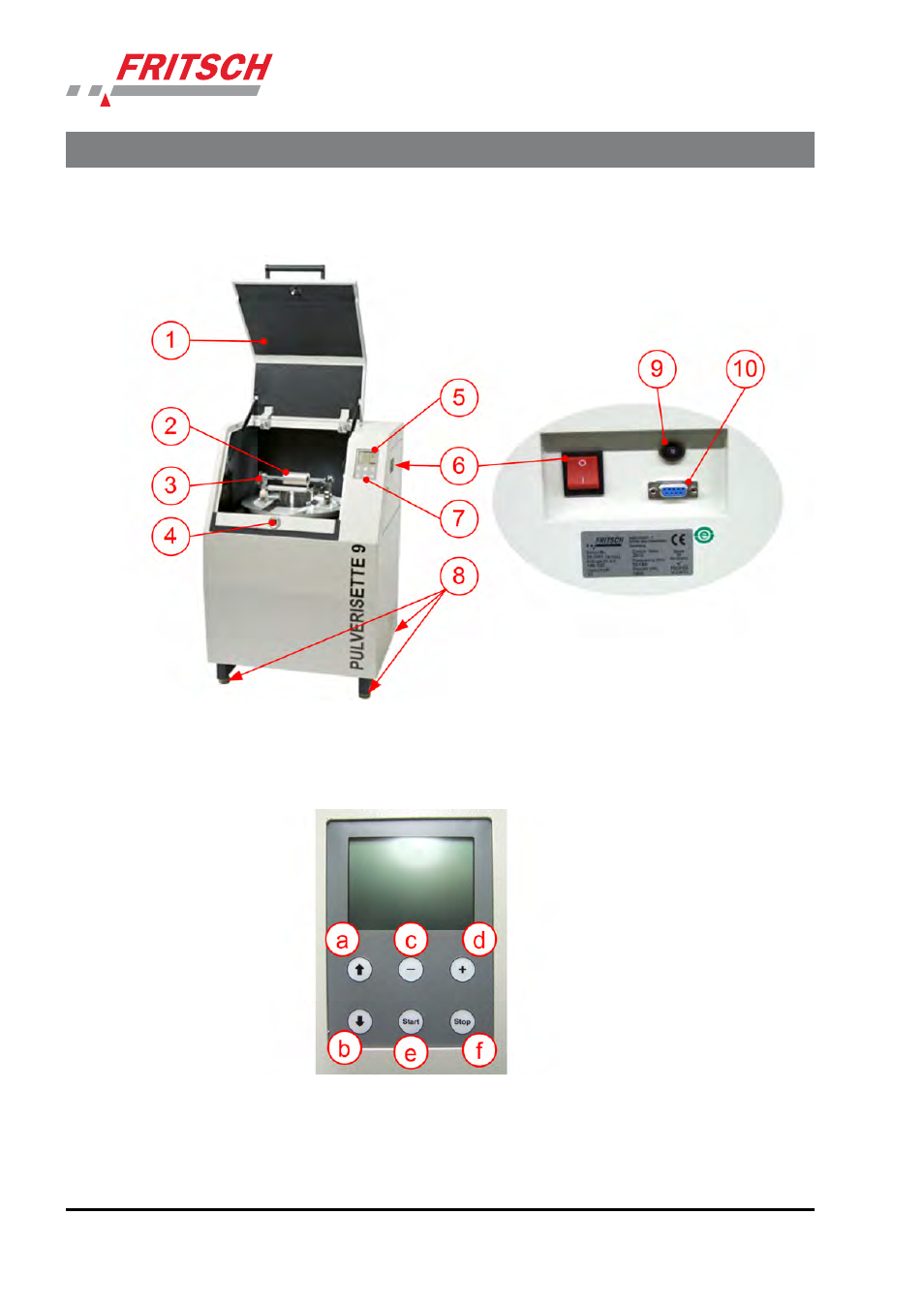

1 Basic structure
1 Hood
2 Eccentric tensioning roller
3 Clamping
4 Hood lock
5 Display
6 Main switch
7 Control panel
8 Height-adjustable device feet
9 Excess current protection switch
10 RS232 interface
a Up arrow key (menu navigation)
b Down arrow key (menu navigation)
c Minus key (menu navigation, changing the parame-
ters)
d Plus key (menu navigation, changing the parameters)
e Start key
f Stop key
Basic structure
- 6 -
