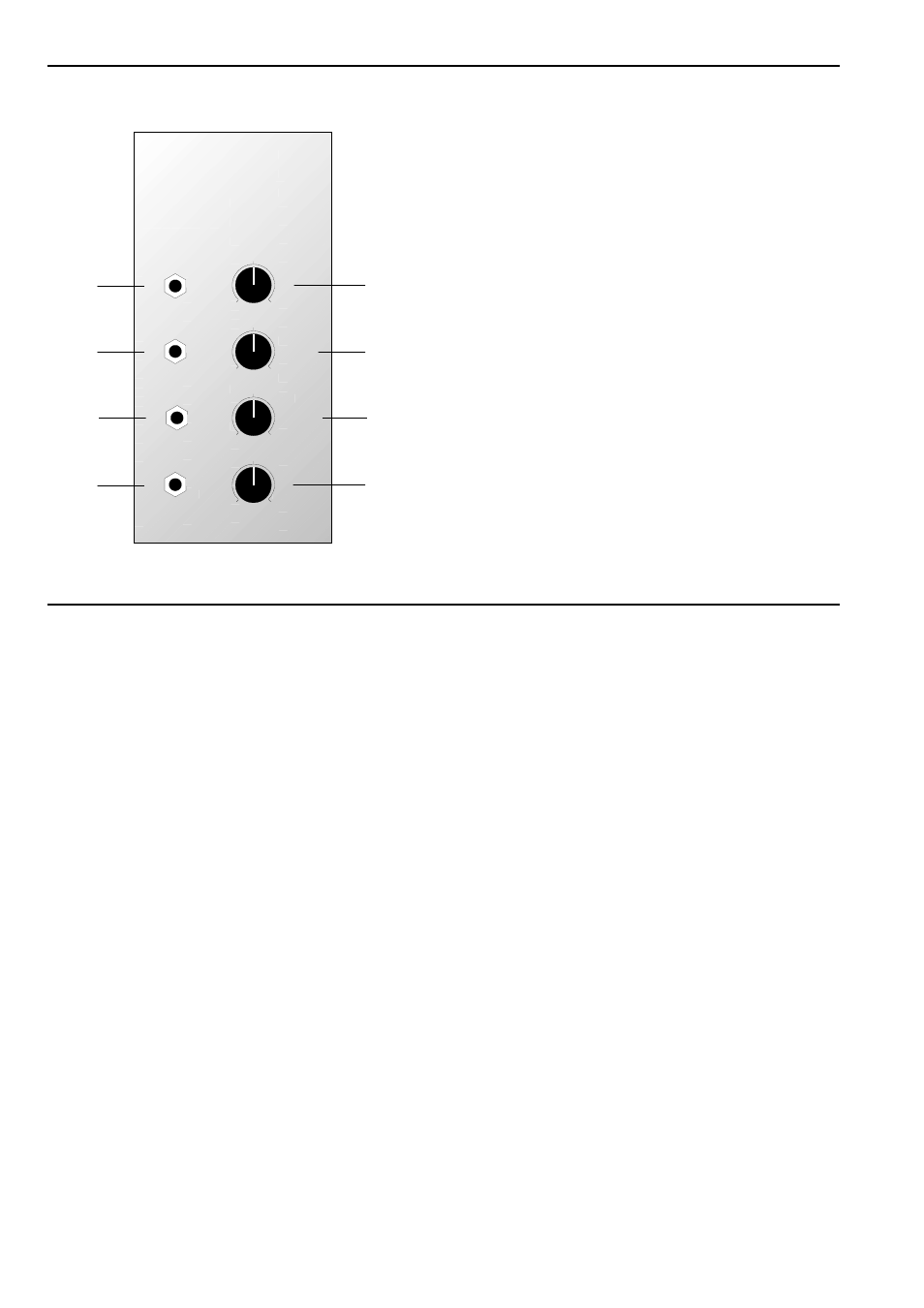

2. Overview Controls:
1 Level : Attenuator for the the audio
input signal at input !
2 Feedback : Manual feedback control, resp.
attenuator for external feedback
signal at socket "
3 Emphasis : Control for accentuation of
middle frequencies ~ 2kHz
4 Mix : Control for setting the relation
between original and reverb si-
gnal at mix output $
In- / Outputs:
! Audio In : Audio input
" ext. Feedback In : Input for external feedback
§ Reverb Out : Audio output pure reverb signal
$ Mix Out : Mix output containing both
original and reverb signal
(relation is adjusted with control
4
)
A-199 SPRV
Audio
In Level
Feedback
Emphasis
Mix
➀
➁
➂
➃
0 10
0 10
0 10
0 10
Spring Reverb
ext. Feedb.
In
Reverb
Out
Mix
Out
