Doepfer A-166 Logic Module - Manual (Page 2)

A-166 LOGIC System A - 100 doepfer
2

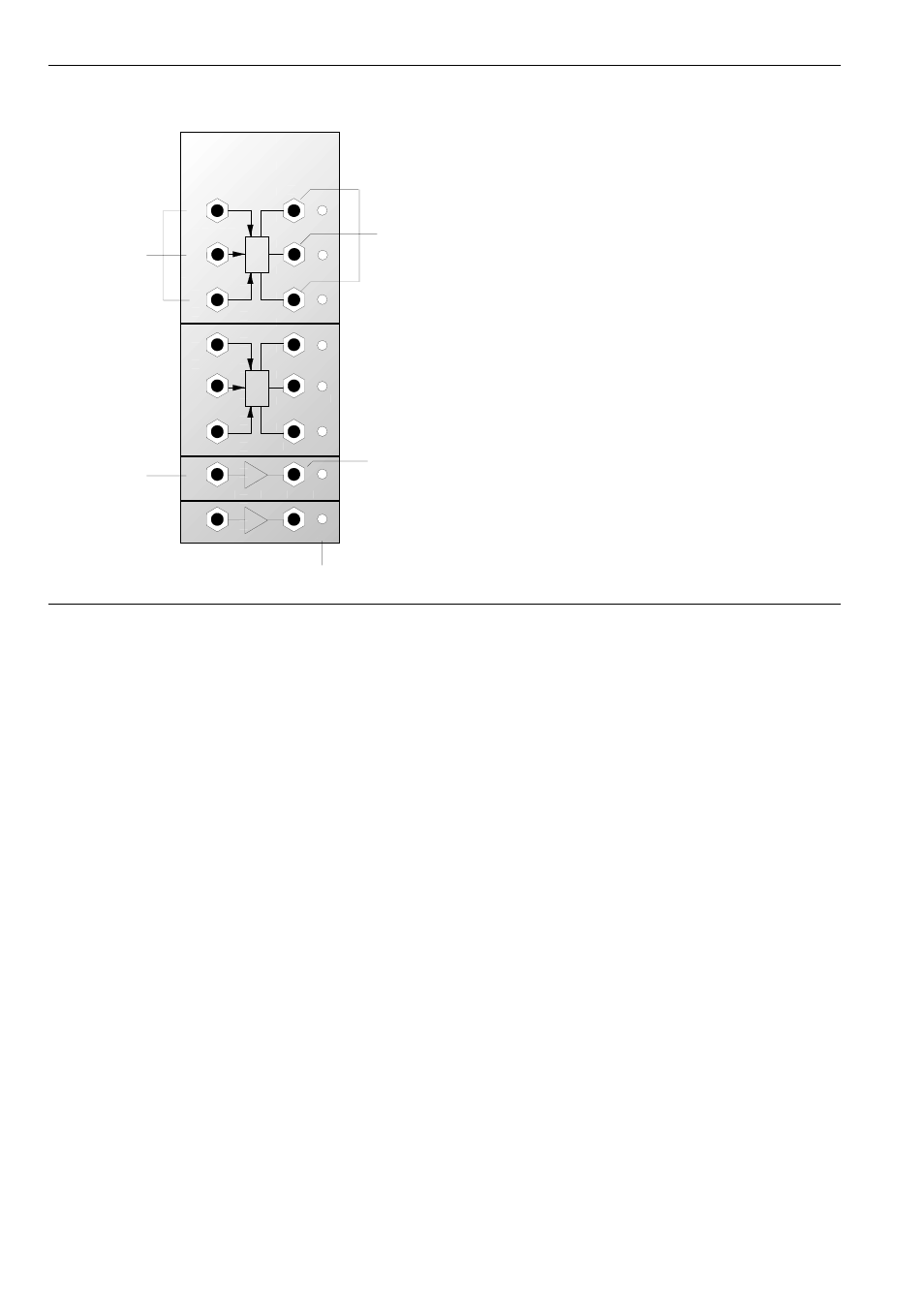

2. LOGIC - Overview Controls:
1 LED : Display of the logical state for the
corresponding output
In / Outputs:
! (Input) 1, 2, 3 : Inputs for the AND, OR,
and XOR function
" (Output) AND,OR,XOR: Output of the correspon-
ding function
§ (Input): Inverter input
$ (Output) INV: Inverter output
A-166 Logic
Dual Logic Module
➀
1
2
3
4
5
6
7
8
F
AND
OR
XOR
F
AND
OR
XOR
INV
INV
-1
-1
