Doepfer A-161 Clock Sequencer User Manual
System a - 100, A-161, Introduction

doepfer
System A - 100
Clock Sequencer
A-161
1
1. Introduction

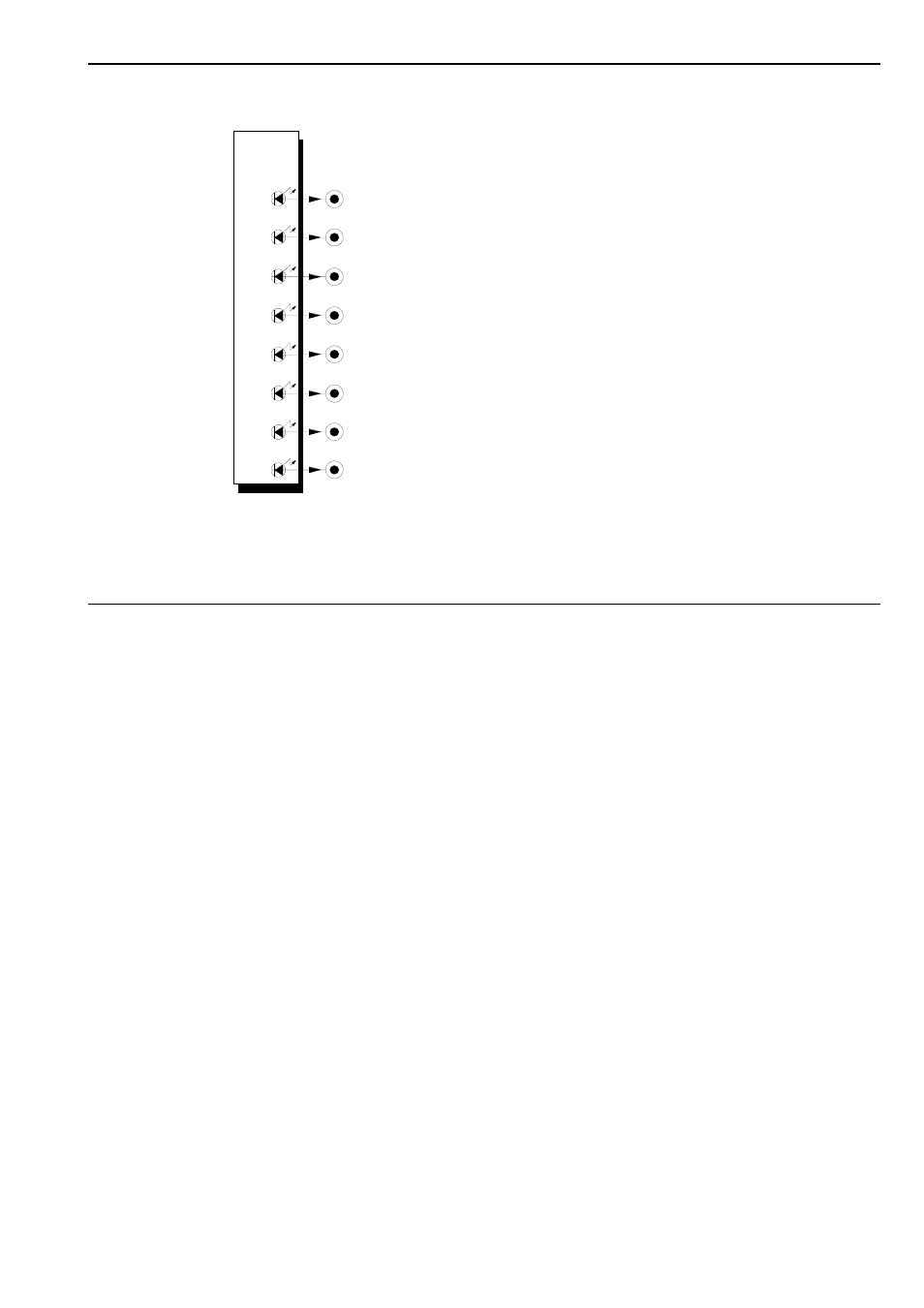

Module A-161 is an eight-step Clock Sequencer
which is internally connected to the Clock Divider
(A-160). Eight outputs are sequentially switched by
the clock signals from the A-160 (see Fig. 1) and can
act, for instance, as sequential rhythmic triggers for an
envelope. The reset on the A-160 also works on the
A-161 (instant return to Step 1).
A
Installation in the rack system:
The A-161 must be positioned directly to the
right of the A-160.
Join the two modules with the supplied 10-way ribbon
cable. Use the upper 10-way socket on each module.
Make sure that the ribbon cable isn’t twisted, and that
the colour-coded section is oriented the same on both
modules.
Only join the A-160 to the system bus! Leave the
lower 10-way socket on the A-161 unused.
A-161
1
2
3
4
5
6
7
8
Clock
Sequencer
