doepfer System A - 100
Voltage Addressed T&H/Switch A-152
3
Controls:
1 Address manual address control
2 CV attenuator for address CV input $
3 1...8 LED display (8x)
Inputs / Outputs:
! a SW I/O single multiplexer inputs/outputs (8x)
! b Common Switches In/Out
common multiplexer output/input
" a T&H Outs track&hold outputs (8x)
" b Common T&H Input
common track&hold input
§ Digital Outs digital outputs (8x)
$ CV In address control voltage input
% Clock In Clock input for the binary counter
% Reset In Reset input for the binary counter

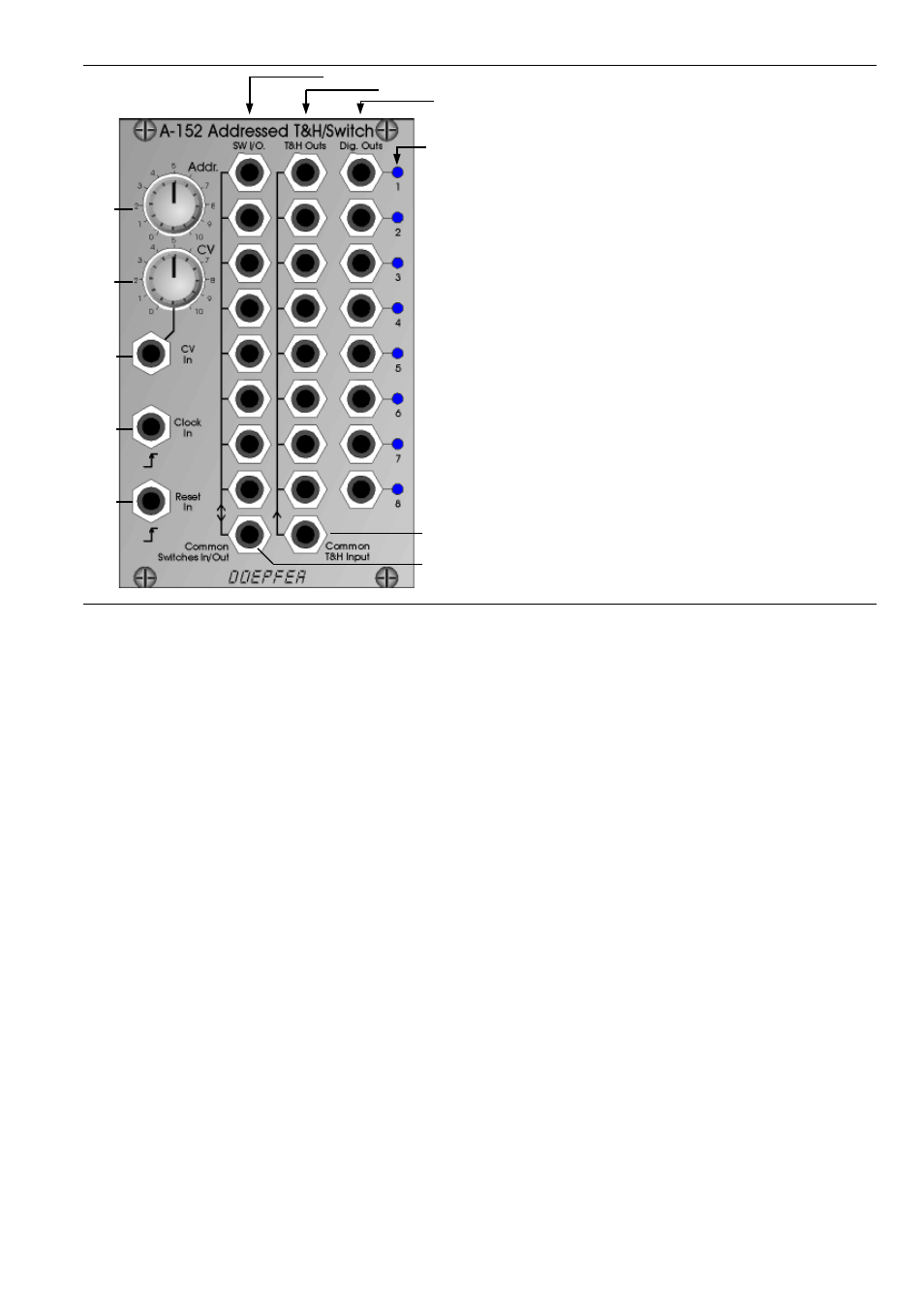

3. Overview
1
2
$
%
&
! a
" b
" a
§
3
! b
