Doepfer A-143-3 Quad LFO User Manual
Doepfer Audio

DOEPFER
DOEPFER
DOEPFER
DOEPFER
System A-100
Quad LFO A-143-3
1

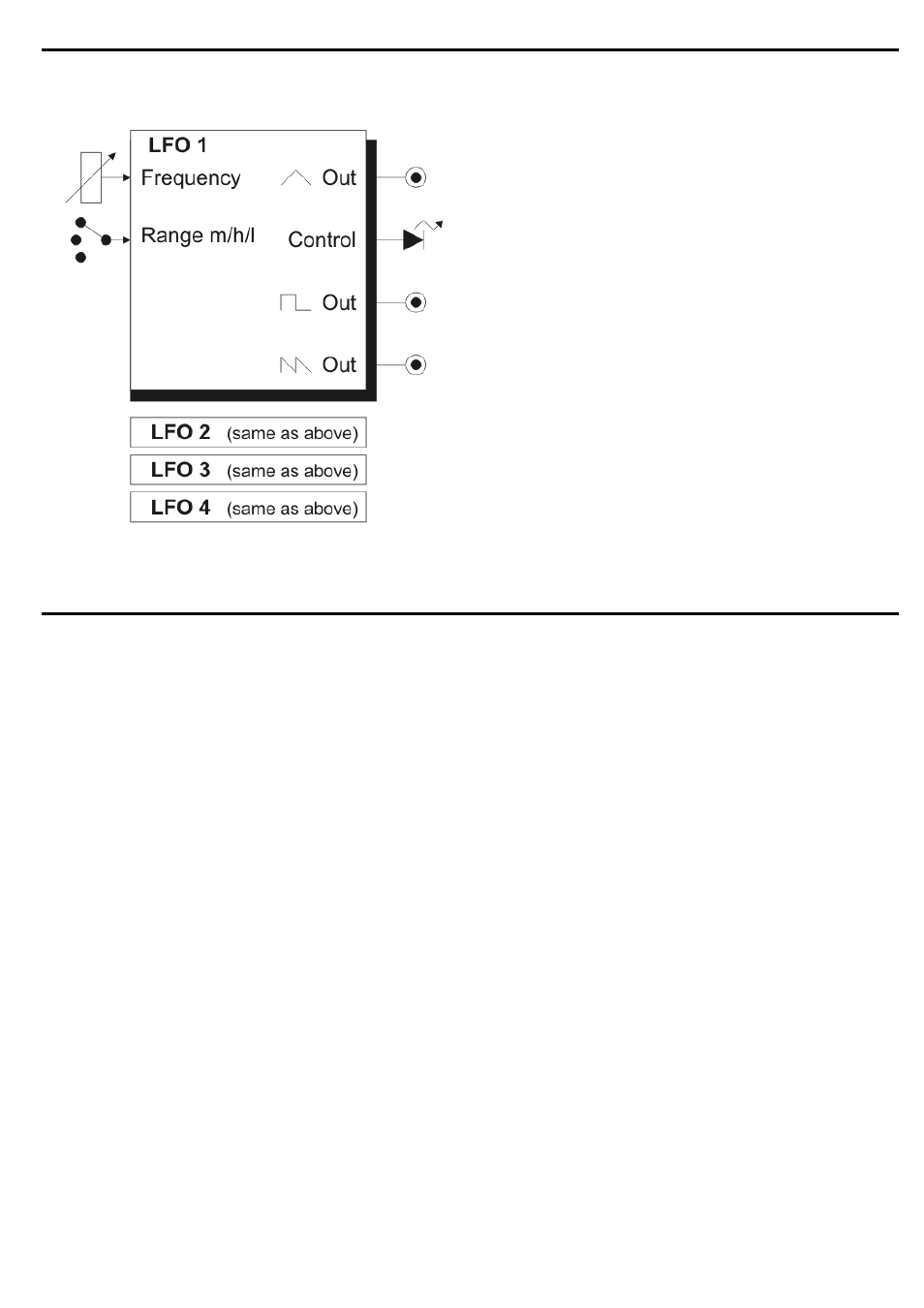

Fig. 1: A-143-3 Controls and Outputs
1. Introduction
Module A-143-3 Quad LFO is a low-cost four-fold
modulation oscillator and includes four independent low
frequency oscillators (LFO's), which produce cyclical
control voltages in a wide frequency range.
Three waveforms are available for each LFO: triangle,
square and sawtooth. The frequency of the sawtooth
output is twice the frequency of the other outputs.
The LFO's can be used as modulation sources for any
control voltage input of other modules - for instance
modulating the pulse width or frequency of a VCO,
modulating the cut-off frequency of a VCF or the phase-shift
of a VCP, amplitude modulation with a VCA, delay time of a
BBD module, parameters of a voltage controlled wave
shaper/multiplier, or any other control voltage input.
A three-way switch let’s you select three frequency ranges,
spanning from about two cycles per minute at the lowest, to
moderate audio frequency at the highest.
The module includes four identical units.
