A-135 VC-Mixer System A - 100 doepfer
4

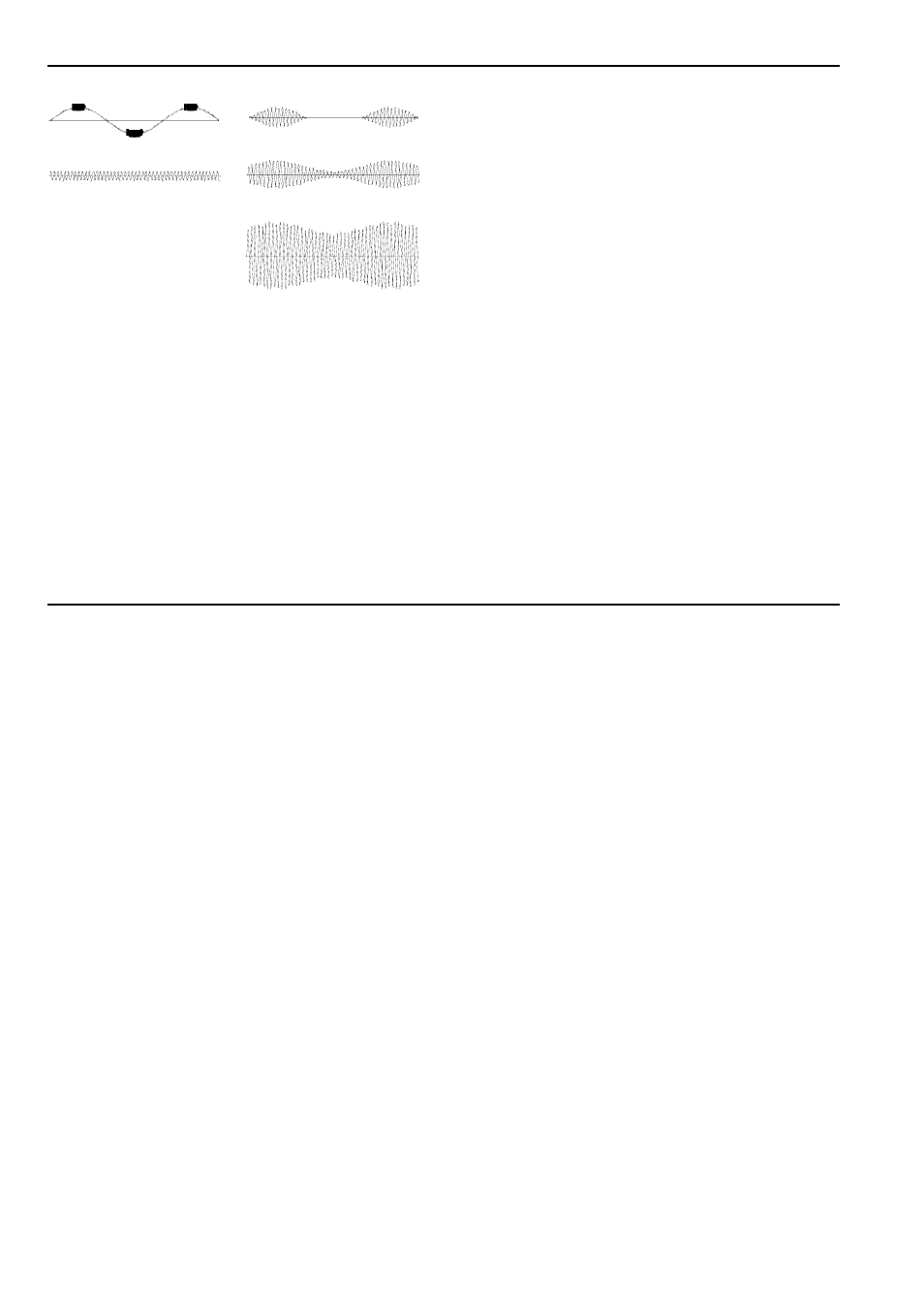

Fig. 2: Resulting amplification with bipolar control
voltage (CV) and different gain settings
3 ext. CV
This attenuator affects the level of voltage control at
socket ". It controls the amount of effect the CV has
on amplification.
4. In / Outputs
! Audio In
The signals you wish to amplify are input through the
four audio inputs !.
" Audio Out
The output signal " is the sum of the four audio inputs
amplified by the four VCAs.
§ ext. CV
Sockets § are the control voltage inputs.
The effective control voltage range of each VCA goes
from 0 V (no amplification) to about +5 V (maximum
amplification). The effective control voltage is the sum
of the voltages coming from the gain control 2 (about
0...+5V), and the external control voltage § that may
be attentuated with control 3.
CV Output ( Gain = 0 )
Output ( Gain > 0 )
Output ( Gain >> 0 )
Input
