Doepfer A-119 External Input/Envelope Follower - Manual (Page 2)

A-119
Ext. Input / Envelope Follower
System A - 100 doepfer
2

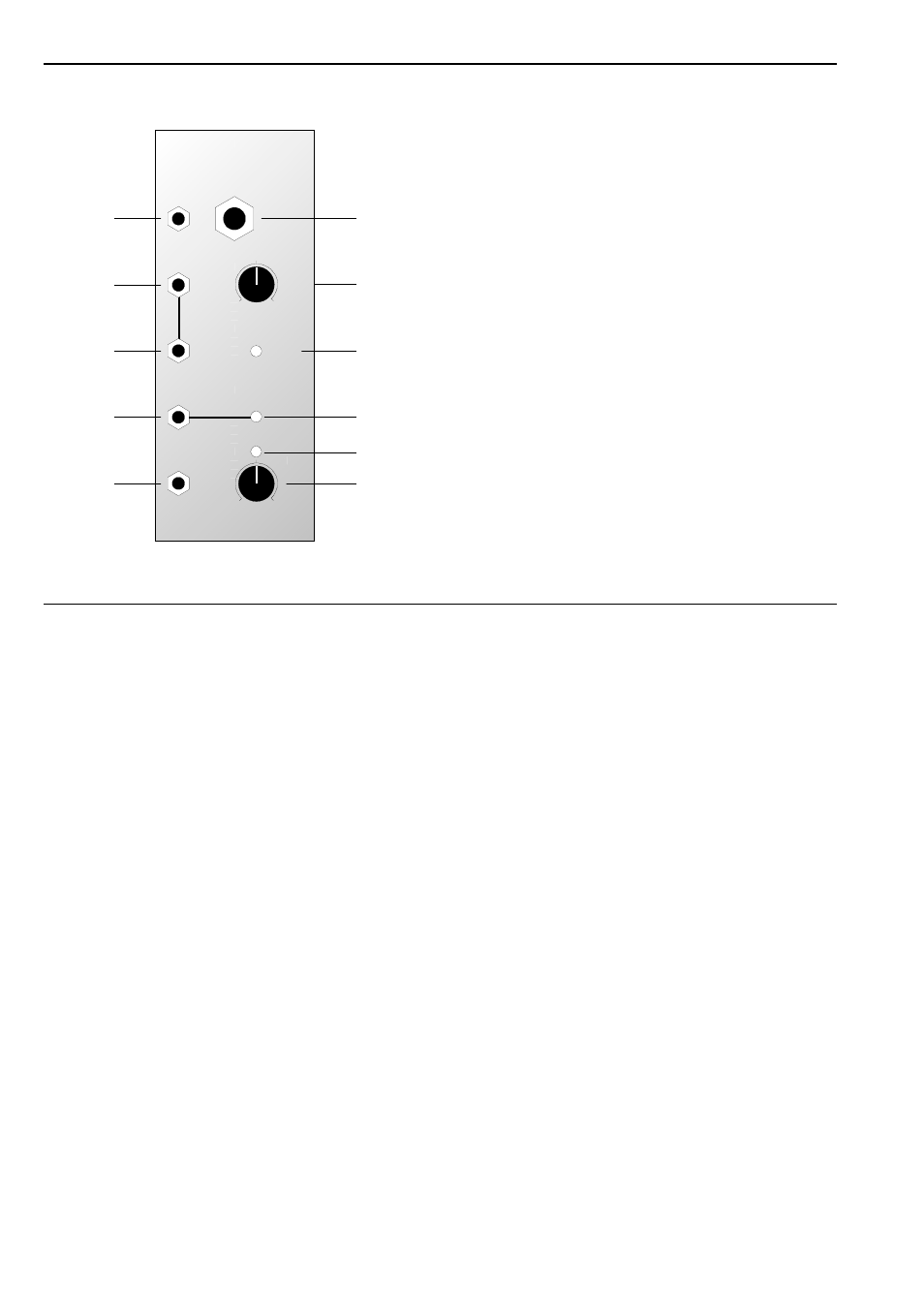

2. A-119 - Overview Controls and indicators:
1 Gain : Control for input signal level
2 Over-Load : LED overload warning
3 LED : Envelope level indicator at (output %)
4 LED : Gate indicator (output &)
5 Thres. : Trigger threshold control
In / Outputs:
! Asym. In : Unbalanced input for line-level audio
" Symm. In : Balanced input for mic or instrument-
level signals (6.3 mm jack socket)
§ Audio Out : Output for pre-amped audio signal
$ Audio Out : ditto, linked with output §
% Env. Out : Envelope output
& Gate Out : Gate output
A-119 Ext. In.
Audio Out
Envelope
Out
Gain
Over-
Load
Thres.
Asym. In
➊
➌
➍
➎
➏
➋
➀
➁
➂
➄
Ext. Input / Env. Follower
0 10
0 10
Gate Out
Symm.
In
➃
