doepfer System A - 100 VCO 2 A-111
13
$ H-Sync • % S-Sync
Sockets $ and % are the synchronisation inputs.
Socket $ is for hard sync, and socket % for soft sync.
& PCV
Socket & is the pulse width voltage control input
socket for the VCO’s rectangle wave. The level of
voltage can be adjusted with attenuator 6. Fig. 15
shows pulse width modulation with an LFO.

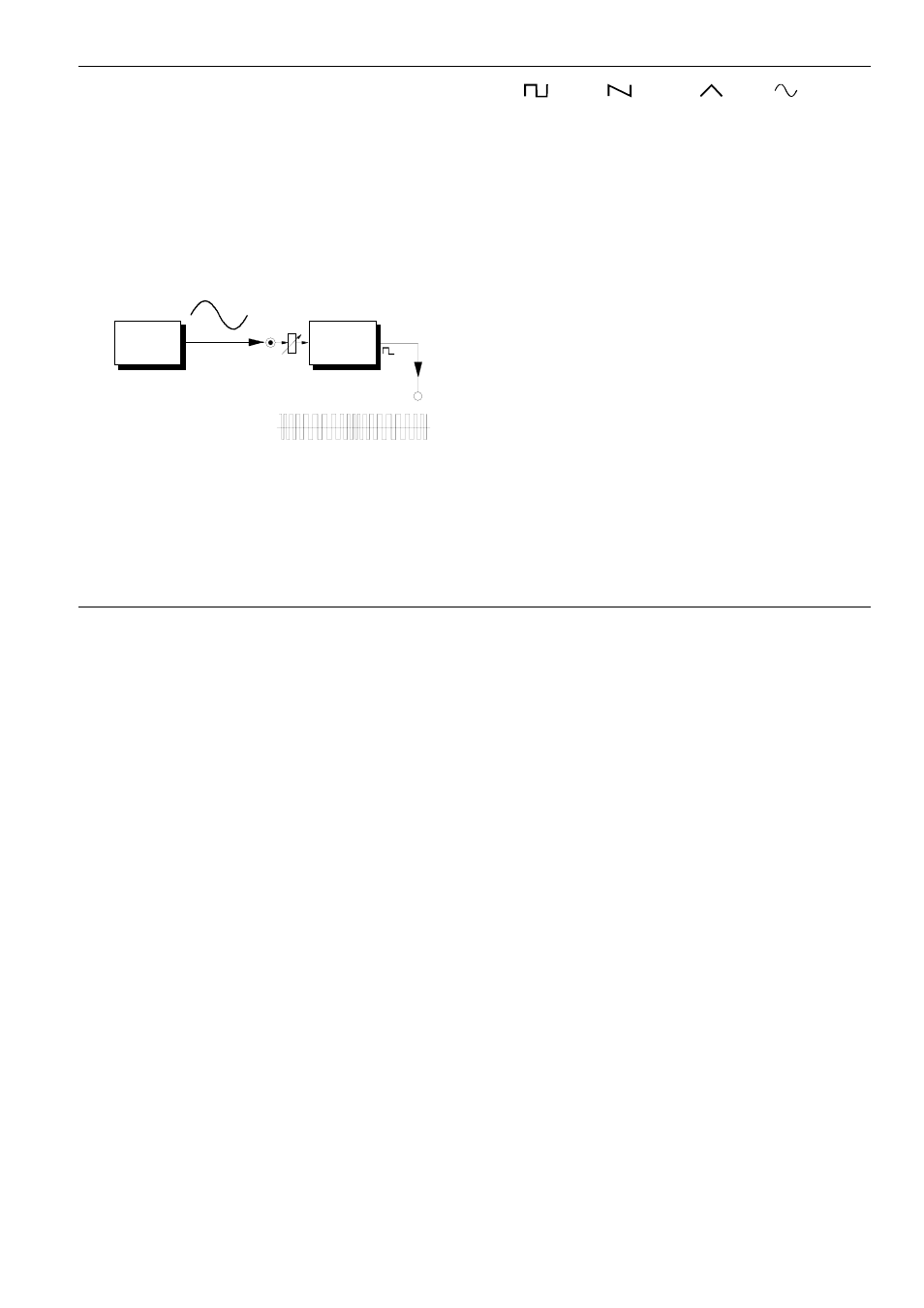

Fig. 15: Modulation of pulse width by an LFO
/ • ( • ) • =
Sockets / to = are the VCO outputs, each sending
out a different waveform: rectangle wave (/),
sawtooth ((), triangle ()) and sine wave (=).
The frequency of the waveforms at outputs / to = is
always the same for all.
LFO
PCV
A-111
