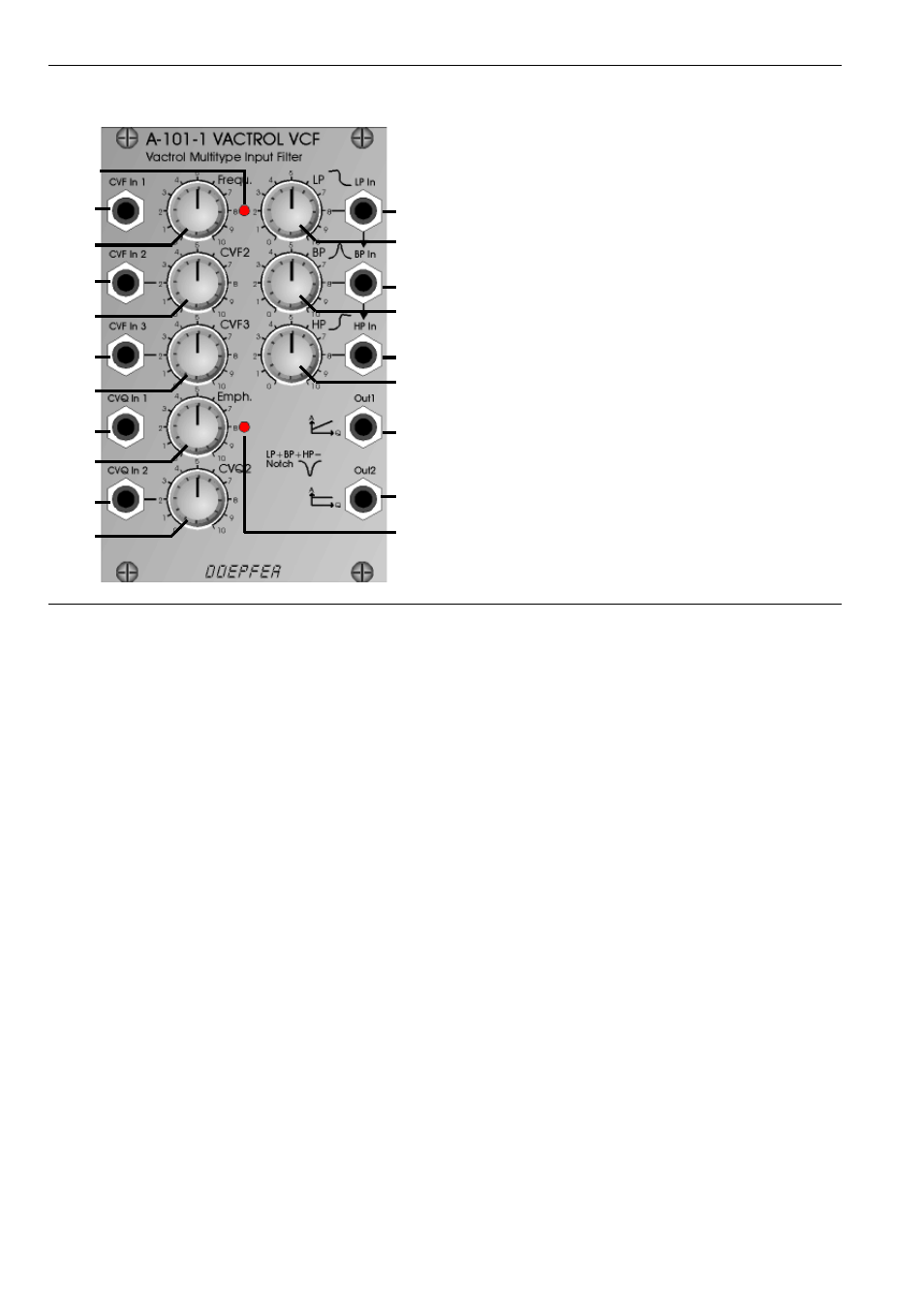

A-101-1 Vactrol Multitype Filter System A - 100 doepfer
2
Controls:
1 Frequency manual frequency control
2 CVF2 attenuator for FCV input "
3 CVF3 attenuator for FCV input §
4 Emphasis manual resonance control
5 CVQ2 attenuator for QCV input %
6 LP attenuator for LP audio input &
7 BP attenuator for BP audio input /
8 HP attenuator for HP audio input (
9 a/b LED controls for frequency and resoance
Inputs / Outputs:
! CVF In 1 frequency control voltage input 1
" CVF In 2 frequency control voltage input 2
§ CVF In 3 frequency control voltage input 3
$ CVQ In 1 resonance control voltage input 1
% CVQ In 2 resonance control voltage input 2
& LP In low pass audio input
/ BP In band pass audio input
( HP In high pass audio input
) a Out 1 audio output 1
) b Out 2 audio output 2
2. Overview
&
/
(
) a
) b
!
"
§
$
%
1
2
3
4
5
6
7
8
9 a
9 b
