AUGER SYSTEM
37
Auger Transmission
NOTE:
NOTE: The auger transmission on this model is generally
replaced as a complete unit. See Figure 4.32.
• The complete transmission assembly is relatively inexpen-
sive.
• All parts are available, but they are not described in the
Illustrated Parts List.
• Circumstances that may merit rebuilding an auger trans-
mission:
-The damage may be minimal
-The shop may repair lightly damaged transmissions during
slack times, so they have rebuilt transmissions on-hand.
-If complete transmissions are on back-order, but parts are available, a repaired transmission will work.
-Keeping some parts on the shelf gives shops the ability to make repairs with minimal investment in inventory.
Transmission Parts
Description Part # Quantity
Housing- right side 918-0123 1
Housing- left side 918-0124 1
Screw 1/4”-20 710-0624 5
22” Auger axle (shaft) 711-04286 1
24” Auger axle (shaft) 711-04285 1
Hi-pro key 3/16” x 5/8” 914-0161 1
Dowel pin 715-04021 1
Worm (impeller) shaft 917-04164 1
Helical bronze gear 0-T 917-0528A 1
Thrust collar 718-04071 1
Plug 721-0325 1
Oil seal 721-0327 1
Flat washer, 3/4” I.D. 936-0351 2
Flat washer, 1/2” I.D. 736-3084 1
Flange bearing, 3/4” I.D. 741-0662 1
Flange bearing, 1/2” I.D. 741-0663 1

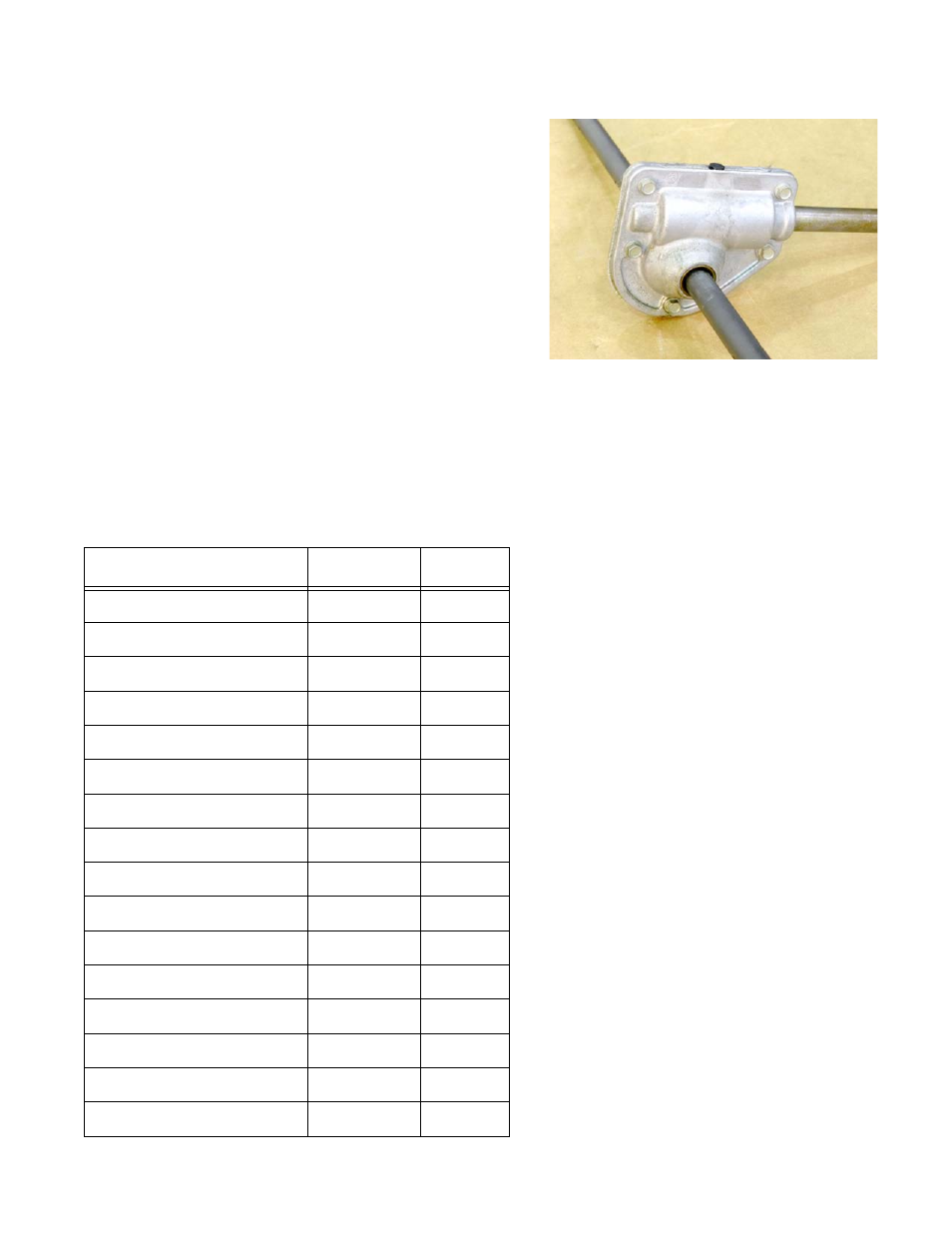

Figure 4.32
