AUGER SYSTEM
23
System Description
• The auger and impeller are driven by a belt from the engine crankshaft.
• An idler pulley is drawn against the belt when the control bale is engaged.
• The belt then drives a large pulley on the back of the impeller shaft.
• The impeller shaft enters the rear of the auger housing, driving the impeller through a roll pin.
• The impeller shaft continues forward to a “T” shaped worm-gear transmission.
The transmission drives the auger shaft.
• The auger system uses four individually stamped flights that draw the snow inward and into the impeller.
• The impeller then throws the snow out of the discharge chute with more force than augers alone could gener-
ate.
Auger belt removal
1. Remove the belt cover:
1a. Remove the screw on the right side of the belt cover
with a 5/16” wrench or screw driver.
1b. Squeeze the locking tabs on the belt cover inward
while lifting. See Figure 4.1.
1c. Work the cover from between the engine and discharge
chute
2. Tip the snow thrower forward onto its auger housing.
3. Remove the belt keeper located under the auger pulley.
Use a 1/2” wrench. See Figure 4.2.

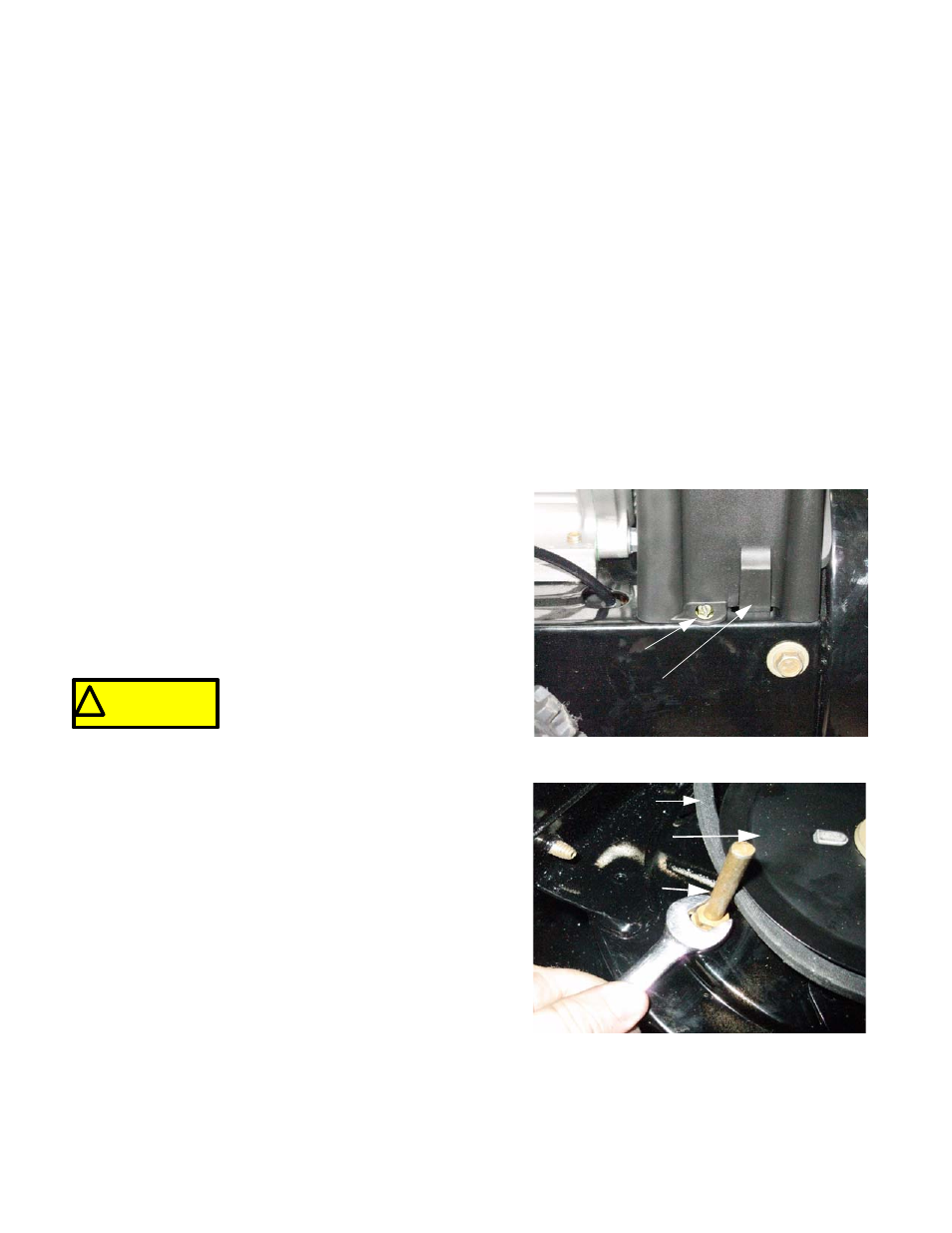

Figure 4.1
Screw
Lock tab
! CAUTION ! CAUTION
Allow the engine to cool, then drain
the fuel and oil from the engine before
starting any service procedure.
Figure 4.2
Auger belt
Auger pulley
Belt keeper
CHAPTER 4: AUGER SYSTEM
