NVR User Manual

Step 3: Open IE browser, input IP address, or dynamic domain name and enter. If HTTP port is not 80, add the port number after
IP address or domain name.
Step 4: IE will download ActiveX automatically. Then a window pops up and asks for user name and password. Input name and
password correctly, and enter to view.

Note: If you cannot download and install ActiveX, please refer to FAQ Q8.

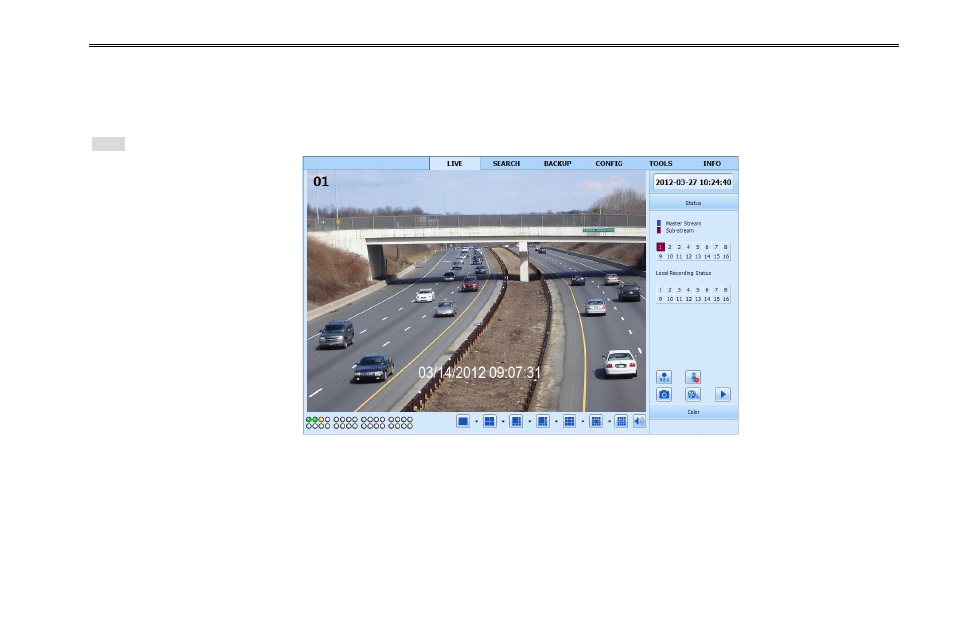

Fig 8-1 View with IE Browser

2. Connect the NVR to internet through PPPoE directly.
Step 1: Enter into the NVR‟s Main MenuSetupNetwork interface to enable PPPoE and then input user name and password
received from your ISP. Next, click „Apply‟. The NVR will connect to the server and would give a confirmation message.
Step 2: When accessing the remote interface of NVR, user can input WAN IP to access directly (user can enter into Main
menuInformationNetwork interface to check IP address).
