4.2 Live Configuration
Live configuration includes three submenus: live, main monitor and mask.
4.2.1 Live
In this tab, user can setup camera name.
Step1: Enter into MenuSetupLiveLive tab. Refer to Fig 4-6:
Note: A soft keyboard will pop up by clicking the camera name. User can self-define the
camera name.
Step2: Checkmark the Show Name when you set your camera name.
Click “Default” button to restore the default setting, click “OK” button to save the
setting.
Step3: Select “All” to setup the same settings for all channels.

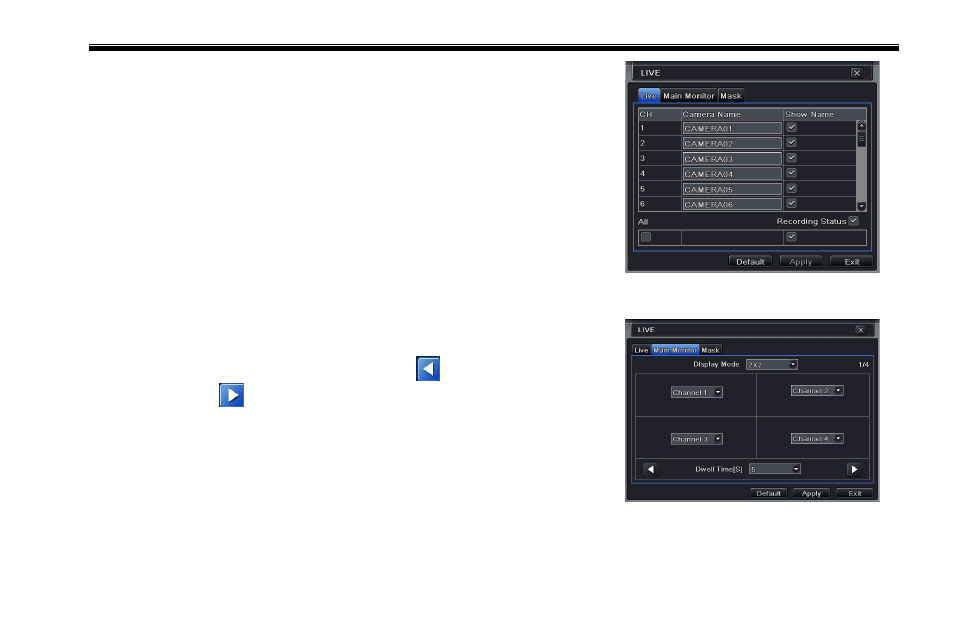

Fig 4-6 Live Configuration-Live
4.2.2 Main Monitor
Step1: Enter into MenuSetupLiveMain Monitor tab. Refer to Fig 4-7:
Step2: Select split mode: 1Ч1, 2Ч2 and channel. Click button to setup the previous
channel group. Click button to set the latter channel group.
Step3: Set the dwell time.
Step4: Click “Default” to restore default setting; click “Apply” to save the setting; click
“Exit” to exit the current tab.
Fig 4-7 Live Configuration-Main Monitor
4.2.3 Mask
You can setup private mask area on the live image picture. For a given channel a maximum of three areas can be masked.
Setup mask area: click setting button, enter into live image to press left mouse and drag mouse to set mask area. Please refer to the below
