Operation Manual for Intelligent Speed Dome Camera
15

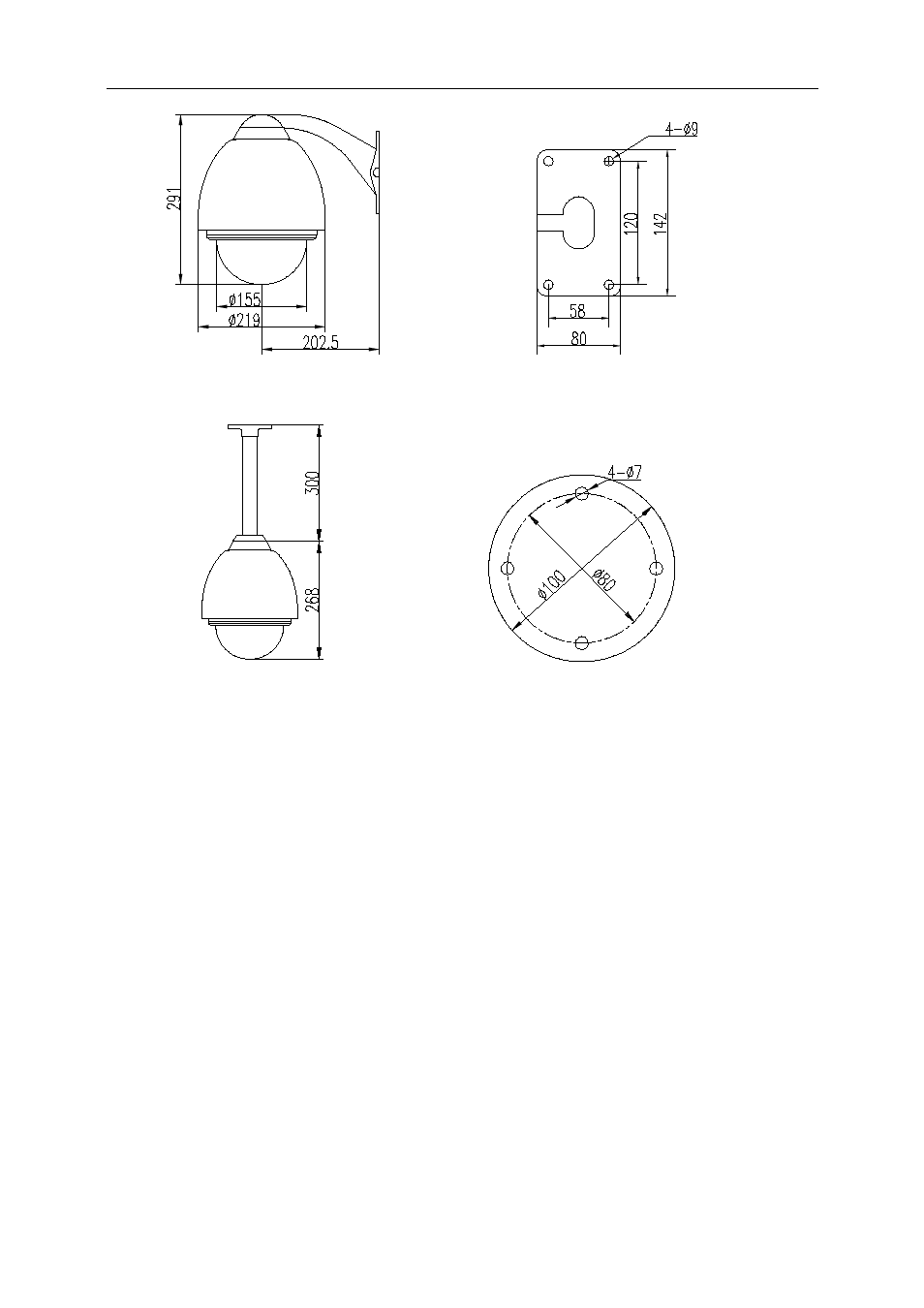

Figure 4
b) In-Ceiling Installation
Figure 5
2. Steps of Installation (taking wall-mounting as example)
1)
Unpacking the carton and carefully take out the dome camera and its attachments.
2)
Rotate the vitreous cover counterclockwise and take out it. (see Figure 6) Note: It can
be ignored the steps 2,3,4,5 while the protocol and address are matching with the
controller.
3)
Take out the black liner. (Figure 7)
4)
Based on the ID-CODE shown as Figure 2, set up the protocol used by the camera
and the baud rate as per the state according to Table 1. Check the address of the
camera to see if it is matched with that you need. If not, set the address of the dome
camera at corresponding position as per Table 1.
