VII. Technical Specifications：
me Camera and Controller：Port to multi-port and half duplex
funct
aud rates i.e. 2400Bps, 4800Bps, 9600Bps and 19200Bps.
Spe
e Camera up to 32.
VII
al of the keyboard carefully before using it.
otocol. For other different
alone,

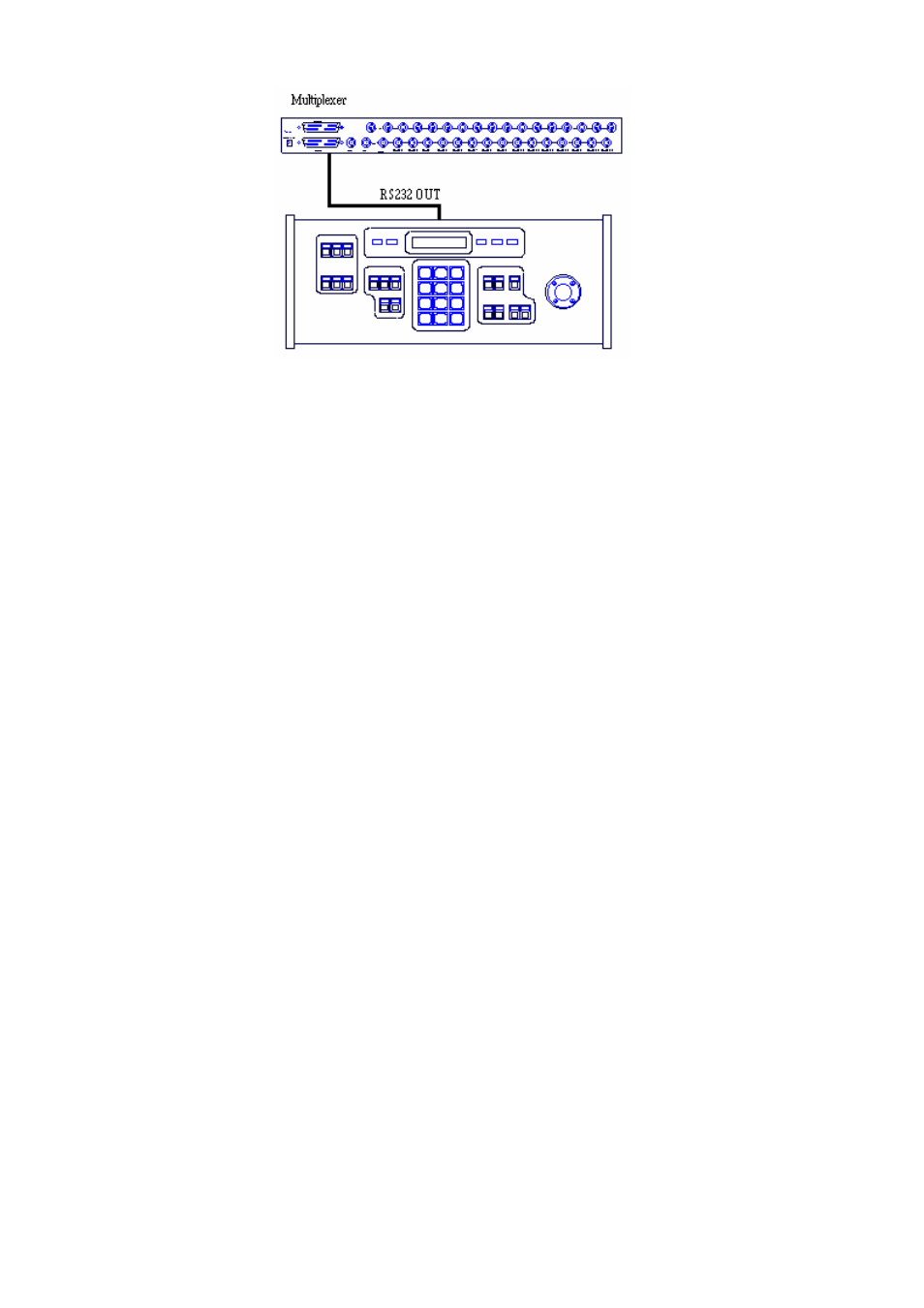

Figure7
Communication between Speed Do
ion.
Communication connector: RS-485.
Baud Rate of Communication：Four b
Distance of Communication：1200 M
in maximum
m
Power Supply：DC12V/800
A
）
Size： 380 Ч 165 Ч 80（mm
ht
Weig ：2 Kg
d
ed Dom
Number of Controlle
I. Points for Attention：
Please read the operation manu
The operation manual is mainly focused on all functions of B01 Pr
protocols, operations could be something difference and those different parts will be listed on
“Supplementary Description of the Keyboard Controller” in details.
The keyboard takes 12V DC power supply. Please confirm the voltage and polarity before the power
supply is switched on.
Do not place the keyboard under the rain or on wet place so as to avoid short circuit or electrical shock.
As the keyboard is a sophisticated electronic device, you should never open the case so as to avoid the
occurrence
of
trouble.
The keyboard has integrated multiple protocols, and you are pleased to select correct protocol and the
baud rate. When switching on power supply, take care of the selected protocol and the baud rate on the
first
screen.
In case the keyboard controls the Multiplexer, the operation of combination buttons is as follows:
Press one button first, and press the other button after release the first one.
For
example：When enter/exit setting of the menu (Function + Zoom), press Function button first, and
press
Zoom button after Function button is released.
In case the keyboard controls the multiplexer, the operation of combination buttons is as follows:
Press one button first,and press the other button after release the first one. While use Function
please put it down, until“Motion Detect OK”appears.
When the keyboard controls the Multiplexer, please refer to concerned operation manual of Multiplexer
