page 3 page 10
TORQUE MEASUREMENT TORQUE MEASUREMENT
SPECIFICATIONS
Measuring range Model lbf-in lbf-ft kgf-cm N-m cN-m
DIW-15 2.0~130 — 2.0~150 0.20~15 20~1500
DIW-20 2.0~180 — 2.0~200 0.20~20 20~2000
DIW-75 2.0~650 — 2.0~750 0.20~75 20~7500
DIW-120 20~1040 2.0~87.0 20~1200 2.0~120 —
Accuracy ± 0.5% F.S., ±1 LSD
Display 4 digit LCD
Operation CW, CCW and stepless CW one-way clutch
Measuring modes PP: Peak Mode displays PEAK torque value that will not change until a
higher value is measured.
PD: Peak Down Mode Captures first peak down value above the PDLO
GO: Real Time Mode displays transient torque values
C: Real-time Output 160 data per second
GO/NO GO testing Programmable High and Low setpoints with both audible beep and
Green/Red LED indicator
Statistics Maximum, minimum, average and number of data
Data transfer ASCII, 19200 bps, USB miniB cable
Data memory 800 data
Batch Counter 1-99 (CW only)
Power supply Ni-Cad rechargeable batteries 1.2V×4cells 600mAh
Auto power save Automatic switch off after 10 minutes of non-use
Charging time From empty - less than 5hours
Working time 12 hours continuous use
Drive DIW-15 1/4", DIW-20 3/8", DIW-75 3/8", DIW-120 1/2"
Accessories AC/DC Adapter/Charger, 100~230VAC, NIST certificate

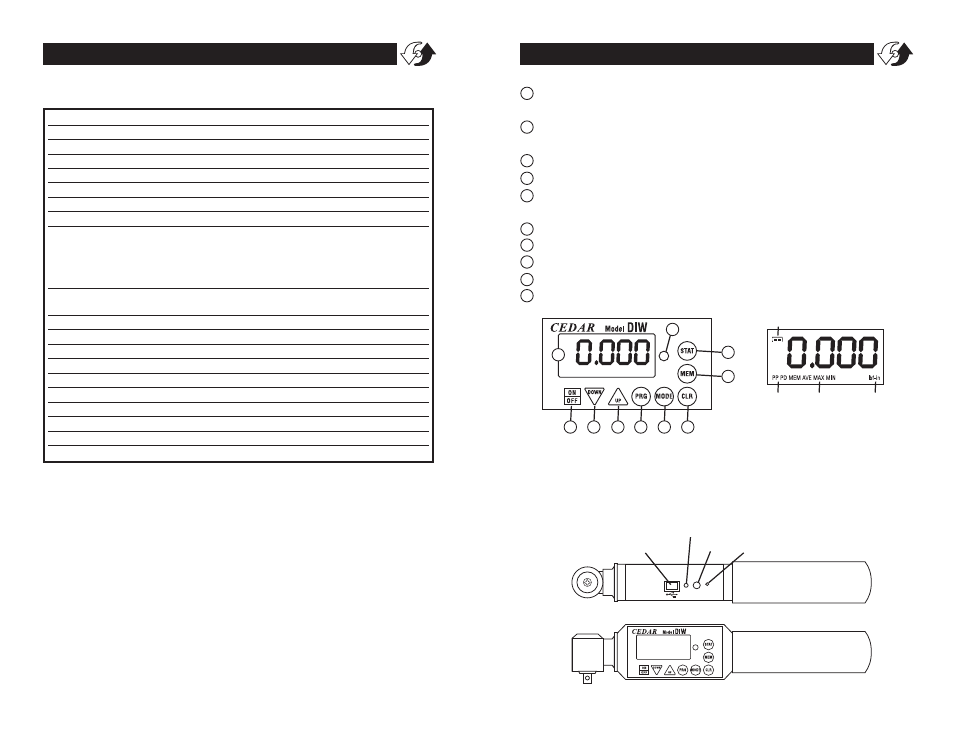

ON/OFF Press to turn on or off (click once, do not hold). After 10
minutes of non-use the unit shuts off.
MODE Select GO (Real Time), PP (Peak), PD (Peak Down), C
(Continuous Output mode)
CLEAR Reset display to zero and send data to memory
LCD display Displays torque value, battery icon, mode & units.
GO/NG Indicator Green for values between LO and HI setpoints,
flashing red for values above HI, solid green for data output
DOWN Change values or numeric places
UP Change values or options
PRG Enter programming mode or enter values
MEM Display memory locations and data
STAT Display statistics; number of records, Max, Min, and Ave
DC IN USB PORT RESET
CHARGE LIGHT
6 7 8
9
10
2 1 3
BATTERY ICON
MODE STATS UNITS
4
5
USB Port Send data to computer via USB cable
Charge light lights when charging, off when complete.
DC IN AC charger/adapter receptacle
RESET System reset button
1
2
3
4
5
6
7
8
9
10
