California Faucets Pressure Balance PB-R Extension - Manual (Page 2)

EXT-PB-R_ii_110128.doc Pg 2
2b
3
2c
1 /
32
”

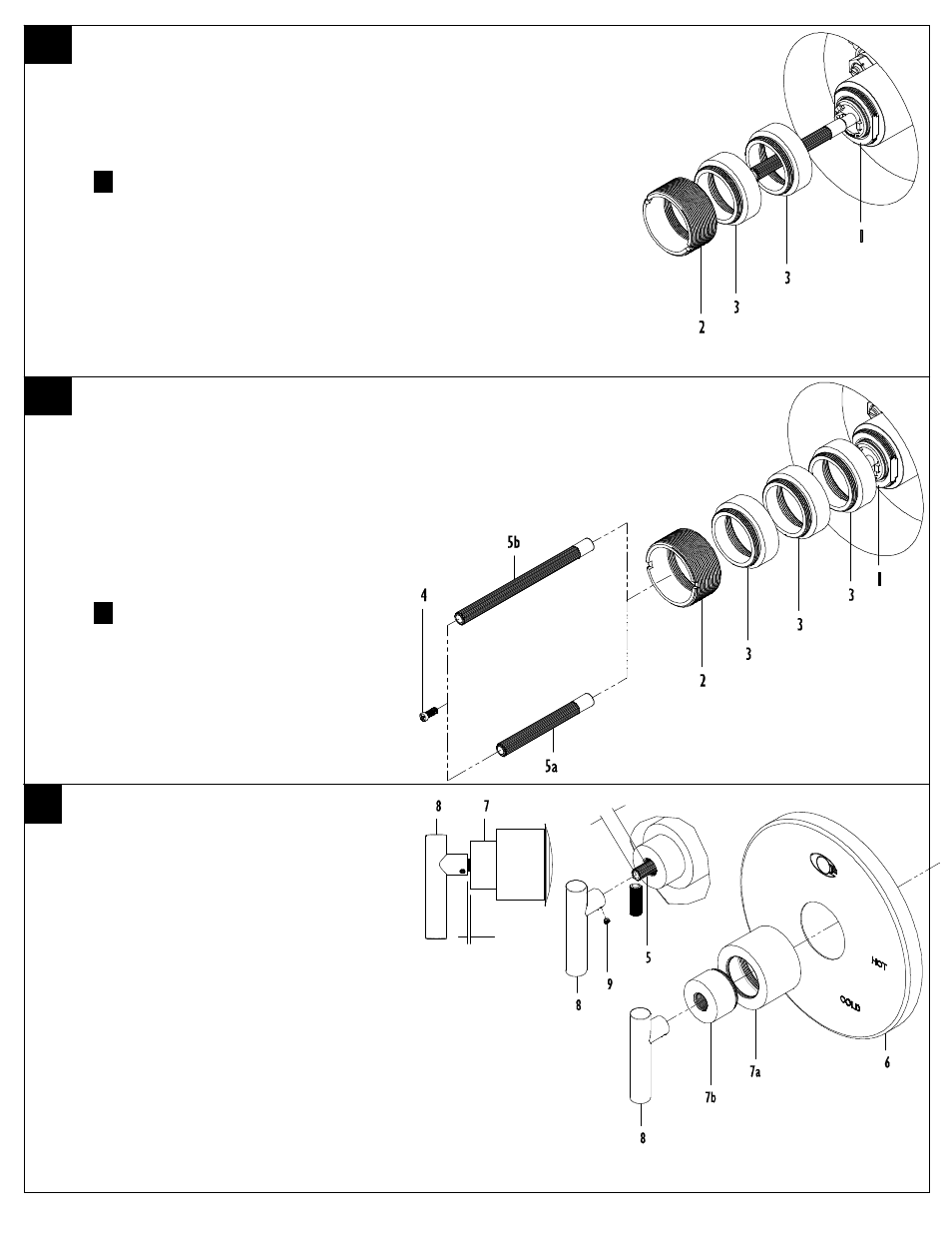

INSTALL EXTENSION KIT EXT-PB10
• Attach two (2) EXTENSION SLEEVE (3) onto
CARTRIDGE NUT (1)
• Attach BUSHING (2) onto EXTENSION SLEEVE
(3)
• See . 3 . INSTALL TRIM
INSTALL EXTENSION KIT EXT-PB15
• Attach three (3) EXTENSION SLEEVE (3) onto
CARTRIDGE NUT (1)
• Attach BUSHING (2) onto EXTENSION SLEEVE
(3)
• Remove SCREW (4) and STEM (5a) from valve
• Attach EXTENDED STEM (5b) to valve using
SCREW (4)
• See . 3 . INSTALL TRIM
INSTALL TRIM
•
Place SHOWERPLATE (6) onto BUSHING (2)
• Tighten ESCUTCHEON (7a) onto BUSHING (2)
until SHOWERPLATE (6) is secure to finished wall
surface. An additional BONNET (7b) may be
supplied based on product style, this BONNET
(7b) shall be attached to ESCUTCHEON (7a)
prior to affixing HANDLE (8)
• Trim STEM (5) to allow ½” of STEM (5) to
protruded out from ESCUTCHEON (7)
• Place HANDLE (8) onto STEM (5)
• Allow for
1 /
32
” (thickness of credit card) of gap
between ESCUTCHEON (7) and HANDLE (8)
• Tighten SETSCREW (9) to secure HANDLE (8)
onto STEM (5)
½”
www.calfaucets.com 5231 Argosy Ave. Huntington Beach, CA 92649 800-822-8855
