Brookfield UL Adapter User Manual
Ul adapter

Brookfield Engineering Laboratories Inc.
- 1 -
Operating Instructions M/91-080-I1003
B R O O K F I E L D E N G I N E E R I N G L A B O R AT O R I E S , I N C .
11 C o m m e r c e B o u l e v a r d • M i d d l e b o r o , M A 0 2 3 4 6 U S A
I S O 9 0 0 1 C E R T I F I E D
T
E L
5 0 8 - 9 4 6 - 6 2 0 0 o r 8 0 0 - 6 2 8 - 8 1 3 9 F
A X
5 0 8 - 9 4 6 - 6 2 6 2
w w w . b r o o k f i e l d e n g i n e e r i n g . c o m
UL Adapter
Assembly & Operating Instructions
No. M/91-080-I1003

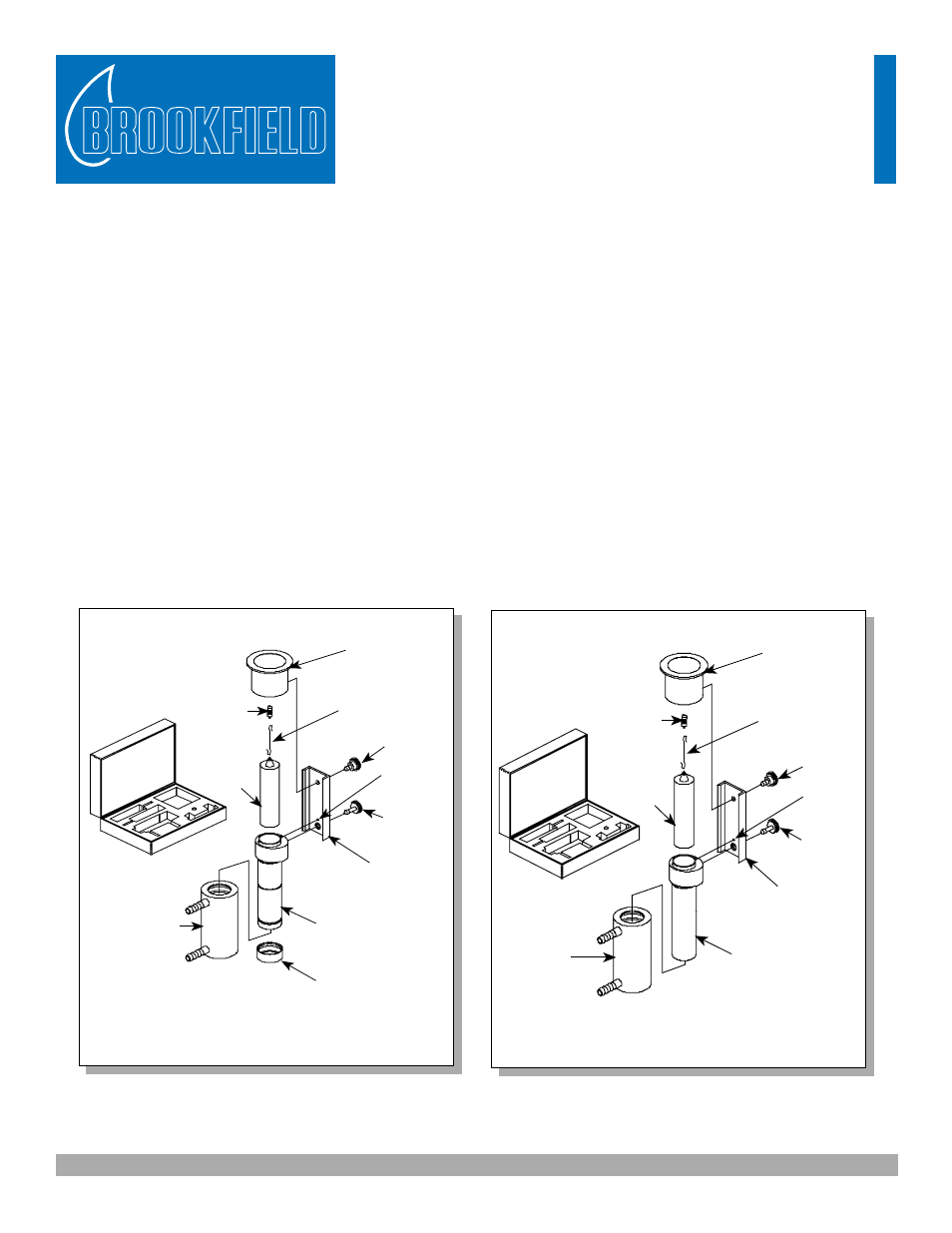

Figure 2: UL Adapter 316 s/s , Part No.ULA-ZY
Figure 1: UL Adapter 304 s/s, Part No. ULA-Y
The UL Adapter is a kit consisting of a spindle, a sample tube, mounting channel, water jacket, coupling nut,
extension link and six end caps. It is available in two versions: (1) with type 304 s/s wetted parts as pictured
in Figure 1; (2) with 316 s/s wetted parts as pictured in Figure 2. All versions are shipped with the water jacket
(ULA-40Y) mounted on the sample tube.
The type 304 s/s* UL Adapter may be used as an “open tube” or “closed tube” system. In the “open tube”
method, the water jacket (ULA-40Y) must be removed, allowing measurement in a beaker or other suitable
vessel. In the “closed tube” method, the sample is poured into the sample tube. The closed tube may be
temperature controlled with the use of the water jacket.
The 316 s/s** UL Adapter is available only in the “closed tube” system. The closed tube system may be
temperature controlled with the use of the water jacket or the sample tube may be immersed into a temperature
bath.
ULA-40Y Water
Jacket
ULA-34
Tube
End Cap
ULA-26Y
Locating
Channel Assembly
ULA-31Y
Sample
Tube
ULA-28
Mounting
Screw
HT-99
Mounting
Screw
SXV-8
Extension
Link
ULA-23A
Coupling
Nut
YULA-15
ULA
Spindle
ULA-36Y Case
Pivot Cup
mounted to
laboratory
viscometer base
Locating
Pin
ULA-40Y Water
Jacket
ULA-26Y
Locating
Channel Assembly
ULA-35YZ
Sample
Tube
(closed tube)
ULA-28
Mounting
Screw
HT-99
Mounting
Screw
SXV-8
Extension
Link
ULA-23A
Coupling
Nut
ULA-36Y Case
Pivot Cup
mounted to
laboratory
viscometer base
YULA-15Z
ULA
Spindle
Locating
Pin
*304 s/s denotes wetted parts are 304 stainless steel suitable for most general purpose applications.
**316 s/s denotes wetted parts are 316 stainless steel for use with corrosive acidic applications.
