BROOKFIELD THERMOSEL WITH DV-II+PRO VISCOMETER, EZ LOCK

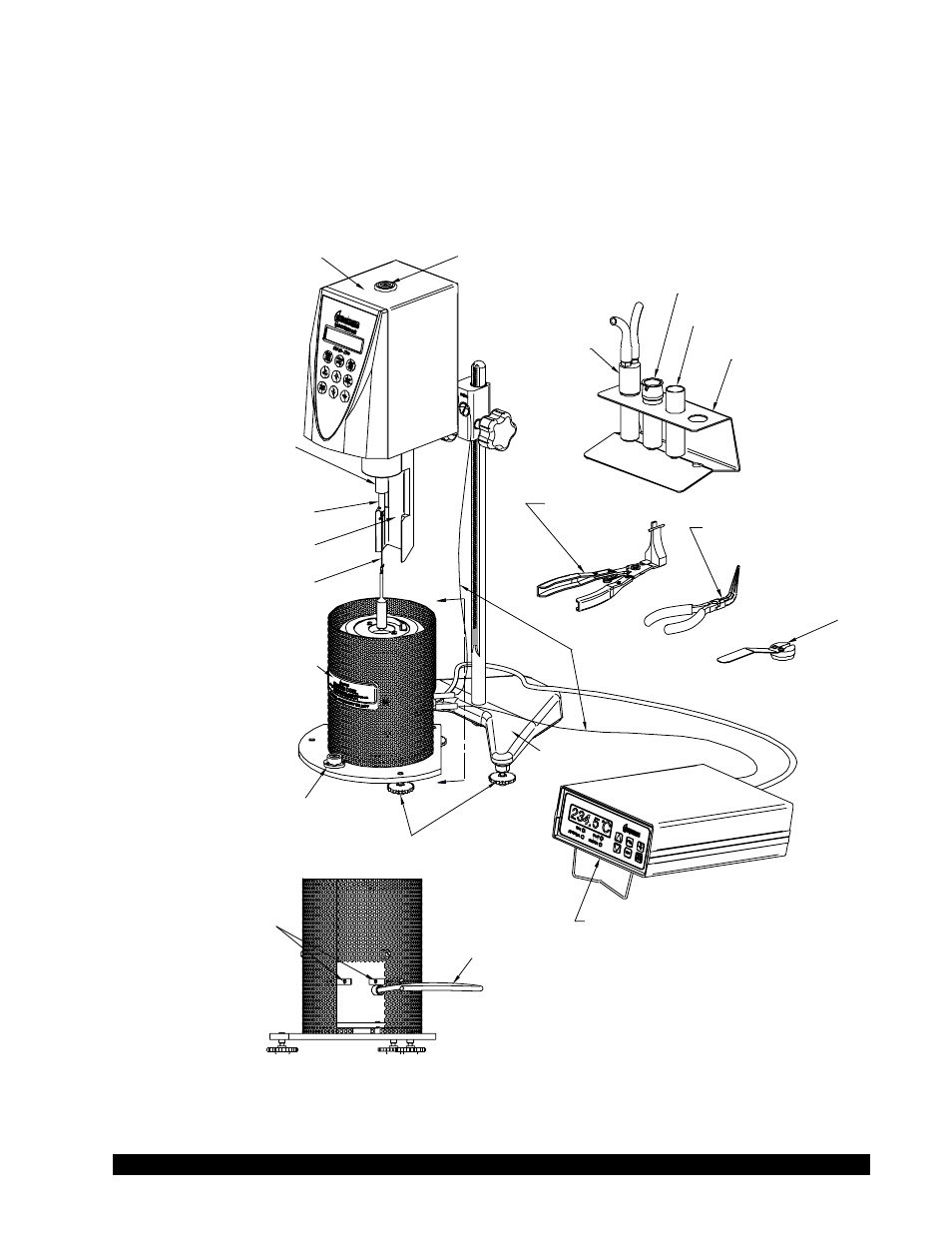

Figure 1
EZ LOCK SPINDLE
COUPLING
ADAPTER S-23K
EZ LOCK
COUPLING
ALIGNMENT BRACKET
HT-69KY
SPINDLE EXTENSION
SXV-24
BROOKFIELD
VISCOMETER
BUBBLE LEVEL
LEVELING SCREWS
(VS-3)
BASE
VS-1 or VS-2
THERMO CONTAINER
DUAL PROBE
HT-60 DP (110 VOLT)
HT-60 220 DP (220 VOLT)
TEMP. PROBES (INSERTED
IN THERMO CONTAINER)
DVP-94Y
INSULATING CAP
HT-67Y
EXTRACTOR PLIERS
(DISPOSABLE CHAMBERS)
HT-116
EXTRACTING TOOL
HT-59
SAMPLE CHAMBER
HOLDER
HT-54
DISPOSABLE SAMPLE CHAMBER
HT-2D
SAMPLE CHAMBER
HT-2
OPTIONAL
COOLING
PLUG ASSEMBLY
HT-26Y
BUBBLE LEVEL
A
A
DUAL
TEMPERATURE
PROBE
INLETS
(REAR VIEW)
VIEW “A-A”
THERMO CONTAINER
TO CONTROLLER CORD
TEMPERATURE CONTROLLER
BROOKFIELD THERMOSEL WITH DV-II+PRO VISCOMETER, EZ LOCK
