Brookfield Engineering Laboratories, Inc. - 2 - Manual No. M09-091-A0912
Removable Sample Chamber with embedded RTD
Temperature Probe and Connector Cable
(Part No. SC4-**RPY)
Pivot Cup
S-23K
Spindle Coupling
Adapter Assembly
SXV-9
Extension Link
SC4-53
Insulating Cap
SC4-**
Cylindrical Spindle
Top Plate
Pin
SC4-45Y
Water Jacket
Assembly
SC4-**R
Sample
Chamber
Locating
Pin
Outlet Fitting †
Inlet Fitting †
† Inlet and Outlet Fittings are bonded in
place. Do not wrench them or the water
jacket will become damaged.
SC4-46KY
Locating Channel
Bracket
HT-99
Locating Channel
Mounting Screws (2)

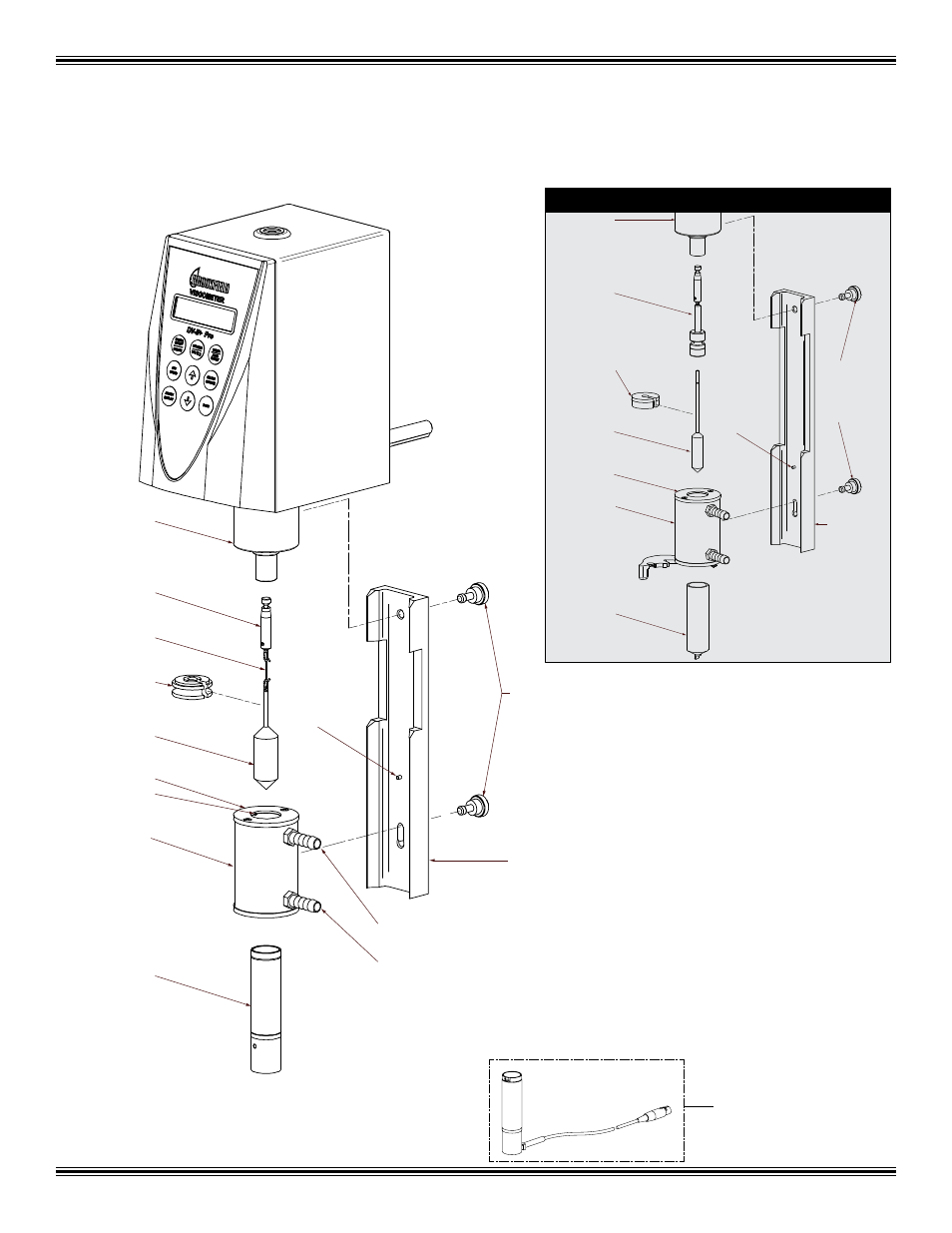

Small Sample Adapter
for use with EZ-Lock Instruments
(shown with DV-II+Pro Viscometer - similar assembly on
Dial, DV-E, DV-I Prime and DVIII+/DV-III Ultra Viscometers/Rheometers)
SSA with EZ-Lock and Disposable Parts
Pivot Cup
SC4-DSKY
Chuck &
Closer
Assembly
SC4-53D
Disposable
Insulating
Cap
SC4-27D
Disposable
Spindle
Top Plate
SC4-45YD
Disposable
Water Jacket
Assembly
SC4-13RD
Disposable
Sample
Chamber
Locating
Pin
HT-99
Locating
Channel
Mounting
Screws (2)
SC4-46DKY
Disposable
Locating
Channel
Bracket
