Brookfield Engineering Labs., Inc. Page Manual No. M09-352-B04
50°
60° 70° DIN
1
3
5
7
4
6
9
2
14
10
15
22
8
11
12
13

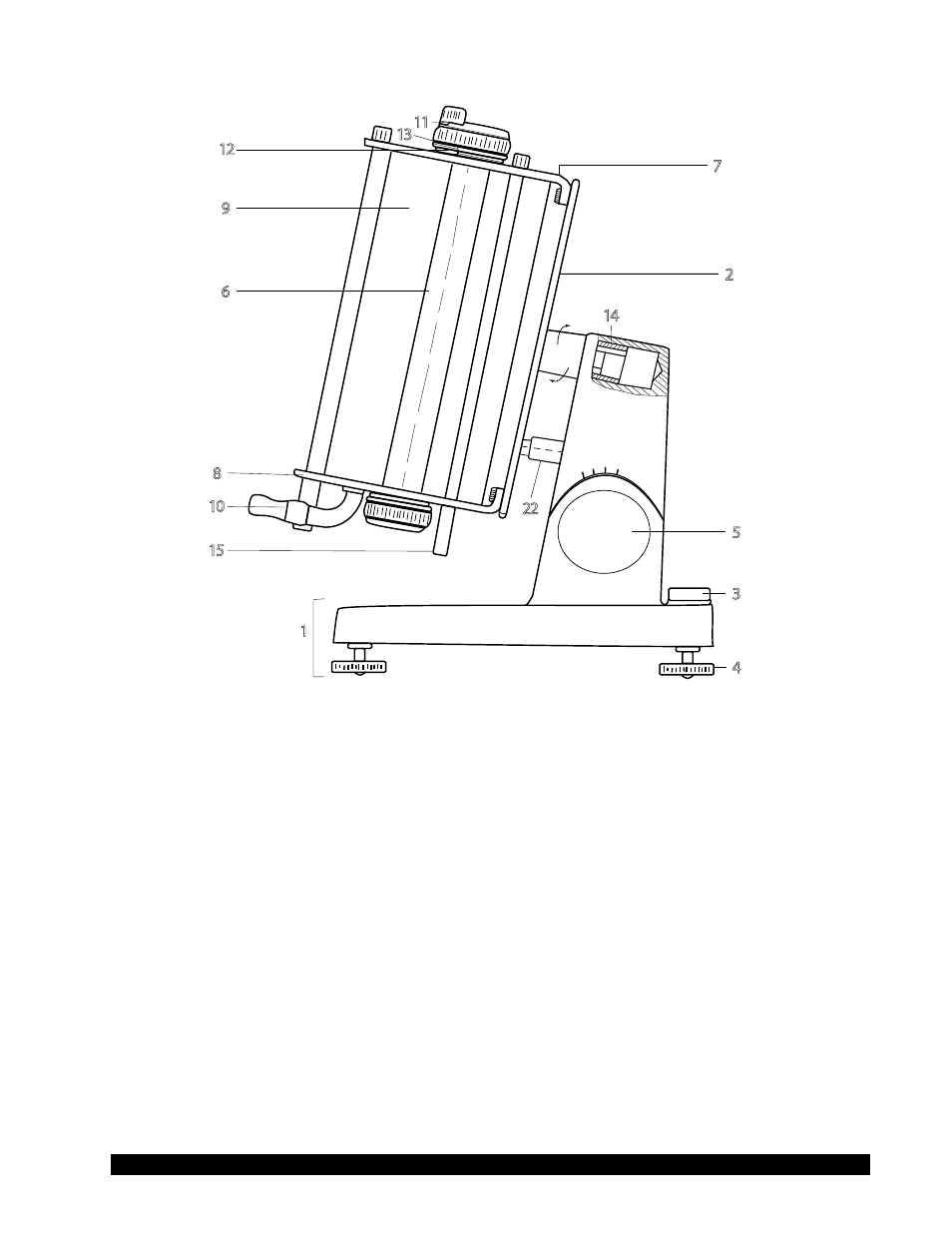

Figure 2: Falling Ball Viscometer KF10
1. Stand
2. Viscometer
13. Sealing washer
3. Bubble level 14. Bearing for viscometer rotation
4. Leveling screw 15. Nuts
5. Adjustment screw for angle (KF20 only) 16. Upper locking plug
6. Sample tube 17. Lower locking plug
7. Upper plate 18. Cap
8. Lower plate 19. Seal
9. Water jacket 20. Lid
10. Tubes for connection to water bath 21. Falling tube screw fitting
11. Fastening screw for thermometer
12. Screw neck 22. Stop to hold viscometer in position
