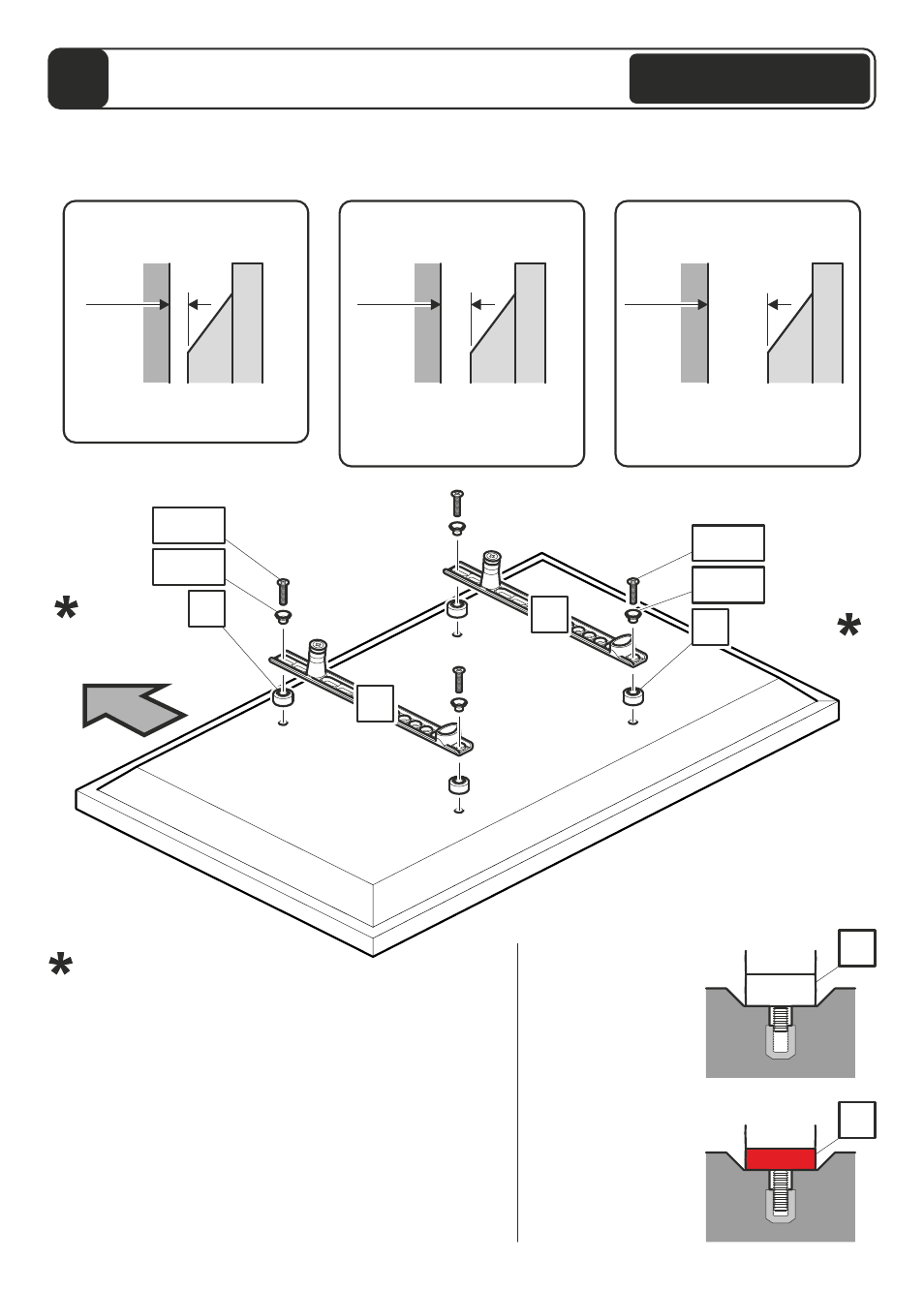

Fit Tilt Brackets to TV
12
Once you have established which screw diameter you need for your TV you will need to choose
which wall spacing you require. Check the back of your TV and use the
OPTION that fits your TV.
Please see page opposite for more details.
OPTION 1
12mm Wall Space
OPTION 2
20mm Wall Space
OPTION 3
40mm Wall Space
Suitable for TVs with a flat
back and no obstructions
Suitable for TVs with small
to medium obstructions eg
power supply, mouldings etc
Suitable for TVs with large
obstructions eg power
supply, mouldings etc
12mm 20mm 40mm
TV TV TV
It is recommended that when fitting Tilt Brackets W to
your TV you have at least 5-10mm of screw
engagement. In certain circumstances you may
need to use red spacers E2 as either a replacement,
or together with spacers E1 to achieve this. Whenever
you use red spacers E2 you must use all 4 provided.
Bottom Fixings
If required
Top Fixings
F
1
-F
3
G
1
- G
12
If required
G
1
- G
12
If required F
1
-F
3
If required E
1
Top
E
1
Tilt Position only
W
W
E
2
TV
TV
Problem
Not enough screw
engagement
Solution
Red spacer
has replaced
spacer
E2
E1
E
1
In certain circumstances it may be necessary to use
red spacer E2 as either a replacement or addition to
spacer E1.
When is it necessary to use red spacers E2?
