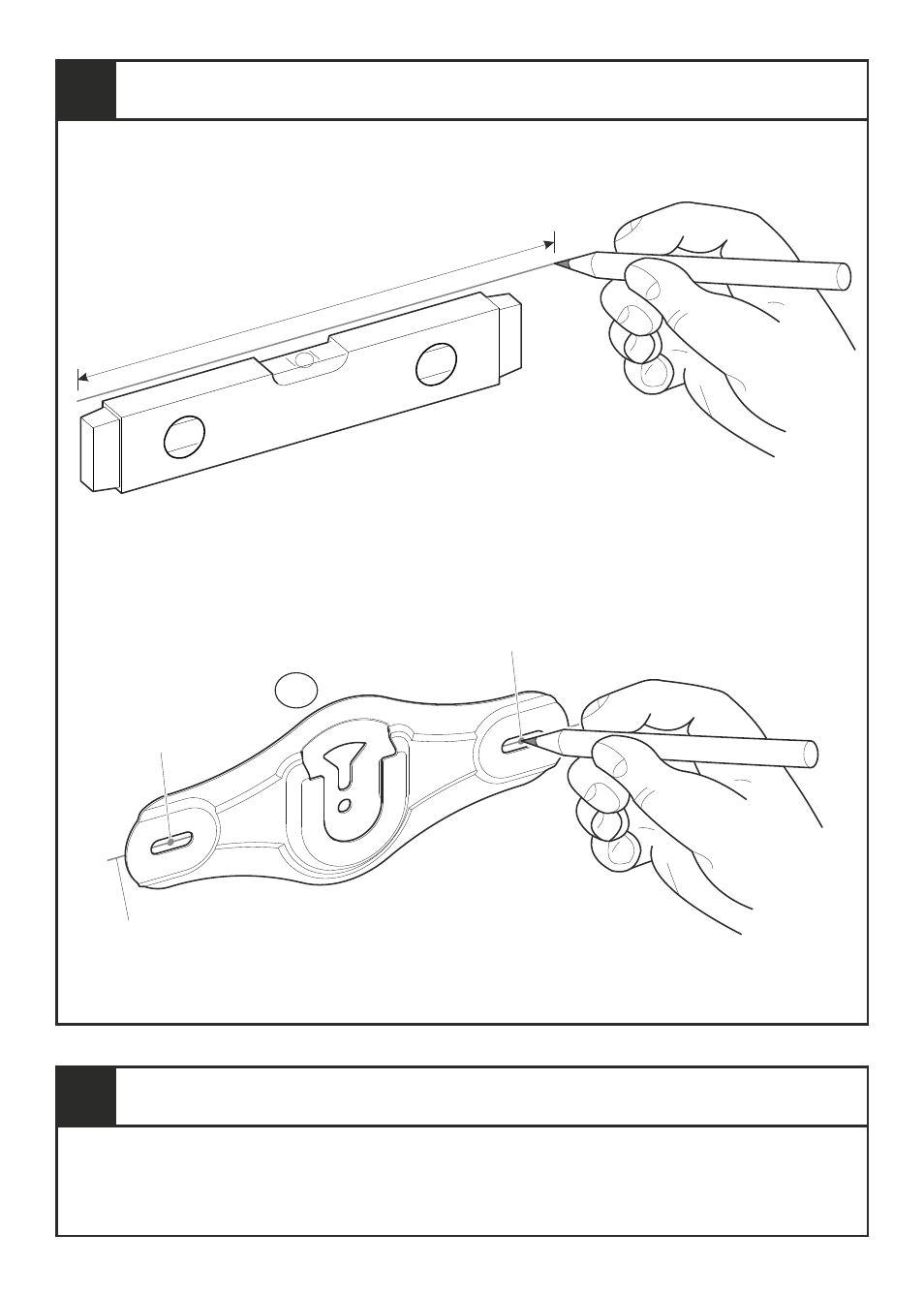

Marking Wall For Drill Points

Use the Wall Bracket (A) as a template and
position it on your wall. Ensure the bracket
lines up with the line you have previously
drawn and mark the two DRILL POINTS
with a pencil.

6

Planning & Preparation

Determine the wall type that you have (i.e. Brick/Stud/Plasterboard/Sheetrock).
Ensure the drilling area is free from mains services (Gas/Electric/Water).
Drill two 3mm diameter pilot holes to verify the wall type and select the appropriate fixings
(See Section 7).

Drill point

A

Decide the position of your wall bracket
and using a pencil lightly draw a straight,
level line approx 220mm long.

approx

220mm

Pencil Line

Drill point
