Fit Tilt Brackets to TV 11

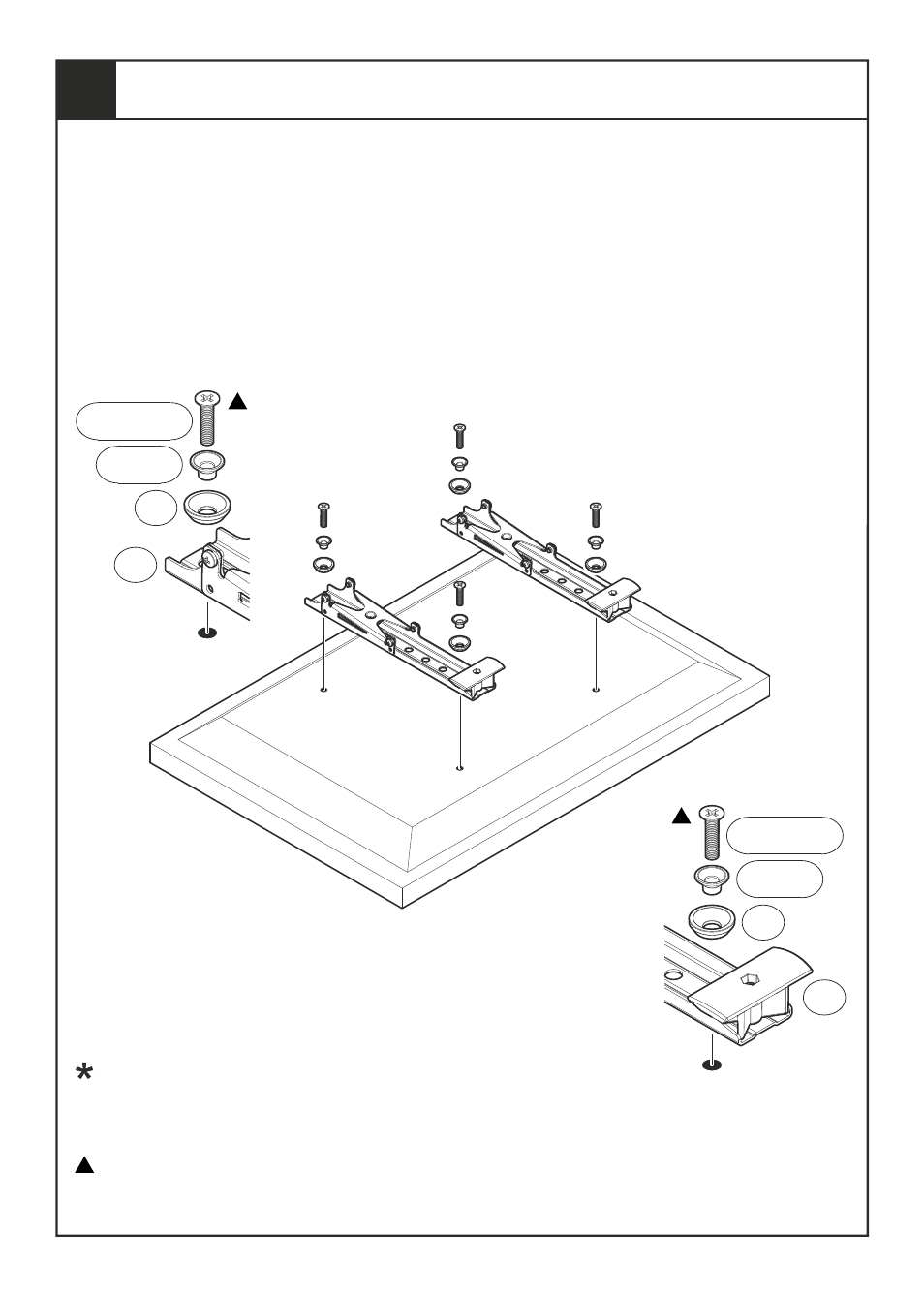

Once you have established which screws you need for your TV you can attach Tilt brackets (Q) to
the back of your TV.
Example shown below is only for TV’s with a flat back. Should you require more space for cables
and to improve access and ventilation to the back of your TV you will need to add spacers (
),
see section 17.
In certain circumstances it may be necessary to use red spacer ( ) in addition to the fixings
below, for more information see section 17.
If your TV fixing centres don’t fit, STOP installation and contact the customer services helpline.
D1
D2
Top Fixings
F
1, 5 ,9, 13
E
1, 2, 3
P
*
Q
Bottom Fixings
F
1, 5 ,9, 13
E
1, 2, 3
P
*
Q
Use adapter with screws (E
1
) (F
1
)
Use adapter (E
2
) with screws (F
5
)
Use adapter (E
3
) with screws (F
9
)
No adapter required with screws (F
13
)
If you use screw for top fixing you must use screw F
1
F
1
for bottom fixing
If you use screw F
5
for top fixing you must use screw F
5
for bottom fixing
If you use screw F
9
for top fixing you must use screw F
9
for bottom fixing
If you use screw F
13
for top fixing you must use screw F
13
for bottom fixing
