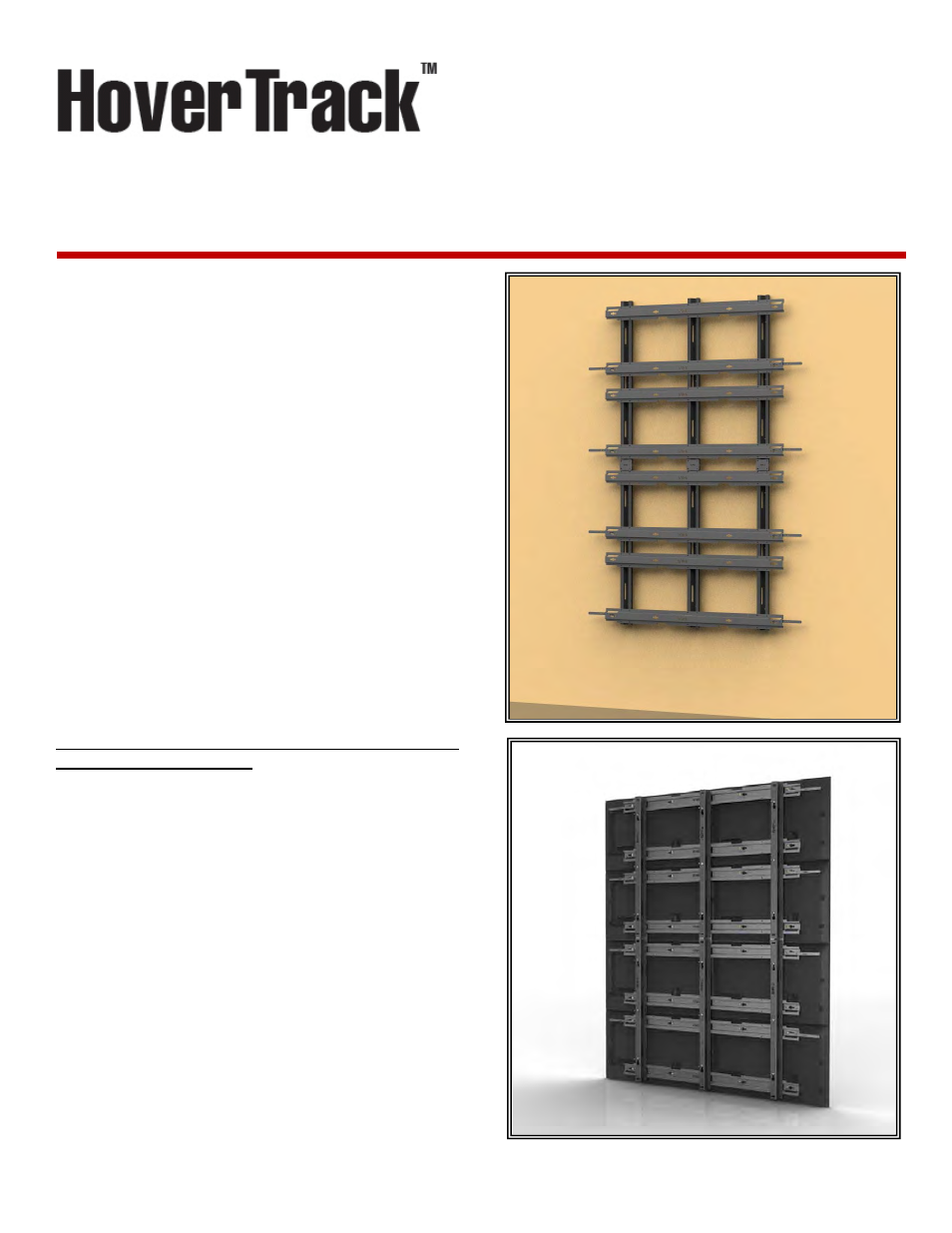

2X4-UE46A-VWD

2 Wide x 4 Deep Video Wall Display Installation Guide

This display kit mounts the Samsung UE46A LCD monitors in a 4
wide by 2 deep landscape configurations. The frame attaches to a wall
and receives the LCD monitors by way of four machined fittings (per
monitor) that thread into the monitor’s VESA holes. These fittings then
insert into the frame’s channels. The monitor’s fittings secure to the
frame with locking arms that provide an easy way to remove the
monitors for service.

Important: Installing video displays is a serious endeavor that
requires experienced professionals. Improperly prepared walls and

other structures as well as the equipment being installed can

result in property damage, injury, death and/or liability to the
installing contractor. Do not proceed if any part of the installation is
in doubt.

Caution: Due to the wide variety of structures, environments,
materials and installation methods, the installing contractor must
exercise good judgment in selecting the proper mounting area. The
mounting structure must be capable of supporting at least 5 times the
load of the installed equipment. Consult local building codes for further
guidance.

For a flat mounting surface and adequate support , ALWAYS

install a ¾” backing plywood.

Follow these instructions for the most efficient and safest

mounting results.

Package Contents:
1 pc

Frame Assembly w/ locking arms

32 pcs M8 Adjustable VESA button (black)
18 pcs Adjustable Lag bolts, 5/16”x1.5” long
18 pcs Hex nuts, 5/16”
18 pcs Flat washer, 5/16
1 pc

Installation guide sheet

Notes:
Hardware to mount frames to wall is included.
