Power Supply
Robokop tabletop-version:
The Robokop tabletop-version should only be used with the supplied AC
Adapter (12VAC/min. 300mA). Do not use other AC adapters!

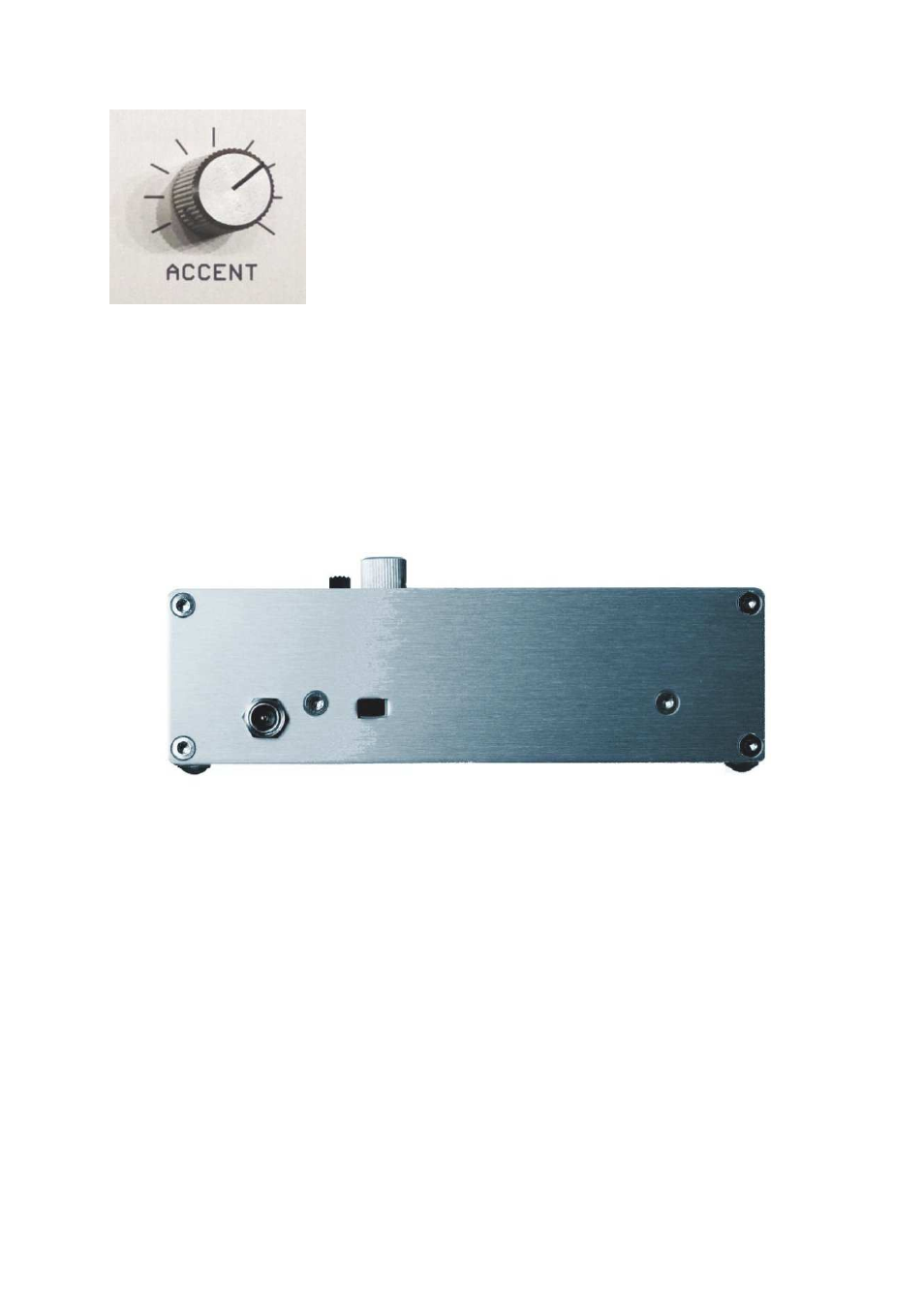

The Robokop tabletop-version has an On/Off slide switch on the left side
panel.
Replacement AC Adapters can be ordered from acidlab.de .
AC-Adaptors are available as EU-, UK- or US-version.
Robokop modular-version:
The Robokop modular version has to be connected with the delivered 2x8 or
2x10 ribbon-cable to the +/-12V-powerbus (e.g. Doepfer).
The lowerpin is connected to the -12V.
The secound 2x8 multi-pin-connector on the PCB-board can be used for a
flying-bus-wiring.
It is not necessary to supply the Robokop with a +5V.
The Robokop gererates a +5V out of the connected +12V.
The maximum supply current is +12V/80mA and -12V/20mA.
