Outputs

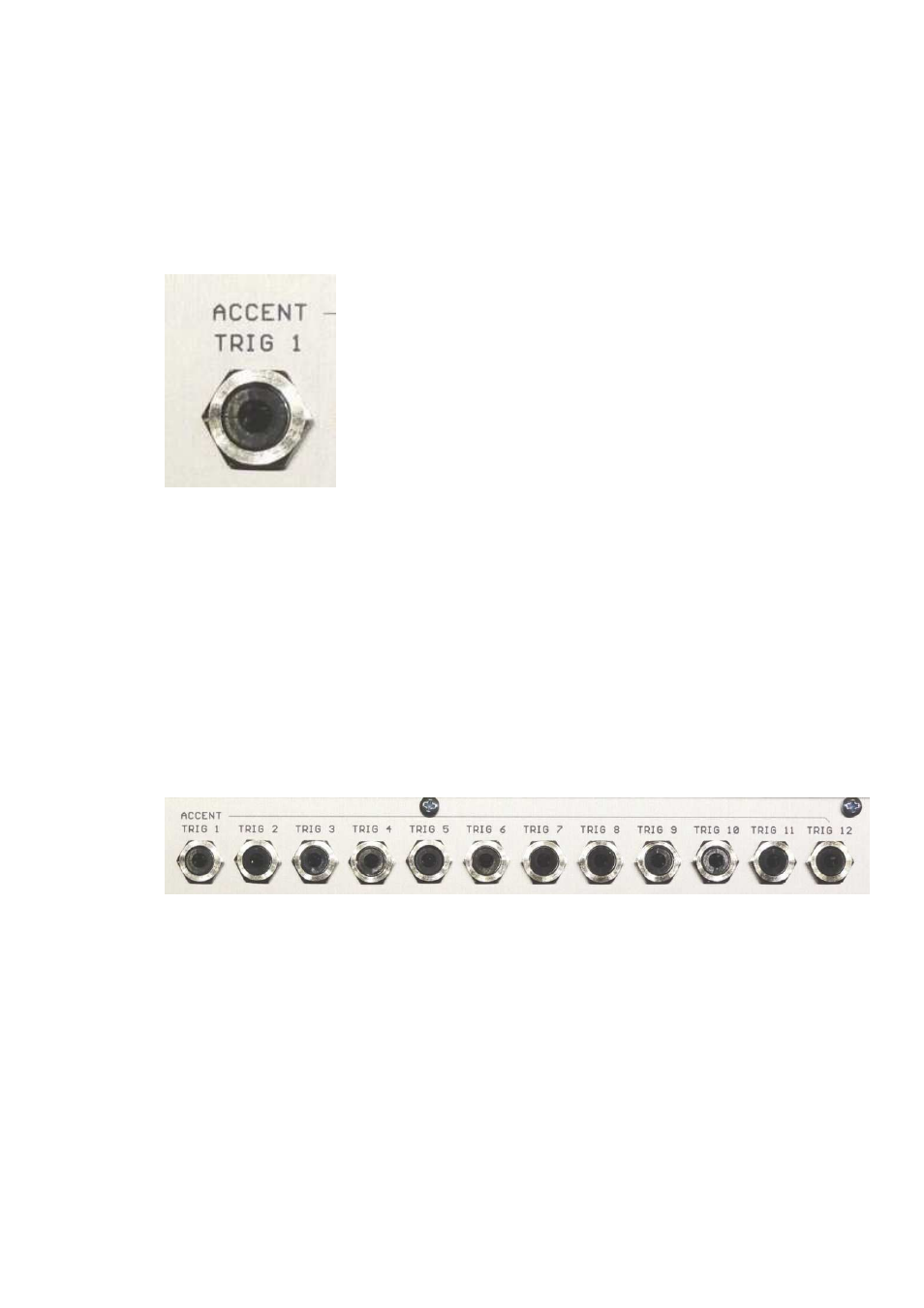

Accent Out:
The Accent-/Trig1 Out (3.5 mm mono) is used as a Accent-trigger or Gate
signal. The output is a fixed +12v impulse with a duration of 20ms.
The Accent-/Trig1 Out is primarily intended to be used to control a Trigger- or
Accent In of any drum-module or gate-/trigger input of an analog synthesizer,
or any other event in your modular system.
Trigger Outputs:
Each of the 11 trigger-outputs (Trig2, Trig3, …) can be accessed through one
of the 11 individual trigger-outs (3.5mm mono).
Every trigger-output varies its amplitude, that depends on the range of the
Accent knob and if there is an accent programmed on this step or not.
Every trigger-output without programmed Accent on this step has an amplitude
of 4,2 Volt, and the duration of the impulse is 10ms.
With programmed Accent on this step, the amplitude of this step will be rised
in the range of 4,2 Volt up to 11,5 Volt.
With this changing amplitude, connected drum-modules will be played
dynamically with the programmed Accent.
The amount of the programmed accent can be set with the Accent knob.
