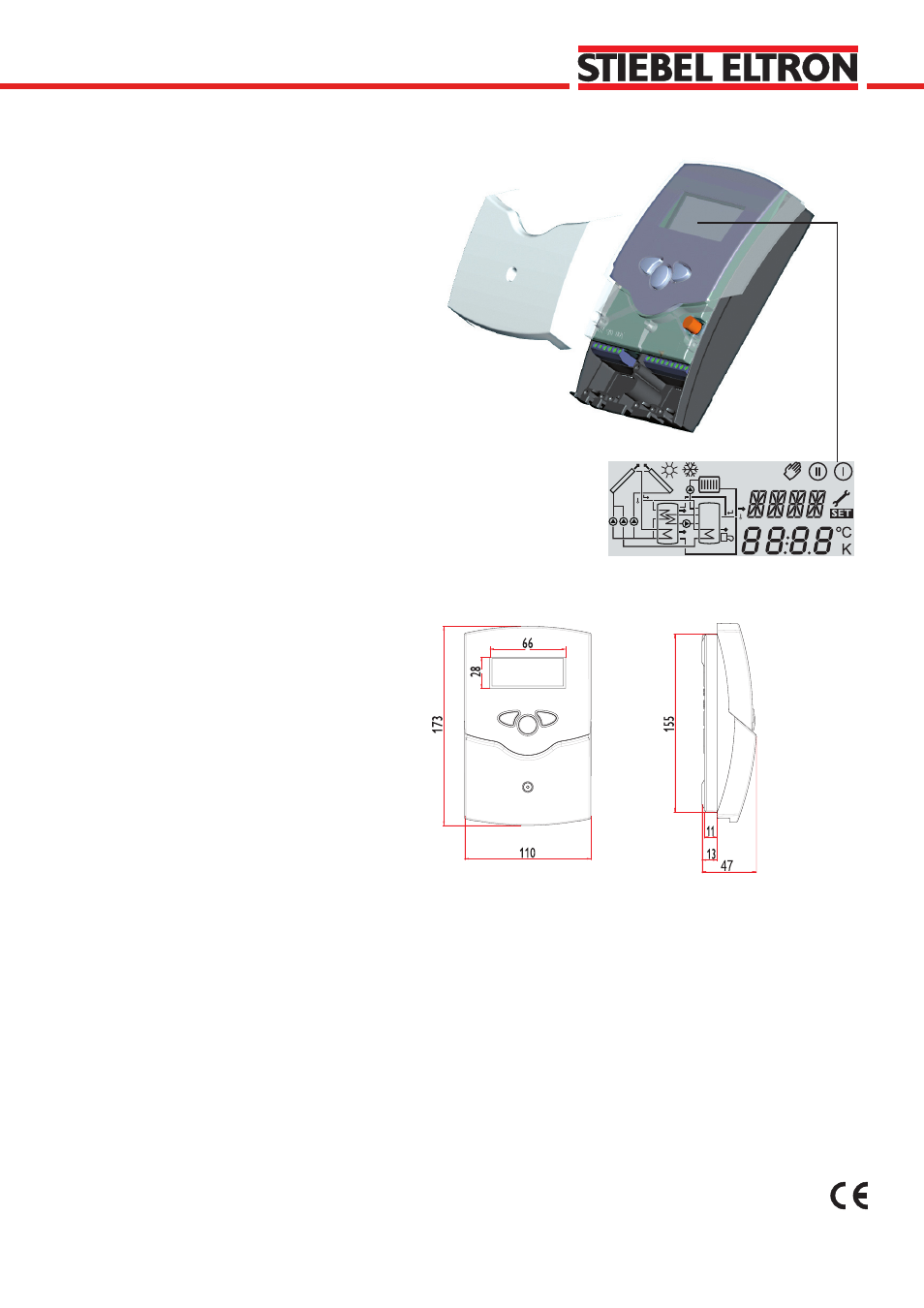

SOM 7 SI





• System Monitoring Display

• Up to 4 Temperature Sensors,

Pt1000

• 9 Selectable System Schemes

• Energy Production Measurement

• VBus

• Function Control

• Thermostat Function with Time

Control

• Service Center Software

Connectivity

• User-Friendly Operation

• Compact, Easy to Install Housing

Technical data
Housing:

plastic, PC-ABS and PMMA
Protection type: IP 20 / DIN 40050
Ambient temp.: 32 ... 104 °F
Size: 172 x 110 x 46 mm
Mounting: wall mounting, mounting
into patch-panels is possible
Display: System screen for sys-
tem visualisation, 16-segment display,
7-segment display, 8 symbols for system
status and operating control lamp

Operation: by 3 pushbuttons in the
front of the housing
Functions: Differential temperature
controller with optional add-on system
functions. Func ti on con trol according
to BAW-standards, operating hours
counter for solar pump, tube collector
special function, thermostat function
and heat quantity balancing.
Inputs: for 4 temperature sensors
Pt1000
Outputs: 2 electromechanical relays

Bus: VBus

Power supply:
120 VAC
Total power supply:

4 (2) A 120VAC

Scope of delivery:

1 x SOM 7 SI

1 x accessory bag

1 x spare fuse T4A
2 x screws and dowels
4 x strain relief and screws

Additionally enclosed in the full kit:

4 x sensor FKP6
