Char-Broil 463621611 User Manual
Page 19
5
6
19

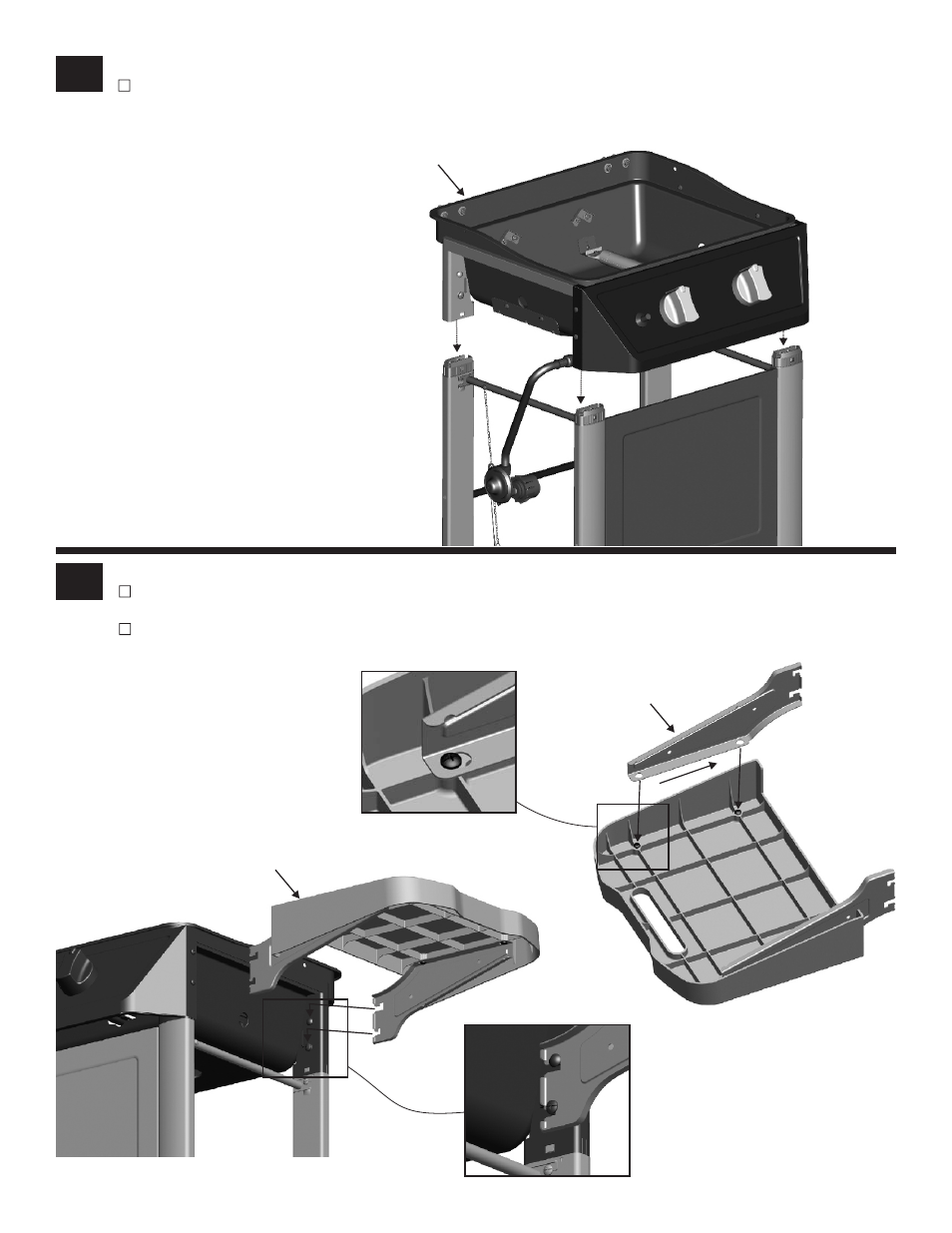

Firebox assembly
Lift and carefully position firebox assembly onto cart assembly, make sure the legs on firebox are aligned with the posts of
cart assembly. Push downward to attach the firebox assembly in position. Note: Regulator and hose should be outside of
Side Brace.
Firebox Assembly
Shelves
Place the side shelf brackets onto side shelf as shown. Pull the side shelf brackets to lock into the preassembled
#10-24x3/8” machine screws. Tighten the screws (A).
Lock the side shelf assemblies to the studs and preassembled #10-24x1/2” machine screws (large head) on
firebox. Tighten the screws (B).
A
B
Side Shelf Bracket
Side Shelf Assembly
