HANG5 RACK INSTRUCTIONS
ASSEMBLY OF HANG5 RACK
12
Insert the Lower Support Bar (1F) (1 inch square
tubing with two round notches) into one of the
Inner Pivot Plates (2A) and use 2 of the 4
8mm x 50mm bolts, washers and nuts (1J).
For the initial installation it may be necessary
to slightly wedge the two plates of the Inner
Pivot Plate (2A) assembly apart in order to
insert the Lower Support Bar(1F).
12

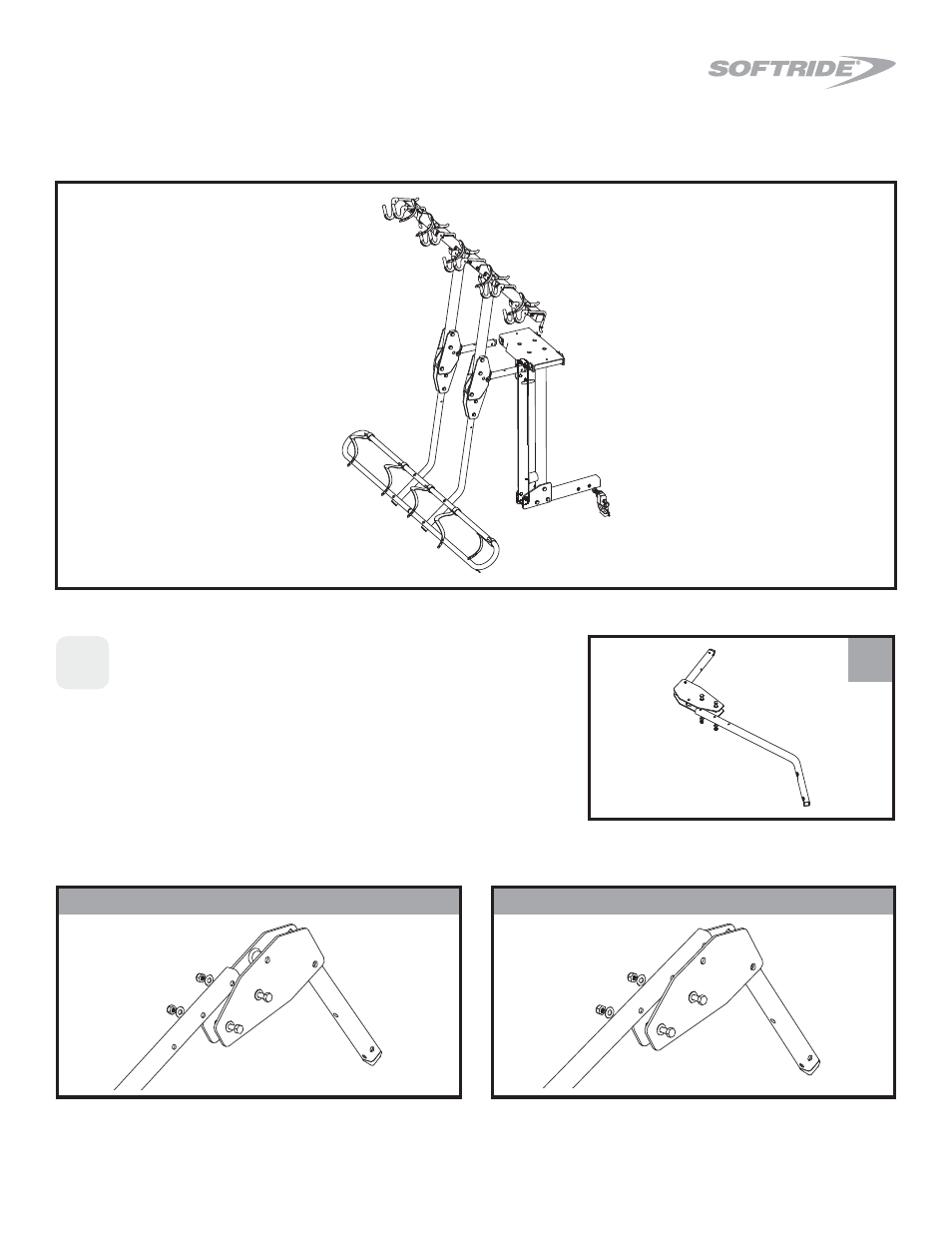

Fully Assembled Unit
Before tightening make sure that the Lower Support Bar is
installed in the Standard Wheelbase position:
Standard Compact
Tip: Utilize the additional hole in the rear Lower Support Bars(1F) to change the rack over to
Compact Wheelbase Position. This may be better for smaller bikes including some kid’s bikes and
BMX bikes. It is okay to use Standard sized bikes in the Compact Wheelbase Position.
